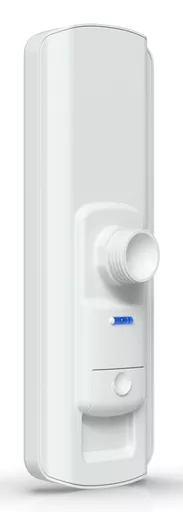

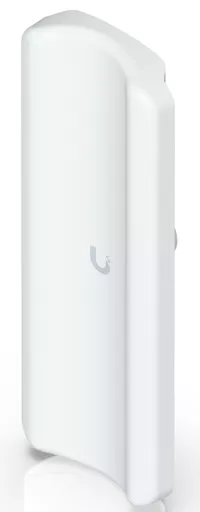

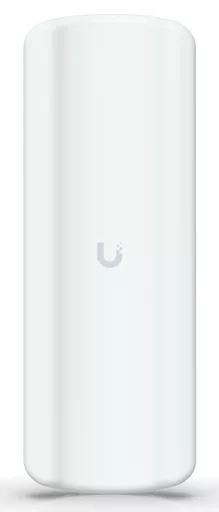

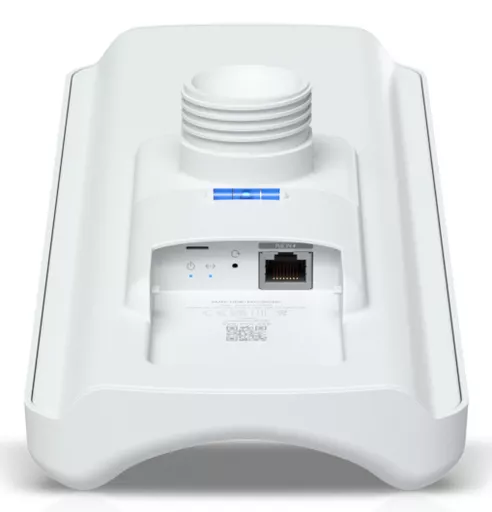

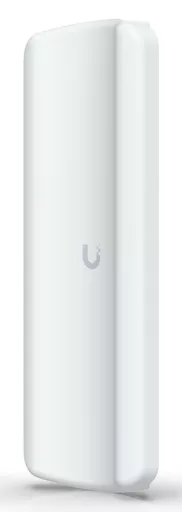

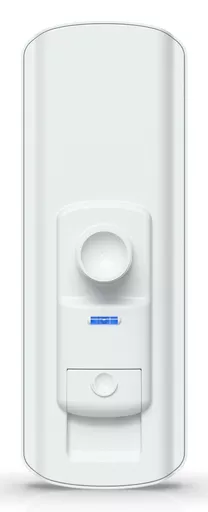

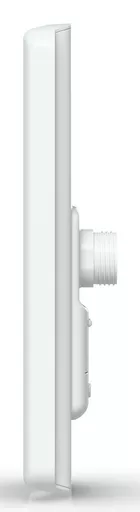

Ubiquiti Device Bridge Pro Sector Network bridge 400 Mbit/s White

SKU: UDB-Pro-Sector | Brand: Ubiquiti

0 in stock

£173.61 ex. VAT

Figures are exclusive of VAT.

5 GHz point-to-multipoint access point that wirelessly bridges 40+ Device Bridge Pro clients at 5+ km distances.

Data transmission
Maximum data transfer rate	400 Mbit/s
Maximum transfer distance	5000 m
Antenna
Antenna gain level (max)	17 dBi
Antenna design	Internal
Antenna type	2x2
Wireless LAN features
Signal strength	25 dBm
Antenna gain level (max)	17 dBi
Wi-Fi	Yes
Wi-Fi band	Single-band (5 GHz)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Antenna type	2x2
Network
Ethernet LAN	Yes
Ethernet LAN data rates	1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Ports & interfaces
Ethernet LAN	Yes
Connectivity technology	Wired & Wireless
Ethernet LAN (RJ-45) ports	1
Security
Security algorithms	WPA2-AES
Features
Product type	Network bridge
Material	Polycarbonate (PC)
Product colour	White
Reset button	Yes
International Protection (IP) code	IPX6
LED indicators	LAN, Power
Mounting type	Pole
Power
Power consumption (max)	6 W
Power source type	PoE
DC input voltage	42.5 - 57 V
Power over Ethernet (PoE)	Yes
Operational conditions
Operating temperature (T-T)	-40 - 60 °C
Operating relative humidity (H-H)	5 - 95%
Operating temperature (T-T)	-40 - 140 °F
Management features
LED indicators	LAN, Power
Certificates
Compliance certificates	CE, Federal Communications Commission (FCC), Industry Canada (IC)
Technical details
Material	Polycarbonate (PC)
Product colour	White
Operating temperature (T-T)	-40 - 140 °F
Quantity per pack	1 pc(s)
Compliance certificates	CE, Federal Communications Commission (FCC), Industry Canada (IC)
Weight & dimensions
Weight	782 g
Width	129.6 mm
Depth	71.4 mm
Height	360.9 mm
Packaging content
Manual	Yes
Packaging data
Quantity per pack	1 pc(s)
