SKU: BL121  |   Brand: be quiet!

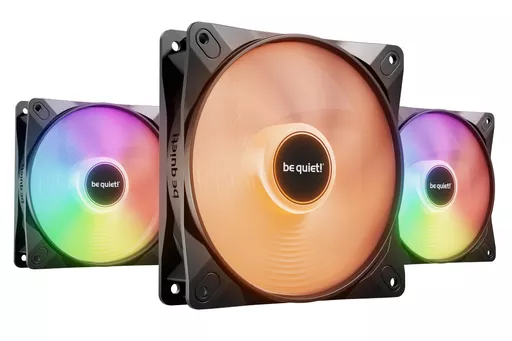

be quiet! LIGHT WINGS LX 120mm PWM 3-Pack Black Computer case Fan 12 cm 3 pc(s)

SKU: BL121  |   Brand: be quiet!

be quiet! LIGHT WINGS LX 120mm PWM 3-Pack Black Computer case Fan 12 cm 3 pc(s)

0 in stock

£33.23 ex. VAT

Figures are exclusive of VAT.



Great performance and impressive lighting
The Light Wings LX 120mm PWM Triple Pack boasts optimized fan blades and an illuminated impeller for great performance and lighting.

Suitable location computer case
Type Fan

Performance
Suitable locationComputer case
Fan connector4-pin
Pulse-width modulation (PWM) supportYes
Rotational speed (max)1600 RPM
Bearing typeRifle bearing
Noise level (high speed)25.5 dB
TypeFan
Fan diameter12 cm
Maximum airflow51.5 cfm
Maximum air pressure1.34 mmH2O
Airflow87.5 m³/h
Number of fans3 fan(s)
Mean time between failures (MTBF)60000 h
Quantity per pack3 pc(s)
Number of fan blades7
Design
Fan connector4-pin
Number of fans3 fan(s)
Illumination colourMulti
Product colourBlack
Cable length0.5 m
Illumination LEDYes
Number of LEDs16
Number of fan blades7
LED connector type3-pin
Technical details
Noise level (high speed)25.5 dB
TypeFan
Fan diameter12 cm
Maximum airflow51.5 cfm
Maximum air pressure1.34 mmH2O
Airflow87.5 m³/h
Number of fans3 fan(s)
Cable length0.5 m
Fan connector4-pin
Illumination LEDYes
Warranty period3 year(s)
Compliance certificatesCE, RoHS, UKCA, WEEE
Ports & interfaces
Fan connector4-pin
Power
Rated voltage12 V
Voltage5 - 13.2 V
Maximum current0.32 A
Fan power consumption3.8 W
Fan voltage12 V
Fan current0.1 A
Colour
Product colourBlack
Weight & dimensions
Fan dimensions (W x D x H)120 x 120 x 25 mm
Package depth164 mm
Package width122 mm
Package height80 mm
Fan weight133 g
Package weight470 g
Cable length0.5 m
Endurance
Mean time between failures (MTBF)60000 h
Packaging data
Package depth164 mm
Package width122 mm
Package height80 mm
Package weight470 g
Package typeBox
Indication
Illumination colourMulti
Packaging content
Screws includedYes
Number of screws12
Package typeBox
Logistics data
Shipping (inner) case width26.9 cm
Shipping (inner) case length42.8 cm
Shipping (inner) case height32 cm
Shipping (inner) case gross weight10.2 kg
Products per shipping (inner) case20 pc(s)
