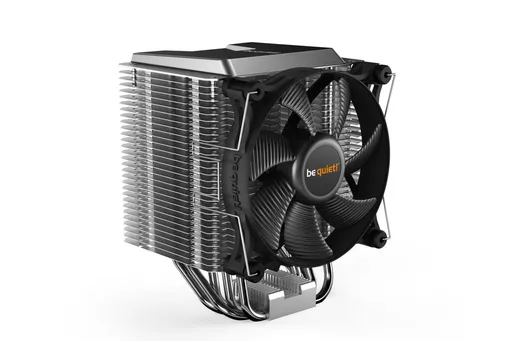

be quiet! Shadow Rock 3 CPU Cooler, Single 120mm PWM Fan, For Intel Socket:1700/1200 / 2066 / 1150 / 1151 / 1155 / 2011(-3) Square ILM, For AMD Socket: AM4 / AM3(+), 190W TDP, 163mm Height

SKU: BK004  |   Brand: be quiet!

be quiet! Shadow Rock 3 CPU Cooler, Single 120mm PWM Fan, For Intel Socket:1700/1200 / 2066 / 1150 / 1151 / 1155 / 2011(-3) Square ILM, For AMD Socket: AM4 / AM3(+), 190W TDP, 163mm Height

0 in stock

£38.64 ex. VAT

Figures are exclusive of VAT.



The be quiet! Shadow Rock 3 offers an impressive cooling performance of 190W TDP and silent operation. It is the perfect choice for design-oriented consumers who need performance beyond the standard for a good price.

Type cooler

Performance
Suitable locationProcessor
Fan connector4-pin
Rotational speed (max)1600 RPM
Number of fins30
Fins materialAluminium
Bearing typeRifle bearing
Mean time to failure (MTTF)80000 h
Thermal Design Power (TDP)190 W
Noise level (low speed)11.5 dB
Noise level (high speed)24.4 dB

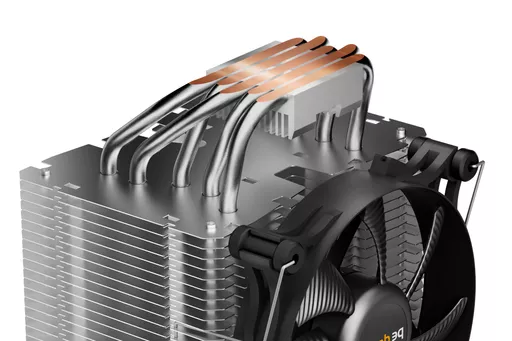

Number of heat pipes5
Heat pipes diameter6 mm
TypeCooler
Fan diameter12 cm
Supported processor socketsLGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1200 (Socket H5), LGA 1700, LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, Socket AM4, Socket AM5
Number of fans1 fan(s)
Design
Fan connector4-pin
Number of fins30
Fins materialAluminium
Number of heat pipes5
Number of fans1 fan(s)
Product colourBlack, Grey
Cable length0.22 m
Base plate materialCopper
Number of fans supported1
Technical details
Thermal Design Power (TDP)190 W
Noise level (low speed)11.5 dB
Noise level (high speed)24.4 dB
Number of heat pipes5
Heat pipes diameter6 mm
TypeCooler
Fan diameter12 cm
Supported processor socketsLGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1200 (Socket H5), LGA 1700, LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, Socket AM4, Socket AM5
Number of fans1 fan(s)
Cable length0.22 m
Products per pallet12 pc(s)
Fan connector4-pin
Ports & interfaces
Fan connector4-pin
Power
Rated voltage12 V
Thermal Design Power (TDP)190 W
Rated current0.2 A
Power supply2.4 W
Colour
Product colourBlack, Grey
Weight & dimensions
Fan dimensions (W x D x H)120 x 120 x 25 mm
Package depth161 mm
Package width145 mm
Package height200 mm
Heat pipes diameter6 mm
Width130 mm
Package weight1.18 kg
Depth121 mm
Height163 mm
Weight710 g
Heatsink dimensions (W x D x H)130 x 96 x 163 mm
Cable length0.22 m
Packaging data
Package depth161 mm
Package width145 mm
Package height200 mm
Package weight1.18 kg
Packaging content

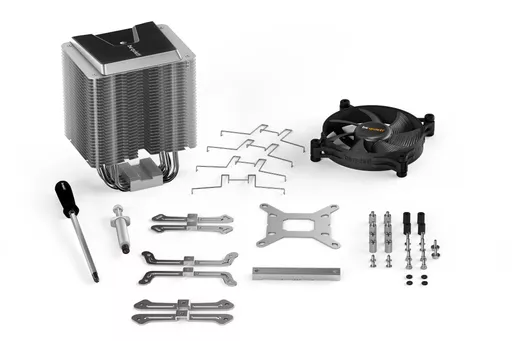

Mounting kitYes
Thermal greaseYes
Other features
Mean time to failure (MTTF)80000 h
Heatsink dimensions (W x D x H)130 x 96 x 163 mm
Products per pallet12 pc(s)
Thermal greaseYes
Number of fans supported1
Harmonized System (HS) code84733080
Logistics data
Master (outer) case gross weight15 kg
Master (outer) case width335 mm
Master (outer) case length451 mm
Master (outer) case height420 mm
Products per pallet12 pc(s)
Harmonized System (HS) code84733080
