SKU: TF1734MC-B7X  |   Brand: iiyama

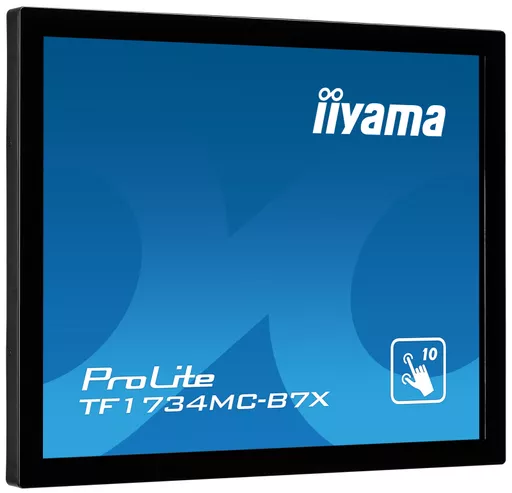

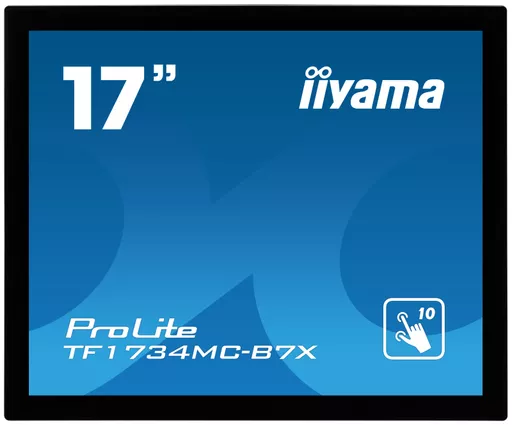

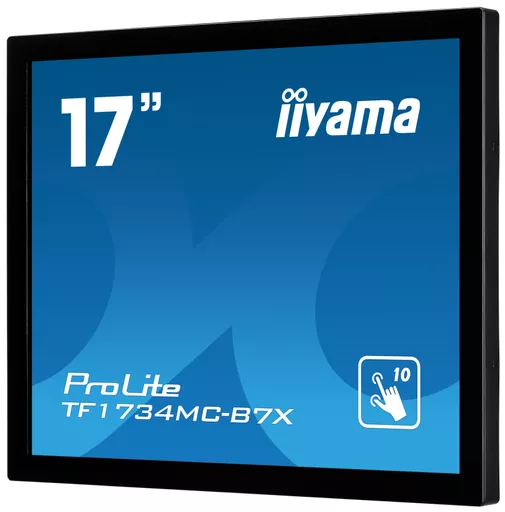

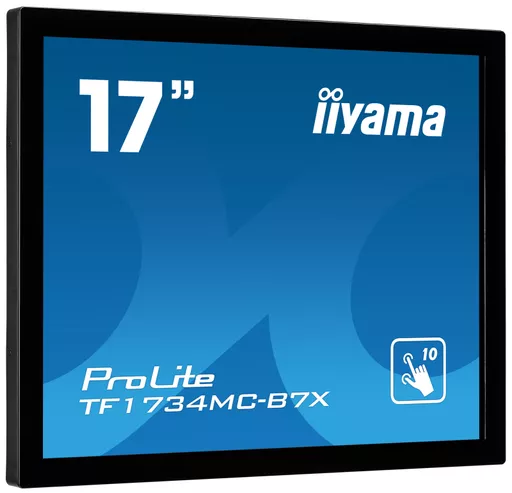

iiyama 17’’ 10pt touch Open Frame monitor with Touch Through-Glass function

SKU: TF1734MC-B7X  |   Brand: iiyama

iiyama 17’’ 10pt touch Open Frame monitor with Touch Through-Glass function

0 in stock

£360.36 ex. VAT

Figures are exclusive of VAT.

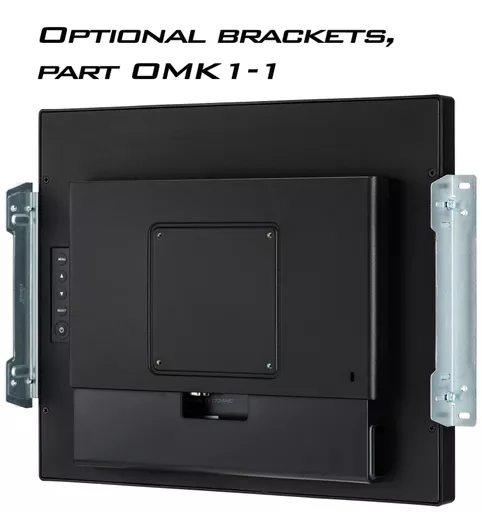

The ProLite TF1734MC-B7X uses 10 pt Projective Capacitive touch technology built into an eye catching bezel with edge-to-edge glass, which guarantees high durability, scratch-resistance and perfect picture performance. The screen is IP65 rated which means it is dust and water resistant from the front. Together with the Touch-Through-Glass technology which delivers a seamless and accurate touch response, this makes the monitor an ideal solution for kiosk integrators, Instore Retail and behind-glass-retail. For ease of integration, the monitor can be equipped with optional external mounting brackets ( OMK1-1 ).

Display diagonal under 18 inches
Built-in camera N
Display resolution 1280 x 1024 pixels
Product colour Black
Native aspect ratio 5:4
Display technology LED
VESA mounting Y
NVIDIA G-SYNC N
Touchscreen Y
AMD FreeSync N
Weight 4,900.00kg

Display
HDCPYes
Display brightness (typical)350 cd/m²
Screen shapeFlat
Display number of colours16.7 million colours
Native aspect ratio5:4
HD typeSXGA
Display technologyLED
Viewing angle, horizontal170°
Viewing angle, vertical160°
Pixel pitch0.264 x 0.264 mm
Horizontal scan range31.4 - 80 kHz
Aspect ratio5:4
Viewable size, horizontal33.8 cm
Viewable size, vertical27.1 cm
Viewable size diagonal43 cm
Supported graphics resolutions1280 x 1024 (SXGA)
Supported video modes1024p
Display resolution1280 x 1024 pixels
Response time5 ms
Display diagonal43.2 cm (17")
Contrast ratio (typical)1000:1
TouchscreenYes
Number of simultaneous touchpoints10
Panel typeTN
Colour depth8 bit
Display diagonal (metric)43 cm
Touch technologyMulti-touch
Touchscreen technologyProjected capacitive system
Display brightness350 cd/m²
Performance
Built-in microphoneNo
Built-in cameraNo
AMD FreeSyncNo
NVIDIA G-SYNCNo
Management features
On Screen Display (OSD)Yes
Number of OSD languages7
On Screen Display (OSD) languagesSimplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese
Plug and PlayYes
Multimedia
Built-in microphoneNo
Built-in cameraNo
Design
CertificationCE, EAC, RoHS support, ErP, WEEE, cULus, REACH
Product colourBlack
Front bezel colourBlack
International Protection (IP) codeIP65
Glass thickness3 mm
Camera
Built-in cameraNo

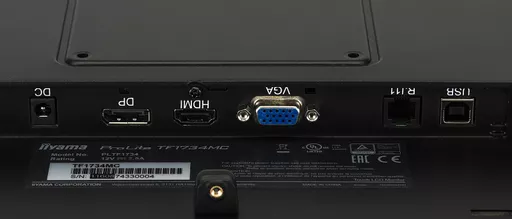

Ports & interfaces
VGA (D-Sub) ports quantity1
HDMI ports quantity1
DisplayPorts quantity1
HDCPYes
HDMIYes
USB requiredYes
USB Touch ports quantity1
USB Touch portYes
Technical details
Height (without stand)307 mm
Depth (without stand)47.5 mm
Width (without stand)369 mm
Placement supportedHorizontal/Vertical
HDMIYes
Display viewable area (HxV)338 x 270 mm
Built-in microphoneNo
Product colourBlack
Front bezel colourBlack
Power supply typeExternal
Weight (with stand)3.6 kg
TouchscreenYes
Number of simultaneous touchpoints10
Ergonomics

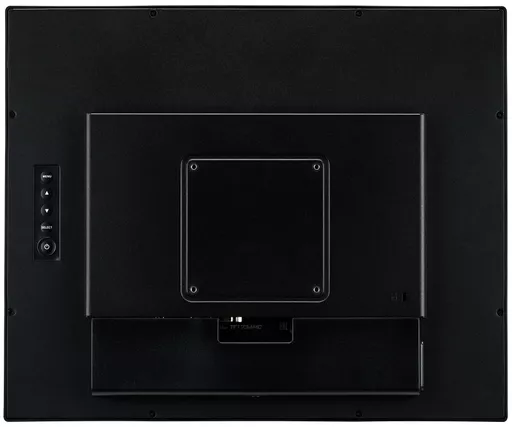

VESA mountingYes
Panel mounting interface100 x 100 mm
On Screen Display (OSD)Yes
Number of OSD languages7
On Screen Display (OSD) languagesSimplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese
Plug and PlayYes
Power
Power supply typeExternal
Power consumption (standby)1.5 W
Power consumption (typical)13 W
Power consumption (off)0.3 W
Energy efficiency scaleA to G
AC adapter output voltage12 V
Energy efficiency class (SDR)E
Energy consumption (SDR) per 1000 hours11 kWh
Weight & dimensions
Height (without stand)307 mm
Depth (without stand)47.5 mm
Width (without stand)369 mm
Width (with stand)369 mm
Depth (with stand)47.5 mm
Height (with stand)307 mm
Weight (with stand)3.6 kg
Weight (without stand)3.6 kg
Package width455 mm
Package depth455 mm
Package height387 mm
Package weight4.9 kg
Packaging data
Package width455 mm
Package depth455 mm
Package height387 mm
Package weight4.9 kg
Quick start guideYes

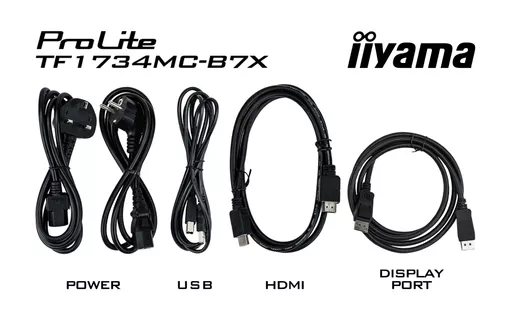

Cables includedAC, DisplayPort, HDMI, USB
Packaging content
Quick start guideYes
Cables includedAC, DisplayPort, HDMI, USB
Other features
Placement supportedHorizontal/Vertical
Display viewable area (HxV)338 x 270 mm
Connection to PCYes
CertificationCE, EAC, RoHS support, ErP, WEEE, cULus, REACH
International Protection (IP) codeIP65
Height (without stand)307 mm
Depth (without stand)47.5 mm
Width (without stand)369 mm
Quick start guideYes
HDMIYes
Energy efficiency scaleA to G
Power supply typeExternal
TouchscreenYes
Number of simultaneous touchpoints10
Front bezel colourBlack
Certificates
CertificationCE, EAC, RoHS support, ErP, WEEE, cULus, REACH
Logistics data
Harmonized System (HS) code85285210
