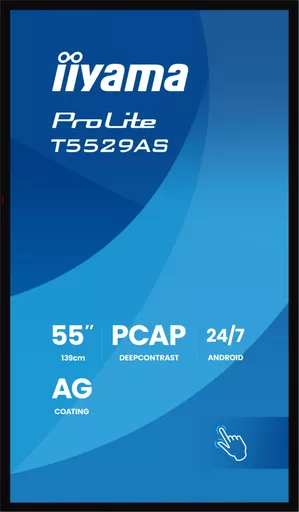

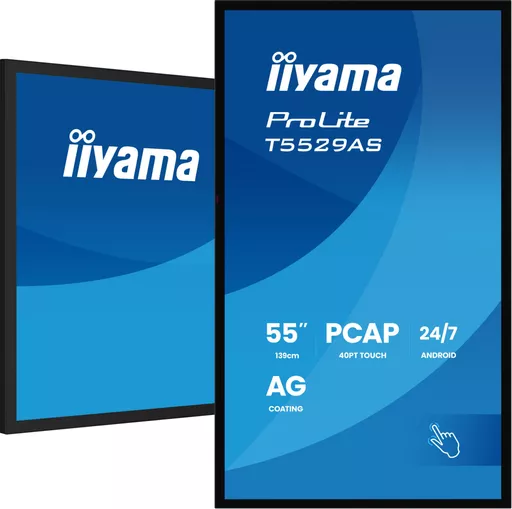

iiyama 55" All-in-One PCAP Interactive Display for Smart Collaboration Spaces

SKU: T5529AS-B1AG | Brand: iiyama

iiyama 55" All-in-One PCAP Interactive Display for Smart Collaboration Spaces

0 in stock

£1,295.68 ex. VAT

Figures are exclusive of VAT.

+ Description

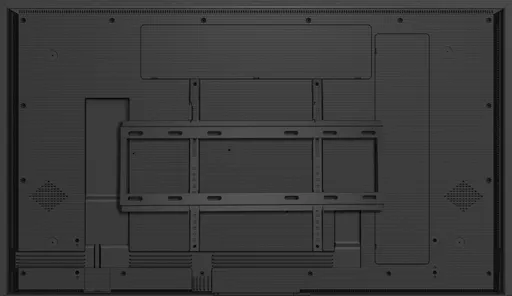

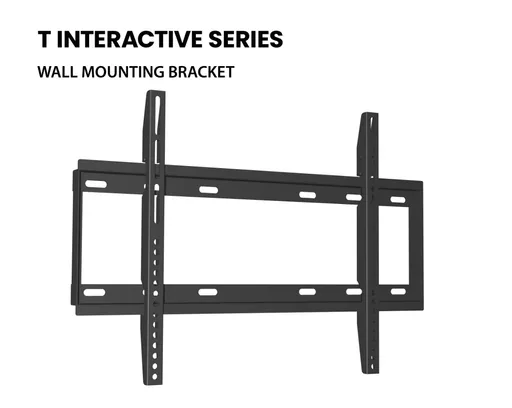

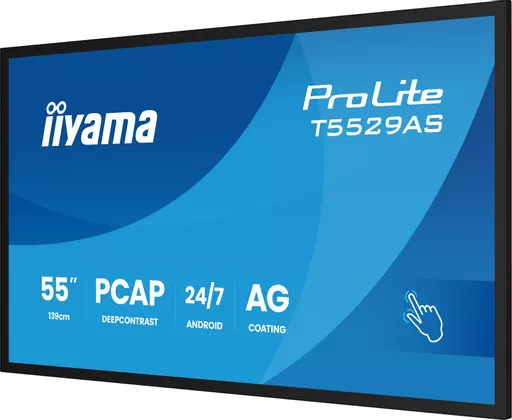

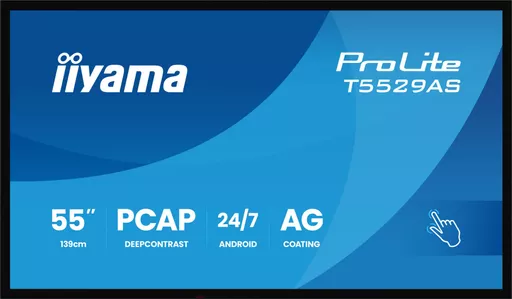

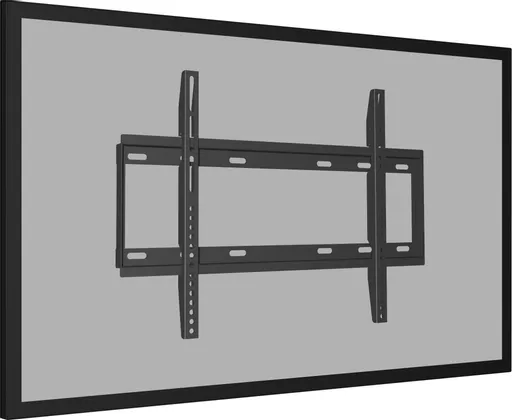

The ProLite T5529AS-B1AG is a 55" all-in-one PCAP touchscreen display built for the evolving needs of modern workspaces, especially huddle spaces where creativity, flexibility, and seamless sharing take center stage. Powered by Android OS, this interactive display delivers a user-friendly and highly adaptable experience. You can install your preferred apps directly on the device, enabling customized workflows tailored to your environment — whether in a collaborative meeting area, an enterprise innovation hub, or an educational breakout room. The USB-C loop-through feature simplifies connectivity by allowing multiple displays to be easily daisy-chained while transmitting power, data, and video — all through a single cable. This reduces cable clutter and setup time, making it ideal for dynamic workspaces. The included wall mounting bracket makes installation straightforward and secure. With iiSignage² (CMS), iiControl (DMS), and iiShare (Wireless Presentation) you gain full control over content and messaging, even remotely — perfect for updating shared information or branded visuals on the fly. The integrated EShare app brings wireless screen sharing and collaboration to life, supporting multi-user interaction and real-time ideation. The T5529AS-B1AG isn’t just a display — it’s a collaboration tool designed to empower teams, streamline communication, and make every meeting count.

+ Tech Specs

Product colour	Black
Display technology	LED
Native aspect ratio	16:9
Touchscreen	Y
Display diagonal	over 50 inches
VESA mounting	Y
Weight	32,700.00kg

Attributes

Display
HDCP	Yes
Display brightness (typical)	500 cd/m²
Screen shape	Flat
Display number of colours	1.07 billion colours
Native aspect ratio	16:9
HD type	4K Ultra HD
Display technology	LED
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Pixel pitch	0.315 x 0.315 mm
Horizontal scan range	28 - 160 kHz
Viewable size, horizontal	121 cm
Viewable size, vertical	68 cm
Backlight type	Direct LED
Display resolution	3840 x 2160 pixels
Response time	6.5 ms
Display diagonal	138.7 cm (54.6")
Contrast ratio (typical)	4000:1
Surface hardness	8
Touchscreen	Yes
Number of simultaneous touchpoints	20
Panel type	VA
Display diagonal (metric)	139 cm
Touchscreen technology	Projected capacitive system
LED backlight	Yes
Display brightness	500 cd/m²
Positional accuracy	2.5 mm
Response time measurement type	GTG (Gray to Gray)
Anti-glare screen	Yes
Audio
Built-in speaker(s)	Yes
RMS rated power	20 W
Performance
Built-in speaker(s)	Yes
RMS rated power	20 W
Mean time between failures (MTBF)	50000 h
Operating system installed	Android
Operating system version	14
Operating hours (hours/days)	24/7
Management features
On Screen Display (OSD)	Yes
Number of OSD languages	8
On Screen Display (OSD) languages	Multi
Network
Ethernet LAN (RJ-45) ports	1
Wi-Fi standards	Wi-Fi 5 (802.11ac)
Wi-Fi	Yes
Ethernet LAN	Yes
Multimedia
Number of speakers	2
Built-in speaker(s)	Yes
RMS rated power	20 W
Design
Certification	CB, CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH, UKCA, cTUVus
Product colour	Black
Front bezel colour	Black
Glass thickness	3.7 mm
Mean time between failures (MTBF)	50000 h
Ports & interfaces
USB version	2.0
DVI port	No
HDMI ports quantity	2
HDCP	Yes
HDMI version	1.4/2.0
USB Type-C DisplayPort Alternate Mode	Yes
HDCP version	1.4/2.2
USB Touch port	Yes
RS-232C	Yes
Wi-Fi standards	Wi-Fi 5 (802.11ac)
Wi-Fi	Yes
Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	1
Technical details
Placement supported	Indoor
Mean time between failures (MTBF)	50000 h
Product colour	Black
Front bezel colour	Black
Built-in processor	Yes
Power supply type	Internal
Active display area (W x H)	1209.6 x 680.4 mm
Multi-touch	Yes
Weight (with stand)	26.8 kg
Surface hardness	8
Touchscreen	Yes
Number of simultaneous touchpoints	20
RS-232C	Yes
Ergonomics
VESA mounting	Yes
Panel mounting interface	300 x 400 mm
On Screen Display (OSD)	Yes
Number of OSD languages	8
On Screen Display (OSD) languages	Multi
Power
Power supply type	Internal
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (standby)	0.5 W
Power consumption (typical)	104 W
Power consumption (off)	0.3 W
Energy efficiency scale	A to G
Energy efficiency class (SDR)	G
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	-20 - 60%
Weight & dimensions
Width (with stand)	1258.2 mm
Depth (with stand)	42.3 mm
Height (with stand)	728.8 mm
Weight (with stand)	26.8 kg
Package width	1400 mm
Package depth	1400 mm
Package height	850 mm
Package weight	32.7 kg
Packaging data
Package width	1400 mm
Package depth	1400 mm
Package height	850 mm
Package weight	32.7 kg
Remote control included	Yes
Quick start guide	Yes

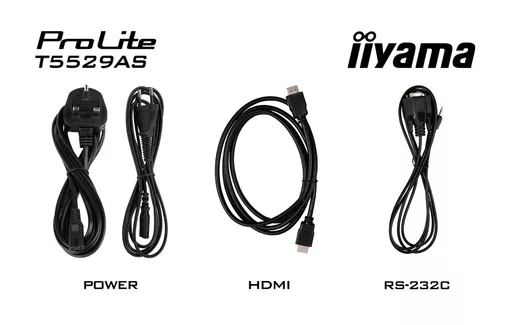

Cables included	AC, HDMI
Remote control batteries included	Yes
Packaging content
Remote control included	Yes
Quick start guide	Yes
Cables included	AC, HDMI
Batteries included	Yes
Remote control batteries included	Yes
Thin Client
Operating system installed	Android
Processor cores	4
Processor architecture	ARM Cortex-A73
Other features
Built-in processor	Yes
Active display area (W x H)	1209.6 x 680.4 mm
Multi-touch	Yes
USB ports quantity	2
Placement supported	Indoor
Mean time between failures (MTBF)	50000 h
Certification	CB, CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH, UKCA, cTUVus
Ethernet LAN (RJ-45) ports	1
Positional accuracy	2.5 mm
Remote control included	Yes
Quick start guide	Yes
Surface hardness	8
Energy efficiency scale	A to G
USB Type-C DisplayPort Alternate Mode	Yes
Power supply type	Internal
Ethernet LAN	Yes
Touchscreen	Yes
Number of simultaneous touchpoints	20
Front bezel colour	Black
Certificates
Certification	CB, CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH, UKCA, cTUVus
