SKU: TW1025LASC-B3PNR  |   Brand: iiyama

iiyama ProLite TW1025LASC-B3PNR computer monitor 25.6 cm (10.1") LED Touchscreen

SKU: TW1025LASC-B3PNR  |   Brand: iiyama

iiyama ProLite TW1025LASC-B3PNR computer monitor 25.6 cm (10.1") LED Touchscreen

19 in stock

£205.25 ex. VAT

Figures are exclusive of VAT.

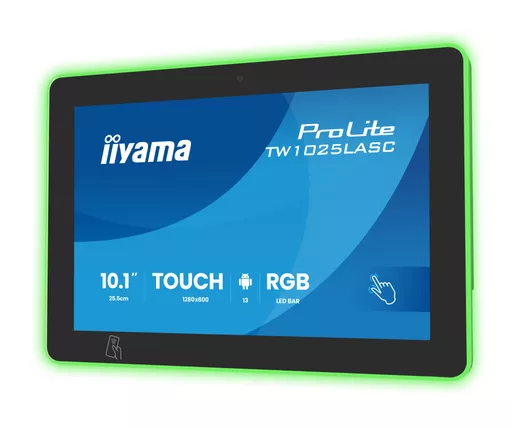

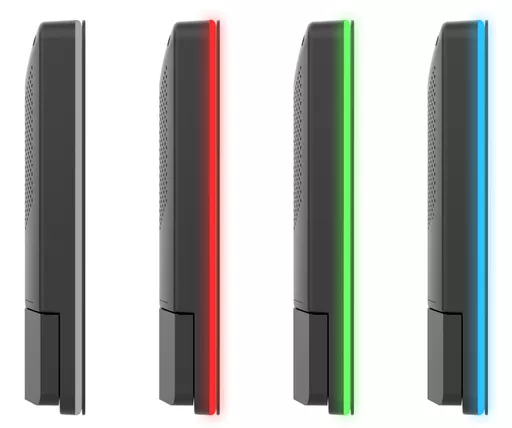

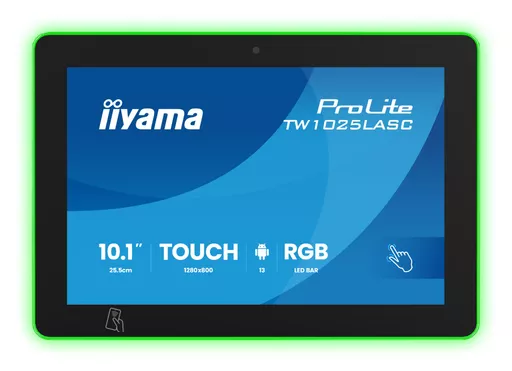

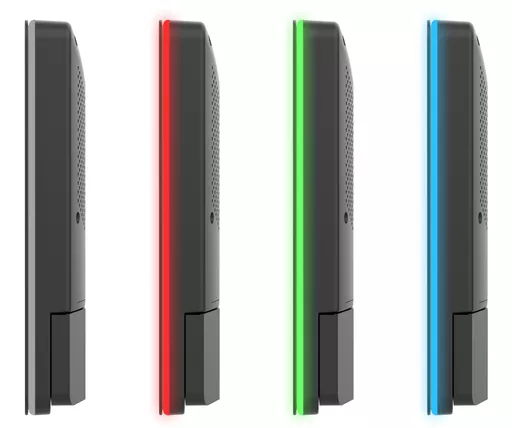

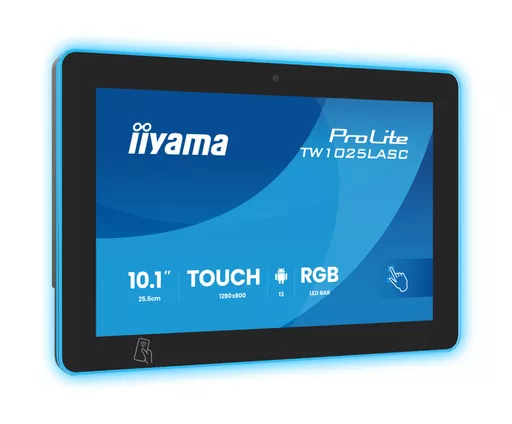

The ProLite TW1025LASC-B3PNR touch panel PC is a perfect choice for high-use environments such as booking rooms, information desks or other corporate and hospitality applications. The Optical Bonded Projective Capacitive (PCAP) 10-point touch technology ensures a seamless and accurate touch response and a lower light reflection, in addition, the display is protected against humidity and potential moisture development. Thanks to the pre-installed Android 13 operating system, it is possible to easily customize the monitor by installing applications directly to it. The Power over Ethernet technology (POE) allows to provide both data connection and power by a single cable, simplifying all installations. Thanks to the NFC/RFID reader, the touch panel PC allows to communicate wirelessly with enabled devices or tags within close proximity and the RGB Led bar will clearly and intuitively indicate the availability status of the room. Additionally, it integrates effortlessly with iiSignage² , iiyama’s Content Management System (CMS), giving you full control over your messages and advertising, in landscape portrait and face-up position. Together with the built-in 5 megapixel camera, microphone and speakers it offers limitless, interactive installation possibilities.

VESA mounting Y
Display technology LED
Touchscreen Y
Display diagonal under 18 inches
Built-in camera Y
Native aspect ratio 16:10
Family ProLite
Weight 1.00kg

Audio
Built-in speaker(s)Yes
RMS rated power4 W
Performance
Built-in speaker(s)Yes
RMS rated power4 W
Megapixel (approx.)5 MP
Compatible memory cardsSD
Card reader integratedYes
Built-in cameraYes
Operating system version13
Operating hours (hours/days)24/7
Display
Display brightness (typical)450 cd/m²
Display number of colours16.7 million colours
Native aspect ratio16:10
Display technologyLED
Viewing angle, horizontal160°
Viewing angle, vertical160°
Pixel pitch0.1692 x 0.1692 mm
Viewable size, horizontal21.7 cm
Viewable size, vertical13.5 cm
Response time25 ms
Display diagonal25.6 cm (10.1")
Contrast ratio (typical)1000:1
Surface hardness6H
TouchscreenYes
Number of simultaneous touchpoints10
Panel typeIPS
Colour depth8 bit
Display diagonal (metric)25.5 cm
Touchscreen technologyProjected capacitive system
Display brightness390 cd/m²
Response time measurement typeGTG (Gray to Gray)
Network
Ethernet LAN (RJ-45) ports1
BluetoothYes
Bluetooth version5.2
Wi-Fi standardsWi-Fi 5 (802.11ac), Wi-Fi 4 (802.11n), 802.11g, 802.11b
Wi-FiYes
Ethernet LANYes
Multimedia
Number of speakers2
Built-in speaker(s)Yes
RMS rated power4 W
Megapixel (approx.)5 MP
Built-in cameraYes
Design
Front bezel colourBlack
Glass thickness1.85 mm
Camera
Megapixel (approx.)5 MP
Built-in cameraYes

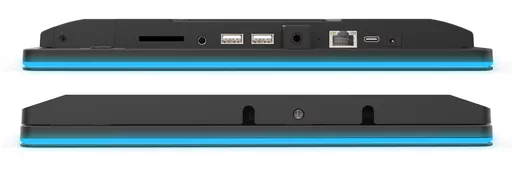

Ports & interfaces
Compatible memory cardsSD
Card reader integratedYes
USB Touch portYes
BluetoothYes
Bluetooth version5.2
Wi-Fi standardsWi-Fi 5 (802.11ac), Wi-Fi 4 (802.11n), 802.11g, 802.11b
Wi-FiYes
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Technical details
Compatible memory cardsSD
Card reader integratedYes
User controlsPower switch
Front bezel colourBlack
Sustainability certificatesErP
Compliance certificatesCE, EAC, REACH, RoHS, UKCA, WEEE
Packaging contentAC adapter, interchangeable plugs (EU/UK)
Brightness390 cd/m²
Built-in processorYes
Google applicationsGoogle Chrome, Gmail, Google Calendar
Power supply typeExternal
Active display area (W x H)216.6 x 135.4 mm
Weight (with stand)1.1 kg
Touch methodfinger, glove (latex), capacitive stylus
Surface hardness6H
TouchscreenYes
Number of simultaneous touchpoints10
Ergonomics

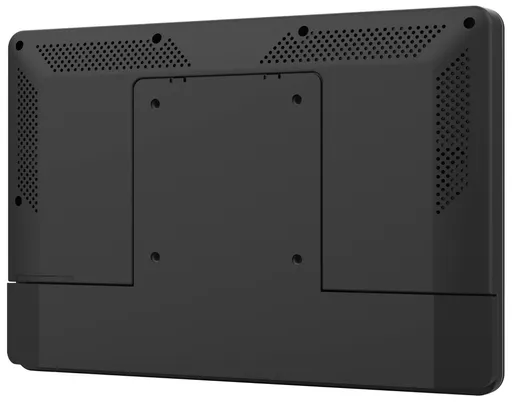

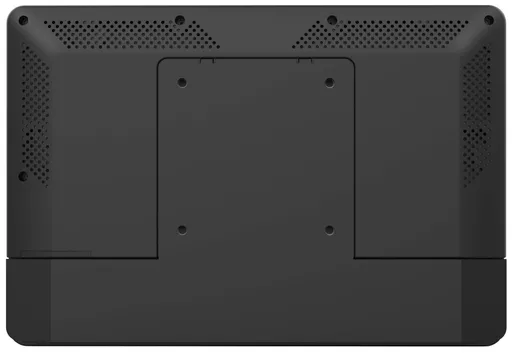

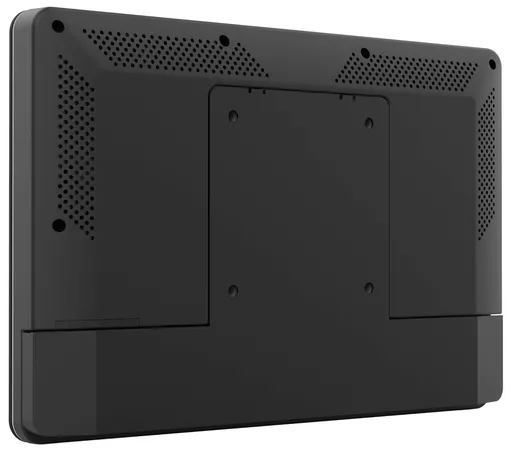

VESA mountingYes
Panel mounting interface75 x 75 mm

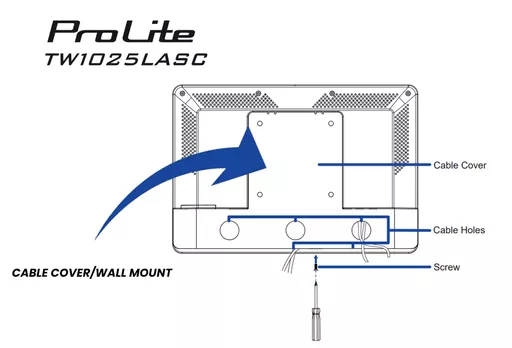

Cable managementYes
Power
Power supply typeExternal
Power consumption (standby)0.5 W
Power consumption (typical)10 W
Power consumption (off)0.3 W
AC adapter output voltage12 V
Weight & dimensions
Width (with stand)259.5 mm
Depth (with stand)28 mm
Height (with stand)178.5 mm
Weight (with stand)1.1 kg
Weight (without stand)1.6 kg
Package width363 mm
Package depth65 mm
Package height225 mm
Width259.5 mm
Weight1.1 kg
Height178.5 mm
Depth28 mm
Packaging data
Package width363 mm
Package depth65 mm
Package height225 mm
AC adapter includedYes
Quick start guideYes
Packaging content
Quick start guideYes
AC adapter includedYes
Sustainability
Sustainability certificatesErP
Other features
Packaging contentAC adapter, interchangeable plugs (EU/UK)
Brightness390 cd/m²
Built-in processorYes
Google applicationsGoogle Chrome, Gmail, Google Calendar
Active display area (W x H)216.6 x 135.4 mm
USB ports quantity3
AC adapter includedYes
Ethernet LAN (RJ-45) ports1
User controlsPower switch
Touch methodfinger, glove (latex), capacitive stylus
Width259.5 mm
Weight1.1 kg
Height178.5 mm
Depth28 mm
Compliance certificatesCE, EAC, REACH, RoHS, UKCA, WEEE
Control panelPower switch
BluetoothYes
Bluetooth version5.2
Quick start guideYes
Surface hardness6H
Power supply typeExternal
Ethernet LANYes
TouchscreenYes
Number of simultaneous touchpoints10
Front bezel colourBlack
