| Audio |
|---|
| Built-in speaker(s) | Yes |
| RMS rated power | 15 W |
| Performance |
|---|
| Built-in speaker(s) | Yes |
| RMS rated power | 15 W |
| Megapixel (approx.) | 8 MP |
| Built-in microphone | Yes |
| Built-in camera | Yes |
| Operating system installed | Android 9 |
| Display |
|---|
| Display brightness (typical) | 400 cd/m² |
| Screen shape | Flat |
| Display number of colours | 1.07 billion colours |
| Native aspect ratio | 16:9 |
| Pixel density | 51 ppi |
| Colour gamut | 85% |
| Maximum refresh rate | 60 Hz |
| sRGB coverage (typical) | 99% |
| HD type | 4K Ultra HD |
| Display technology | LED |
| Contrast ratio (dynamic) | 3000000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Pixel pitch | 0.4935 x 0.4935 mm |
| Viewable size, horizontal | 189.5 cm |
| Viewable size, vertical | 106.6 cm |
| Backlight type | Direct LED |
| Display resolution | 3840 x 2160 pixels |
| Response time | 6.5 ms |
| Display diagonal | 2.18 m (86") |
| Contrast ratio (typical) | 4000:1 |
| NTSC coverage (typical) | 85% |
| Touchscreen | Yes |
| High Dynamic Range (HDR) supported | Yes |
| Panel type | VA |
| Colour depth | 10 bit |
| High Dynamic Range (HDR) technology | High Dynamic Range 10 (HDR10) |
| Touch technology | Multi-touch |
| Touchscreen technology | Infrared |
| LED backlight | Yes |
| Display brightness | 400 cd/m² |
| Anti-glare screen | Yes |
| Management features |
|---|
| On Screen Display (OSD) | Yes |
| Network |
|---|
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN (RJ-45) ports | 2 |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |
| Wi-Fi | Yes |
| Ethernet LAN | Yes |
| Remotely operated | Yes |
| Multimedia |
|---|
| Number of speakers | 2 |
| Built-in speaker(s) | Yes |
| RMS rated power | 15 W |
| Megapixel (approx.) | 8 MP |
| Built-in microphone | Yes |
| Built-in camera | Yes |
| Design |
|---|
| Market positioning | Business |
| Certification | RoHS TÜV Rheinland Flicker Free TÜV Rheinland Low Blue Light |
| Product colour | Black |
| Colour name | Raven black |
| Camera |
|---|
| Megapixel (approx.) | 8 MP |
| Built-in camera | Yes |

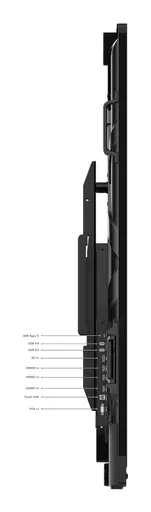

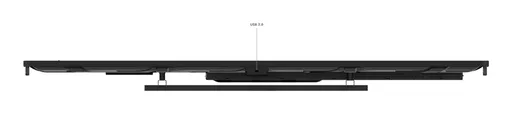

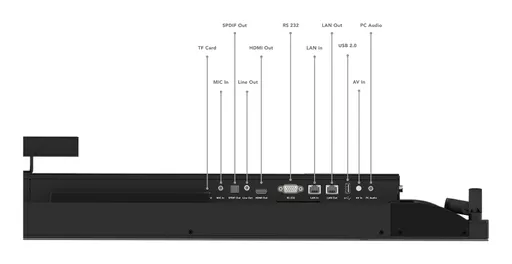

| Ports & interfaces |
|---|
| Built-in USB hub | Yes |
| USB hub version | 2.0 / 3.2 Gen 1 (3.1 Gen 1) |
| USB upstream port type | USB Type-A, USB Type-B, USB Type-C |
| Number of upstream ports | 9 |
| USB Type-A downstream ports quantity | 5 |
| USB Type-C downstream ports quantity | 2 |
| USB version | 2.0/3.2 Gen 1 (3.1 Gen 1) |
| DVI port | No |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 5 |
| DisplayPorts quantity | 1 |
| Audio input | Yes |
| Audio output | Yes |
| Microphone in | Yes |
| PC Audio in | Yes |
| HDMI | Yes |
| HDMI version | 2.0 |
| DisplayPort version | 1.2 |
| USB Power Delivery (USB PD) | No |
| USB Type-C DisplayPort Alternate Mode | No |
| Number of USB Type-B upstream ports quantity | 1 |
| Number of USB Type-C upstream ports quantity | 2 |
| USB Touch ports quantity | 2 |
| USB Touch port | Yes |
| OPS module slot | Yes |
| DisplayPort out quantity | 0 |
| USB Type-B downstream ports quantity | 2 |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |
| Wi-Fi | Yes |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN (RJ-45) ports | 2 |
| Technical details |
|---|
| Height (without stand) | 1209.2 mm |
| Depth (without stand) | 92 mm |
| Width (without stand) | 1982 mm |
| HDMI | Yes |
| Built-in microphone | Yes |
| Product colour | Black |
| Built-in processor | Yes |
| RS-232 interface | Yes |
| Power supply type | Internal |
| Active display area (W x H) | 1895 x 1066 mm |
| Multi-touch | Yes |
| Touchscreen | Yes |
| Ergonomics |
|---|
| Wall mountable | Yes |

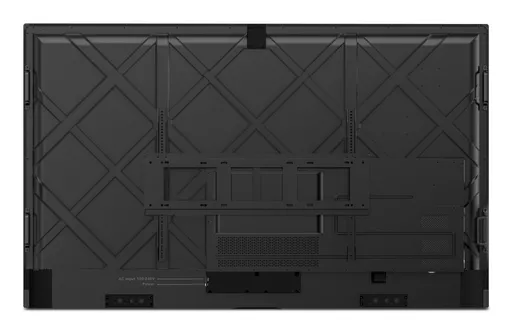

| VESA mounting | Yes |
| Panel mounting interface | 800 x 600 mm |
| On Screen Display (OSD) | Yes |
| Height adjustment | No |
| Power |
|---|
| Power supply type | Internal |

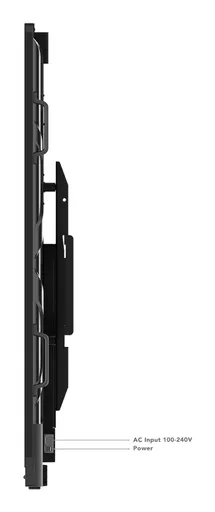

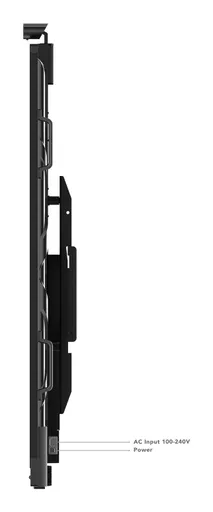

| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (max) | 410 W |
| Power consumption (standby) | 43 W |
| Power consumption (typical) | 350 W |
| Power consumption (off) | 0.5 W |
| Energy efficiency scale | A to G |
| Energy efficiency class (SDR) | G |
| Energy consumption (SDR) per 1000 hours | 193 kWh |
| Operational conditions |
|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -15 - 55 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 20 - 90% |
| Weight & dimensions |
|---|
| Height (without stand) | 1209.2 mm |
| Depth (without stand) | 92 mm |
| Width (without stand) | 1982 mm |
| Bezel width (side) | 2.83 cm |
| Weight (without stand) | 68 kg |
| Package width | 2119 mm |
| Package depth | 275 mm |
| Package height | 1353 mm |
| Package weight | 88 kg |
| Packaging data |
|---|
| Package width | 2119 mm |
| Package depth | 275 mm |
| Package height | 1353 mm |
| Package weight | 88 kg |
| Remote control included | Yes |
| Quick start guide | Yes |
| Cables included | AC, HDMI, USB Type-A to USB Type-B |
| Remote control batteries included | Yes |
| Stylus included | Yes |
| Packaging content |
|---|
| Remote control included | Yes |
| Quick start guide | Yes |
| Cables included | AC, HDMI, USB Type-A to USB Type-B |
| Batteries included | Yes |
| Remote control batteries included | Yes |
| Stylus included | Yes |
| Thin Client |
|---|
| Operating system installed | Android 9 |
| Processor cores | 4 |
| Processor family | ARM Cortex |
| Processor architecture | ARM Cortex-A73 |
| Other features |
|---|
| Built-in processor | Yes |
| RS-232 interface | Yes |
| Active display area (W x H) | 1895 x 1066 mm |
| Multi-touch | Yes |
| Certification | RoHS TÜV Rheinland Flicker Free TÜV Rheinland Low Blue Light |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN (RJ-45) ports | 2 |
| Height (without stand) | 1209.2 mm |
| Depth (without stand) | 92 mm |
| Width (without stand) | 1982 mm |
| Power consumption (max) | 410 W |
| Bluetooth | Yes |
| Remote control included | Yes |
| Bluetooth version | 5.0 |
| Quick start guide | Yes |
| HDMI | Yes |
| Energy efficiency scale | A to G |
| USB Type-C DisplayPort Alternate Mode | No |
| Power supply type | Internal |
| Ethernet LAN | Yes |
| Touchscreen | Yes |
| USB Power Delivery (USB PD) | No |
| Certificates |
|---|
| Certification | RoHS TÜV Rheinland Flicker Free TÜV Rheinland Low Blue Light |
