SKU: iDS-7208HUHI-M1/XT  |   Brand: Hikvision

Hikvision 8-ch 5 MP 1U H.265 AcuSense DVR

SKU: iDS-7208HUHI-M1/XT  |   Brand: Hikvision

Hikvision 8-ch 5 MP 1U H.265 AcuSense DVR

0 in stock

£209.07 ex. VAT

Figures are exclusive of VAT.



Performance
Audio output channels1.0 channels
Audio input channels1 channels
Maximum video resolution3840 x 2160 pixels
Audio system2-way
Video compression formatsH.264, H.264+, H.265, H.265 Pro, H.265 Pro+
Product colourBlack
Audio formats supportedG.711u
Analog signal format systemNTSC, PAL
Video streamingYes
Number of simultaneously playbacked channels8 channels
Dual stream supportYes
Bit rate10000 Kbit/s
Audio streamingYes
Video motion detectionYes
InternalYes
Total bandwidth256 Mbit/s
Audio bitrate64 Kbit/s
Video
Maximum video resolution3840 x 2160 pixels
Video compression formatsH.264, H.264+, H.265, H.265 Pro, H.265 Pro+
Analog signal format systemNTSC, PAL
Bit rate10000 Kbit/s

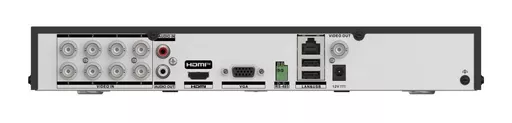

Ports & interfaces
Video input channels8 channels
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
VGA (D-Sub) output ports1
USB 2.0 ports quantity1
RS-485 ports1
Ethernet LAN (RJ-45) ports1
BNC output ports1
BNC input ports8
Number of HDMI outputs1
Line outputs (RCA)1
Line inputs (RCA)1
Network
Ethernet LANYes
Number of users64 user(s)
Supported network protocolsTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF, ISUP
Ethernet LAN (RJ-45) ports1
Ethernet interface typeFast Ethernet, Gigabit Ethernet
Ethernet LAN data rates10,100,1000 Mbit/s
Hard drive
Number of HDDs supported1
Maximum HDD capacity12 TB
Supported HDD interfacesSerial ATA
Storage
Supported HDD interfacesSerial ATA
Power
Power consumption (typical)24 W
DC voltage12 V
DC current (max)2 A
Weight & dimensions
Weight2 kg
Width320 mm
Depth240 mm
Height48 mm
Technical details
Video input channels8 channels
Ethernet LANYes
Audio output channels1.0 channels
Audio input channels1 channels
Audio system2-way
Audio formats supportedG.711u
Video streamingYes
Number of simultaneously playbacked channels8 channels
Dual stream supportYes
Audio streamingYes
Colour
Product colourBlack
Operational conditions
Operating temperature (T-T)-10 - 55 °C
Operating relative humidity (H-H)10 - 90%
