| Ports & interfaces |
|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| Host interface | USB 3.2 Gen 2 (3.1 Gen 2) Type-C |
| USB 2.0 ports quantity | 0 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| Microphone in | No |
| Headphone outputs | 0 |
| Connectivity technology | Wired |

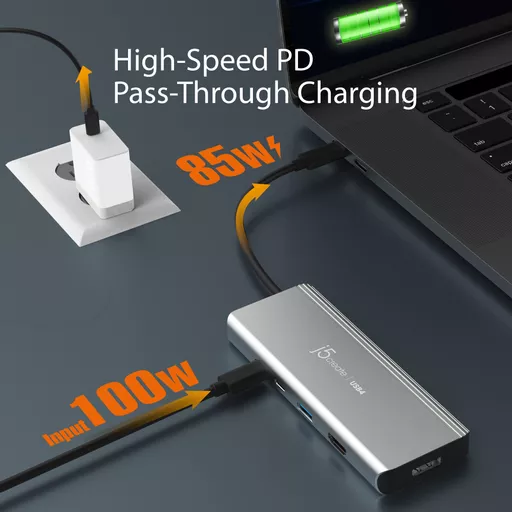

| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery revision | 3.0 |
| USB Power Delivery up to | 85 W |
| USB Type-C DisplayPort Alternate Mode | Yes |

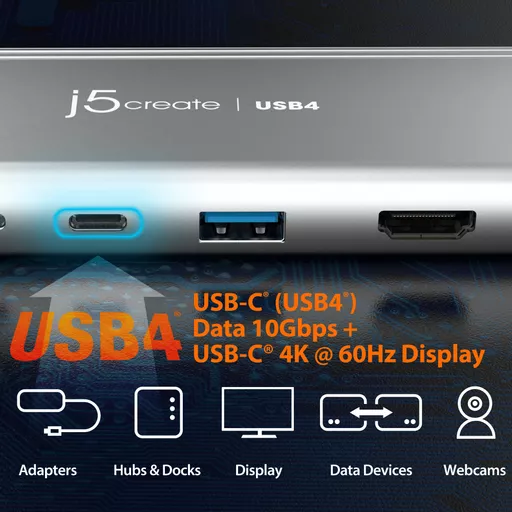

| USB4 ports quantity | 1 |
| Network |
|---|
| Ethernet LAN | No |
| Performance |
|---|

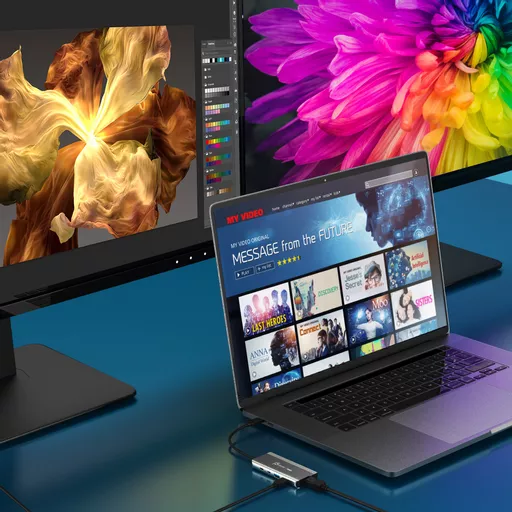

| Number of displays supported | 2 |
| Country of origin | Taiwan |
| Product colour | Silver |
| Card reader integrated | No |
| Compatibility | Thunderbolt™ 4 computers Thunderbolt™ 3 computers USB4® computers |
| Plug and Play | Yes |
| Data transfer rate | 10 Gbit/s |
| HD type | 4K Ultra HD |
| Housing material | Aluminium |
| Maximum refresh rate | 60 Hz |

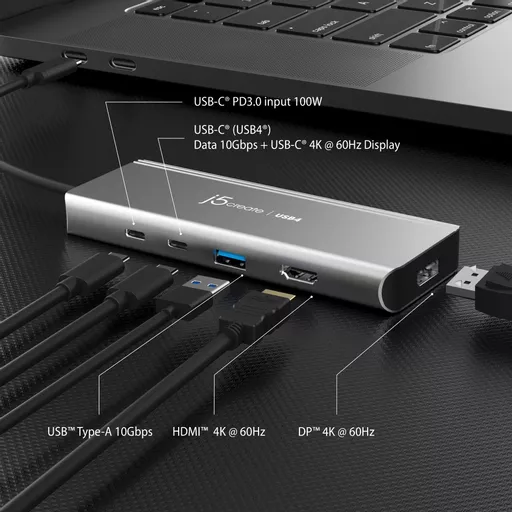

| Hub interfaces | DisplayPort, HDMI, Mini DisplayPort, USB 3.2 Gen 2 (3.1 Gen 2) Type-A, mini DisplayPort |
| Technical details |
|---|
| Product colour | Silver |
| Compatibility | Thunderbolt™ 4 computers Thunderbolt™ 3 computers USB4® computers |
| Plug and Play | Yes |
| Data transfer rate | 10 Gbit/s |
| Master (outer) case GTIN (EAN/UPC) | 24712795086342 |
| Warranty period | 2 year(s) |

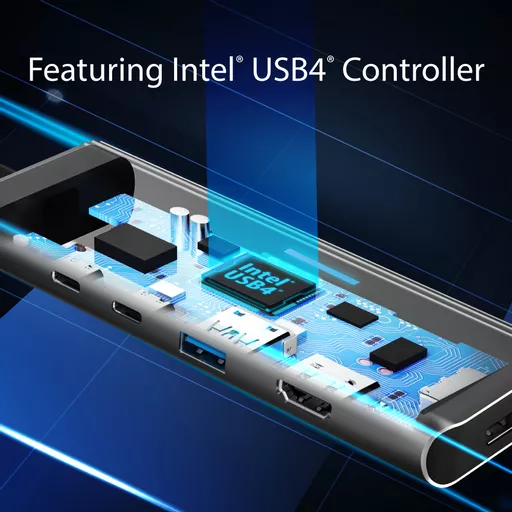

| Special features | Intel® USB4® controller ensures industry-leading quality and reliability, Up to two 4K displays with flexible monitor connections, Power Delivery 3.0 offers up to 85W of pass-through charging with a USB-C® power adapter |
| Products per master (outer) case | 18 pc(s) |
| Master (outer) case width | 226 mm |
| Master (outer) case gross weight | 4.1 kg |
| Master (outer) case length | 445 mm |
| Master (outer) case height | 190 mm |
| Products per shipping (inner) case | 6 pc(s) |
| Storage |
|---|
| Card reader integrated | No |
| Power |
|---|
| Power source type | USB |
| Power consumption (typical) | 1.25 W |
| Output voltage | 20 V |
| Output current | 0.25 A |
| Power connector | USB Type-C |
| USB cable length | 0.2 m |
| Software |
|---|
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Operational conditions |
|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -17 - 68 °C |
| Operating relative humidity (H-H) | 0 - 85% |
| Storage relative humidity (H-H) | 0 - 85% |
| Weight & dimensions |
|---|
| Weight | 109 g |
| Width | 51 mm |
| Depth | 200 mm |
| Height | 135 mm |
| Package weight | 177 g |
| Package width | 193 mm |
| Package depth | 125 mm |
| Package height | 22.5 mm |
| Design |
|---|
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Country of origin | Taiwan |
| Product colour | Silver |
| Packaging data |
|---|
| Quantity per pack | 1 pc(s) |
| Package weight | 177 g |
| Package width | 193 mm |
| Package depth | 125 mm |
| Package height | 22.5 mm |
| Packaging content |
|---|
| Quick start guide | Yes |
| Manual | Yes |
| Cables included | USB Type-C |
| Quantity per pack | 1 pc(s) |
| Logistics data |
|---|
| Shipping (inner) case width | 16.5 cm |
| Shipping (inner) case length | 21.2 cm |
| Shipping (inner) case height | 13.7 cm |
| Shipping (inner) case net weight | 1.2 kg |
| Products per master (outer) case | 18 pc(s) |
| Master (outer) case width | 226 mm |
| Master (outer) case gross weight | 4.1 kg |
| Master (outer) case length | 445 mm |
| Master (outer) case height | 190 mm |
| Products per shipping (inner) case | 6 pc(s) |
| Export Control Classification Number (ECCN) | EAR99 |
| Other features |
|---|
| Special features | Intel® USB4® controller ensures industry-leading quality and reliability, Up to two 4K displays with flexible monitor connections, Power Delivery 3.0 offers up to 85W of pass-through charging with a USB-C® power adapter |
