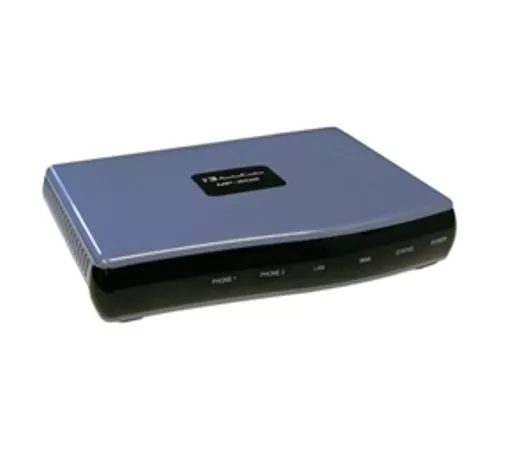

AudioCodes MP204B/4S/SIP gateway/controller 10, 100, 1000 Mbit/s

SKU: MP204B/4S/SIP | Brand: Audiocodes

0 in stock

£172.00 ex. VAT

Figures are exclusive of VAT.

Design
LED indicators	LAN, Power, Status, WAN
Product colour	Blue
Enclosure material	Plastic
Features
Voice codecs	CNG, G.168, G.711, G.723.1, G.726, G.727, G.729A, G.729B, VAD
Performance
Control display unit	Yes
Product colour	Blue
Enclosure material	Plastic
Protocols
VoIP protocols	SIP(RFC 3261)
Supported network protocols	IPv4, TCP/UDP, ICMP, ARP, RTP, RTCP, PPPoE, PPTP, L2TP, DNS, Dynamic DNS, STUN, DHCP client/server, NAT, RIP, SPI Firewall, HTTP/HTTPS, FTP/TFTP, SNMP
Supported protocols	SIP
Network
Networking standards	IEEE 802.1Q, IEEE 802.1p
Ethernet LAN data rates	10,100,1000 Mbit/s
Modulation	DTMF
Differentiated services (DiffServ) supported	Yes
Security
VLAN support	Yes
Firewall security	Yes
Ports & interfaces
WAN connection	Ethernet (RJ-45)
Foreign eXchange Station (FXS) ports quantity	4
Ethernet LAN (RJ-45) ports	2
Management features
Web-based management	Yes
Reset button	Yes
Quality of Service (QoS) support	Yes
Power
Output voltage	12 V
Output current	1 A
Input voltage	110 - 220 V
Input frequency	50/60 Hz
Weight & dimensions
Width	167 mm
Height	33 mm
Depth	133 mm
Operational conditions
Operating temperature (T-T)	5 - 40 °C
Storage temperature (T-T)	-25 - 85 °C
Technical details
Voice codecs	CNG, G.168, G.711, G.723.1, G.726, G.727, G.729A, G.729B, VAD
Modulation	DTMF
Indication
LED indicators	LAN, Power, Status, WAN
Display
Control display unit	Yes
