| Design |
|---|
| Colour name | Phantom Blue (top) Shadow Black (bottom) |

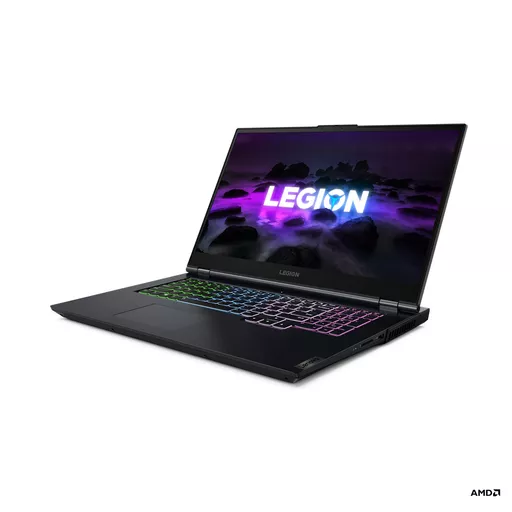

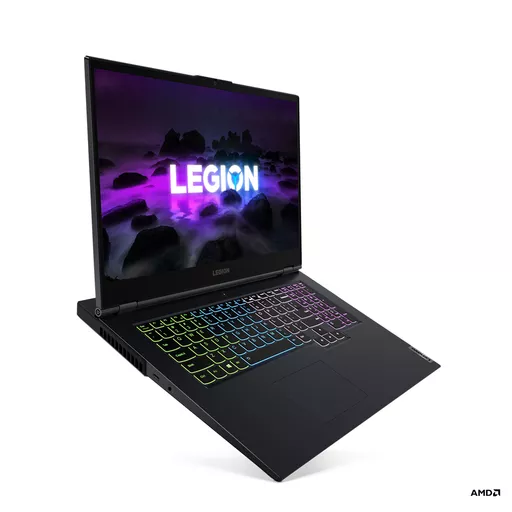

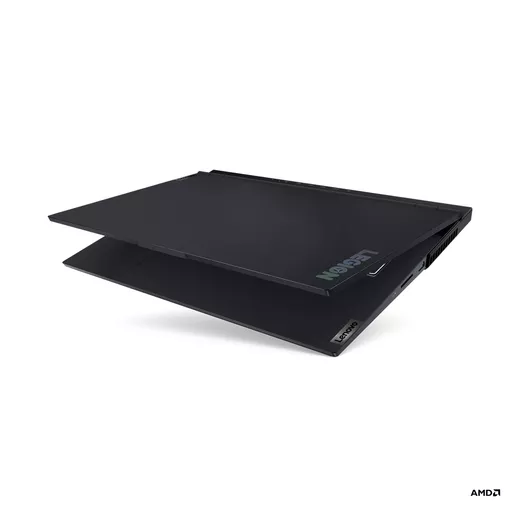

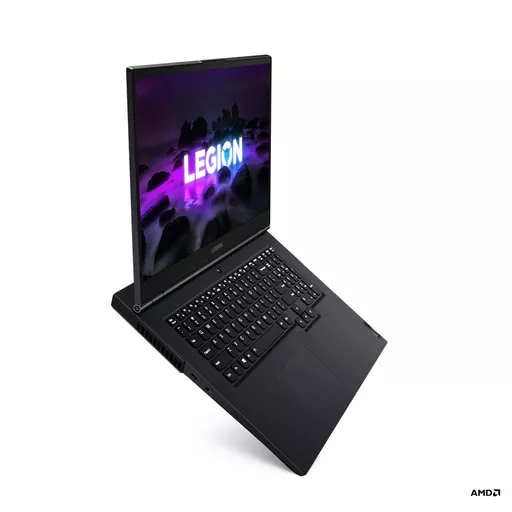

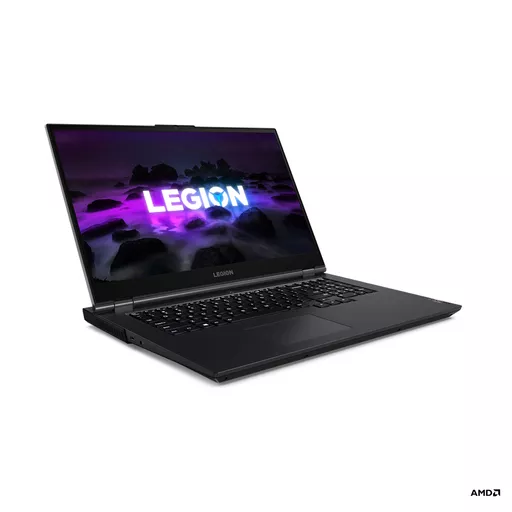

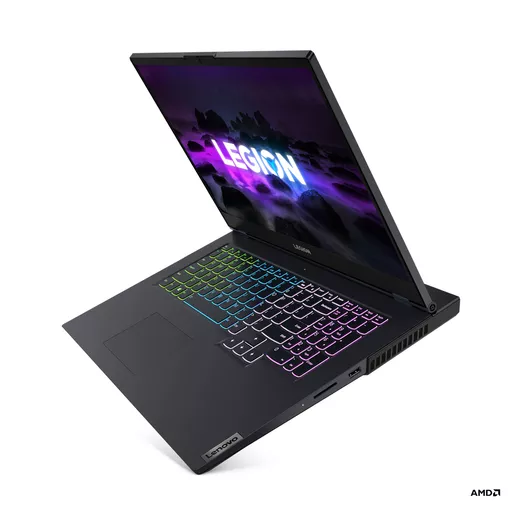

| Product type | Laptop |
| Market positioning | Gaming |
| Housing material | Acrylonitrile butadiene styrene (ABS), Polycarbonate (PC) |
| Form factor | Clamshell |
| Product colour | Black, Blue |
| Country of origin | China |
| Display |
|---|
| HD type | Full HD |
| Panel type | IPS |
| LED backlight | Yes |
| Display brightness | 300 cd/m² |
| Contrast ratio (typical) | 800:1 |
| Touchscreen | No |
| Display resolution | 1920 x 1080 pixels |
| Display diagonal | 43.9 cm (17.3") |
| Anti-glare screen | Yes |
| Maximum refresh rate | 144 Hz |
| RGB colour space | NTSC |
| High Dynamic Range (HDR) technology | Dolby Vision |
| Colour gamut | 72% |
| Native aspect ratio | 16:9 |
| Processor |
|---|
| Processor generation | AMD Ryzen 5000 Series |
| Processor cache | 16 MB |
| Processor frequency | 3.2 GHz |
| Processor model | 5800H |
| Processor boost frequency | 4.4 GHz |
| Processor cores | 8 |
| Motherboard chipset | AMD SoC |
| Processor manufacturer | AMD |
| Processor family | AMD Ryzen™ 7 |
| Memory |
|---|
| Memory form factor | SO-DIMM |
| Internal memory | 16 GB |
| Memory layout (slots x size) | 2 x 8 GB |
| Internal memory type | DDR4-SDRAM |
| Memory clock speed | 3200 MHz |
| Memory slots | 2x SO-DIMM |
| Maximum internal memory | 16 GB |
| Storage |
|---|
| SSD form factor | M.2 |
| Storage media | SSD |
| Optical drive type | No |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| SSD interface | NVMe, PCI Express 3.0 |
| Card reader integrated | Yes |
| Compatible memory cards | MMC, SD, SDHC, SDXC |
| Total storage capacity | 512 GB |
| Total SSDs capacity | 512 GB |
| NVMe | Yes |
| Graphics |
|---|
| Discrete graphics card | Yes |
| Discrete graphics card memory | 8 GB |
| On-board graphics card | Yes |
| On-board graphics card model | AMD Radeon Graphics |
| Discrete graphics card model | NVIDIA GeForce RTX 3070 |
| Discrete graphics memory type | GDDR6 |
| On-board GPU manufacturer | AMD |
| Audio |
|---|
| Audio chip | Realtek ALC3306 |
| Number of microphones | 2 |
| Number of built-in speakers | 2 |
| Speaker power | 2 W |
| Built-in microphone | Yes |
| Camera |
|---|
| Front camera | Yes |
| Privacy camera | Yes |
| Privacy type | Privacy shutter |
| Front camera HD type | HD |
| Optical drive |
|---|
| Optical drive type | No |
| Network |
|---|
| Mobile network connection | No |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 100,1000 Mbit/s |
| Bluetooth | Yes |
| Bluetooth version | 5.1 |
| Antenna type | 2x2 |

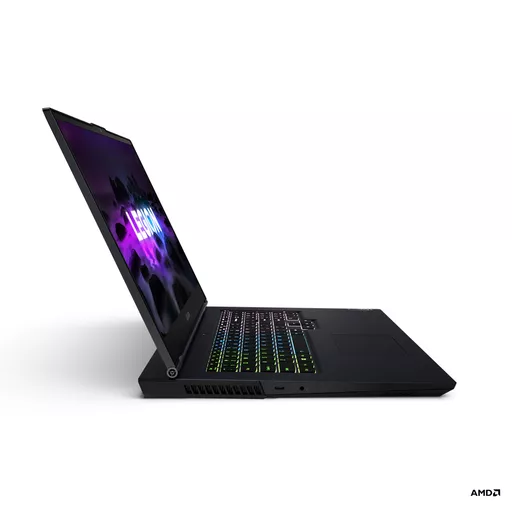

| Ports & interfaces |
|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| USB Type-C DisplayPort Alternate Mode | Yes |
| USB Sleep-and-Charge ports | 1 |
| USB Sleep-and-Charge | Yes |
| USB 2.0 ports quantity | 0 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Combo headphone/mic port | Yes |
| USB Power Delivery (USB PD) | Yes |
| DC-in jack | Yes |
| Performance |
|---|
| Motherboard chipset | AMD SoC |

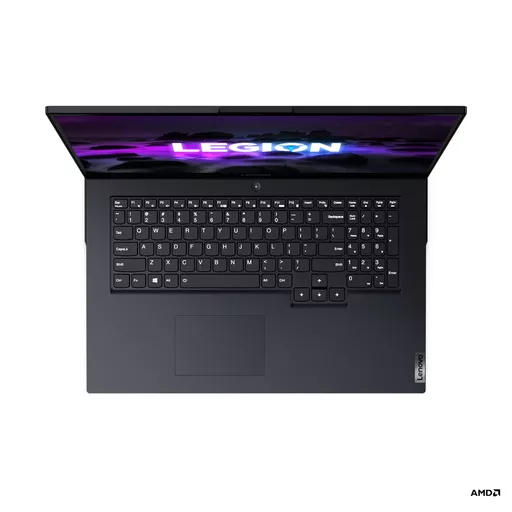

| Keyboard |
|---|
| Pointing device | Touchpad |
| Numeric keypad | Yes |
| Keyboard backlit | Yes |
| Keyboard language | UK English |
| Keyboard backlit colour | White |
| Software |
|---|
| Operating system language | English |
| Operating system architecture | 64-bit |
| Trial software | Office |
| Operating system installed | Windows 10 Home |
| Technical details |
|---|
| Market positioning | Gaming |
| Housing material | Acrylonitrile butadiene styrene (ABS), Polycarbonate (PC) |
| Form factor | Clamshell |
| Product colour | Black, Blue |
| Discrete graphics card memory | 8 GB |
| Commodity Classification Automated Tracking System (CCATS) | 8471300000 |
| Compliance certificates | RoHS |
| Battery |
|---|
| Battery technology | Lithium Polymer (LiPo) |
| Battery life (max) | 4.6 h |
| Battery capacity | 80 Wh |
| Fast charging | Yes |
| Fast charging time (50%) | 30 min |
| Power |
|---|
| AC adapter power | 300 W |
| USB Power Delivery (USB PD) | Yes |
| DC-in jack | Yes |
| Security |
|---|
| Password protection | Yes |
| Trusted Platform Module (TPM) | Yes |
| Password protection type | HDD, Power on, Supervisor |
| Fingerprint reader | No |
| Certificates |
|---|
| Certification | ErP Lot 3 |
| Compliance certificates | RoHS |
| Weight & dimensions |
|---|
| Width | 398.6 mm |
| Depth | 290 mm |
| Height (front) | 2.43 cm |
| Height (rear) | 2.62 cm |
| Weight | 2.98 kg |
| Packaging data |
|---|
| Package weight | 4.85 kg |
| Package width | 596 mm |
| Package height | 86 mm |
| Package depth | 369 mm |
| Features |
|---|
| Country of origin | China |
| Supplier features |
|---|
| Country of origin | China |
| Logistics data |
|---|
| Harmonized System (HS) code | 84713000 |
| Commodity Classification Automated Tracking System (CCATS) | 8471300000 |
| Other features |
|---|
| On-board graphics card | Yes |
| Anti-glare screen | Yes |
| Country of origin | China |
| Harmonized System (HS) code | 84713000 |
