SKU: EC266D2I  |   Brand: Asrock

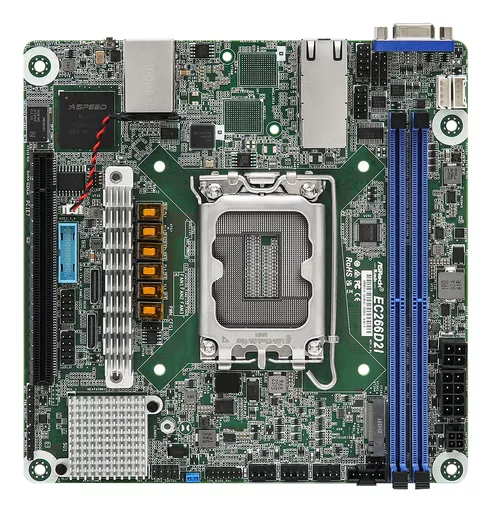

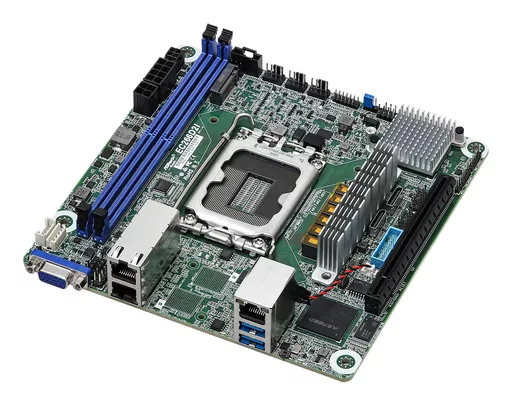

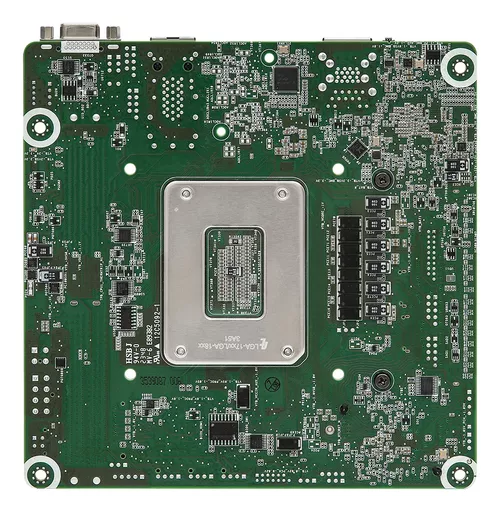

Asrock EC266D2I motherboard Intel C266 LGA 1700 mini ITX

SKU: EC266D2I  |   Brand: Asrock

Asrock EC266D2I motherboard Intel C266 LGA 1700 mini ITX

0 in stock

£257.15 ex. VAT

Figures are exclusive of VAT.



Processor socket LGA 1700
Supported memory types DDR5-SDRAM
Number of memory slots 2 to 3
Motherboard form factor mini ITX
Processor manufacturer Intel

Internal I/O
Number of M.2 (M) slots1
USB 3.2 Gen 1 (3.1 Gen 1) connectors3
TPM connectorYes
Peripheral (Molex) power connectors (4-pin)1
Number of SATA III connectors8
Number of COM connectors1
EPS power connector (8-pin)Yes
ATX Power connector (24-pin)Yes
Technical details
Motherboard chipset familyIntel
Motherboard chipsetIntel C266
Supported processor socketsLGA 1700
PC health monitoringCPU, Fan
Motherboard form factormini ITX
Performance
Motherboard chipset familyIntel
Motherboard chipsetIntel C266
RAID levels0, 1, 5, 10
Supported processor socketsLGA 1700
PC health monitoringCPU, Fan
Motherboard form factormini ITX
Processor
Processor manufacturerIntel
Compatible processor seriesIntel® Pentium® Gold, Intel® Xeon®, Intel Xeon E
Supported processor socketsLGA 1700
Processor socketLGA 1700
Memory
Number of memory slots2
Supported memory typesDDR5-SDRAM
Memory voltage1.1 V
Maximum internal memory32 GB
Supported memory clock speed (max)4800 MHz
ECC сompatibilityECC
Storage controllers
RAID levels0, 1, 5, 10
RAID supportYes
Graphics
On-board graphics card modelAspeed AST2600

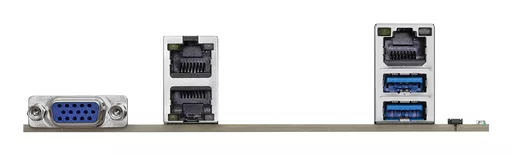

Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
VGA (D-Sub) ports quantity1
Ethernet LAN (RJ-45) ports2
IPMI LAN (RJ-45) portYes
Network
Ethernet LANYes
Wi-FiNo
Features
Motherboard chipset familyIntel
Motherboard chipsetIntel C266
Supported processor socketsLGA 1700
PC health monitoringCPU, Fan
Motherboard form factormini ITX
Expansion slots
Number of M.2 (M) slots1
PCI Express OCuLink connectors (NVMe support)2
PCI Express x16 (Gen 5.x) slots1
BIOS
BIOS typeAMI
BIOS memory size256 Mbit
ACPI version6.4
System Management BIOS (SMBIOS) version2.8
Operational conditions
Storage temperature (T-T)-40 - 70 °C
Operating temperature (T-T)10 - 35 °C
Storage relative humidity (H-H)20 - 90%
Weight & dimensions
Width170.2 mm
Depth170.2 mm
