| Technical details |
|---|
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD B450 |
| Motherboard form factor | micro ATX |
| Component for | PC |
| Audio |
|---|
| Audio output channels | 7.1 channels |
| Performance |
|---|
| Windows operating systems supported | Windows 10 x64, Windows 7 x64 |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD B450 |
| RAID levels | 0, 1, 10 |
| Audio output channels | 7.1 channels |
| Motherboard form factor | micro ATX |
| Component for | PC |
| Expansion card interfaces |
|---|
| Audio connector | Yes |
| Processor |
|---|
| Processor manufacturer | AMD |
| Compatible processor series | AMD Ryzen 2000 Series, AMD Ryzen 3000 Series, AMD Ryzen Threadripper 1000 Series, AMD Ryzen Threadripper 2000 Series, AMD Ryzen Threadripper 3000 Series, AMD Ryzen Threadripper PRO 3000 WX-Series |
| Processor socket | Socket AM4 |
| Memory |
|---|
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Supported memory types | DDR4-SDRAM |
| Memory channels | Dual-channel |
| Supported memory clock speeds | 2133,2400,2666,2800,3000,3200,3400,3466,3533,3600,3733,3866,4000,4400 MHz |
| Maximum internal memory | 128 GB |
| Unbuffered memory | Yes |
| ECC сompatibility | ECC |
| Storage controllers |
|---|
| Supported storage drive interfaces | M.2, SATA, SATA II, SATA III |
| RAID levels | 0, 1, 10 |
| Number of storage drives supported | 7 |
| Internal I/O |
|---|
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 0 |
| Audio connector | Yes |
| 12V power connector | Yes |
| Supported storage drive interfaces | M.2, SATA, SATA II, SATA III |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| TPM connector | Yes |
| S/PDIF out connector | Yes |
| Number of SATA III connectors | 6 |
| Number of SATA II connectors | 0 |
| Number of Parallel ATA connectors | 0 |
| Number of COM connectors | 1 |
| Number of chassis fan connectors | 2 |
| Front panel audio connector | Yes |
| EPS power connector (8-pin) | Yes |
| CPU fan connector | Yes |
| ATX Power connector (24-pin) | Yes |
| RGB LED pin header | Yes |

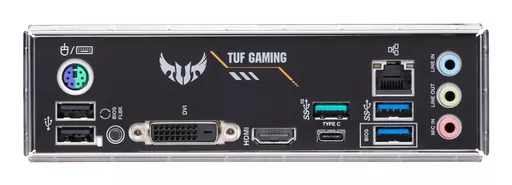

| Rear panel I/O ports |
|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| USB 2.0 ports quantity | 2 |
| eSATA ports quantity | 0 |
| VGA (D-Sub) ports quantity | 0 |
| PS/2 ports quantity | 1 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| DVI-D ports quantity | 1 |
| Network |
|---|
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Ethernet interface type | Gigabit Ethernet |
| Features |
|---|
| Windows operating systems supported | Windows 10 x64, Windows 7 x64 |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD B450 |
| Audio output channels | 7.1 channels |
| Motherboard form factor | micro ATX |
| Component for | PC |
| Audio chip | Realtek ALC887 |
| Harmonized System (HS) code | 84733020 |
| Expansion slots |
|---|
| PCI Express x1 (Gen 2.x) slots | 1 |
| PCI Express x16 (Gen 2.x) slots | 3 |
| BIOS |
|---|
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| ACPI version | 6.1 |
| Software |
|---|
| Windows operating systems supported | Windows 10 x64, Windows 7 x64 |
| Bundled software | Armoury Crate, Aura Creator, Aura Sync, AI Noise-Canceling Microphone, AI Suite 3, Performance And Power Saving Utility, TurboV EVO, EPU, Digi+ VRM, Fan Xpert 2+, EZ update, PC Cleaner, TUF GAMING, CPU-Z, AI Charger, ASUS Turbo LAN, DAEMON Tools, DTS Custom for GAMING Headsets, Norton Anti-virus software (Free Trial for 60 days), WinRAR, UEFI BIOS, ASUS EZ DIY, ASUS CrashFree BIOS 3, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode |
| Logistics data |
|---|
| Harmonized System (HS) code | 84733020 |
| Weight & dimensions |
|---|
| Height | 259 mm |
| Weight | 849 g |
| Width | 244 mm |
| Depth | 244 mm |

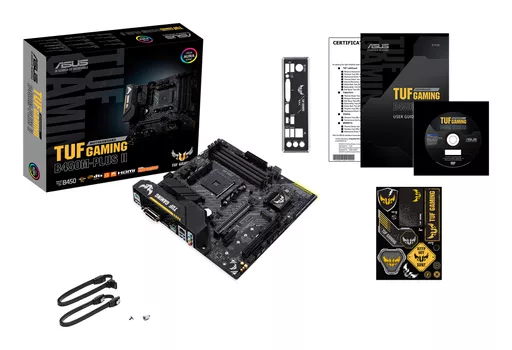

| Packaging content |
|---|
| Cables included | SATA |
| Bundled software | Armoury Crate, Aura Creator, Aura Sync, AI Noise-Canceling Microphone, AI Suite 3, Performance And Power Saving Utility, TurboV EVO, EPU, Digi+ VRM, Fan Xpert 2+, EZ update, PC Cleaner, TUF GAMING, CPU-Z, AI Charger, ASUS Turbo LAN, DAEMON Tools, DTS Custom for GAMING Headsets, Norton Anti-virus software (Free Trial for 60 days), WinRAR, UEFI BIOS, ASUS EZ DIY, ASUS CrashFree BIOS 3, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode |
| Other features |
|---|
| Height | 259 mm |
| Weight | 849 g |
