Teleproject UK


SKU: H610M D3H WIFI DDR4  |   Brand: Gigabyte

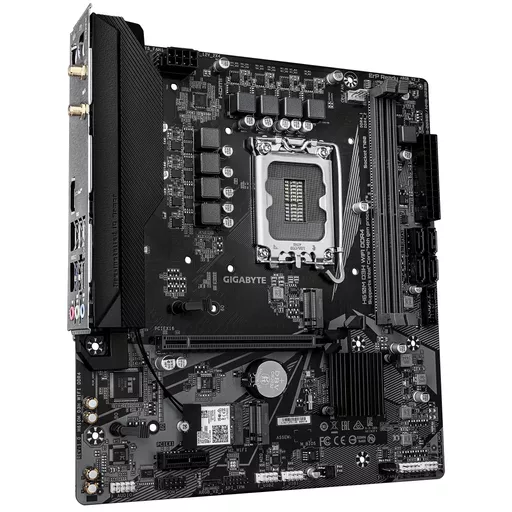

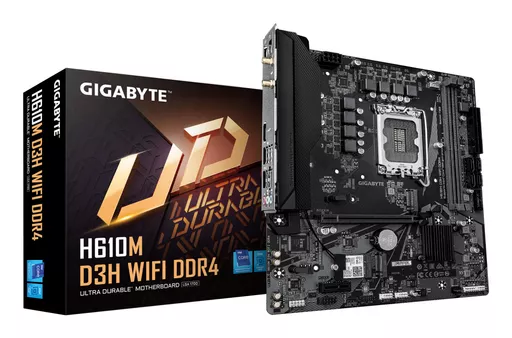

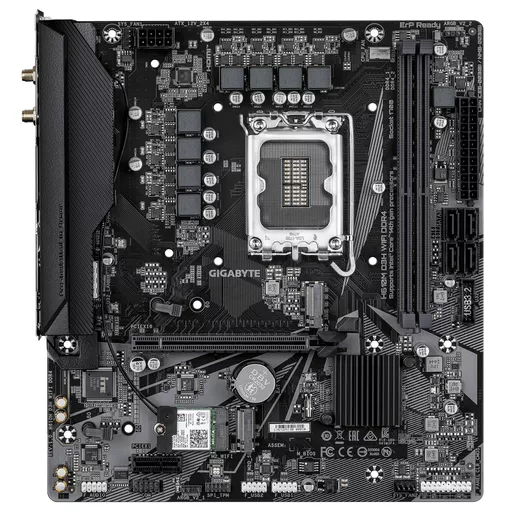

GIGABYTE H610M D3H WIFI DDR4 Motherboard - Supports 14th Gen. Intel Core CPUs, 6+1+1 phases VRM, up to 3200MHz DDR4, 2xPCIe 3.0 M.2, WIFI 5, 1GbE LAN, USB 3.2 Gen 1

SKU: H610M D3H WIFI DDR4  |   Brand: Gigabyte

GIGABYTE H610M D3H WIFI DDR4 Motherboard - Supports 14th Gen. Intel Core CPUs, 6+1+1 phases VRM, up to 3200MHz DDR4, 2xPCIe 3.0 M.2, WIFI 5, 1GbE LAN, USB 3.2 Gen 1

0 in stock

£60.94 ex. VAT

Figures are exclusive of VAT.



Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge technology.

Processor socket LGA 1700
Supported memory types DDR4-SDRAM
Number of memory slots 2 to 3
Motherboard form factor micro ATX
Component for PC
Processor manufacturer Intel
Weight 1.00kg

Internal I/O
Number of M.2 (M) slots2
USB 3.2 Gen 2 (3.1 Gen 2) connectors0
Front panel connectorYes
Supported storage drive interfacesM.2, SATA III
USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
TPM connectorYes
Serial port headers1
Number of SATA III connectors4
Number of chassis fan connectors2
Front panel audio connectorYes
EPS power connector (8-pin)Yes
CPU fan connectorYes
ATX Power connector (24-pin)Yes
RGB LED pin headerYes
Number of CPU fan connectors1
Number of EPS power connectors (8-pin)1
Number of RGB LED pin headers2
Technical details
Motherboard chipset familyIntel
Motherboard chipsetIntel H610
Supported processor socketsLGA 1700
Serial port headers1
PC health monitoringFan, Temperature, Voltage, Water cooling
Parallel processing technology supportNot supported
HDMI version2.1
Cooling typePassive
Motherboard form factormicro ATX
Component forPC
Warranty period3 year(s)
Audio
Audio output channels7.1 channels
Performance
Number of HDDs supported4
Supported storage drive typesHDD & SSD
Windows operating systems supportedWindows 10 x64, Windows 11 x64
Motherboard chipset familyIntel
Motherboard chipsetIntel H610
Supported processor socketsLGA 1700
PC health monitoringFan, Temperature, Voltage, Water cooling
Cooling typePassive
Audio output channels7.1 channels
Motherboard form factormicro ATX
Component forPC
Processor
Processor manufacturerIntel
Compatible processor seriesIntel® Celeron®, Intel Core i3 12th Gen, Intel Core i3 13th Gen, Intel Core i3 14th Gen, Intel Core i5 12th Gen, Intel Core i5 13th Gen, Intel Core i5 14th Gen, Intel Core i7 12th Gen, Intel Core i7 13th Gen, Intel Core i7 14th Gen, Intel Core i9 12th Gen, Intel Core i9 13th Gen, Intel Core i9 14th Gen, Intel® Pentium®
Supported processor socketsLGA 1700
Processor socketLGA 1700
Memory
Number of memory slots2
Memory slots typeDIMM
Supported memory typesDDR4-SDRAM
Memory channelsDual-channel
Supported memory clock speeds2133,2400,2666,2933,3000,3200 MHz
Maximum internal memory64 GB
Unbuffered memoryYes
Supported memory clock speed (max)3200 MHz
ECC сompatibilityECC & Non-ECC
Maximum internal memory per slot32 GB
Storage controllers
Number of HDDs supported4
Supported storage drive typesHDD & SSD
Supported storage drive interfacesM.2, SATA III
Number of storage drives supported6
Graphics
Parallel processing technology supportNot supported
Maximum resolution4096 x 2304 pixels
HDCPYes
DirectX version12.0

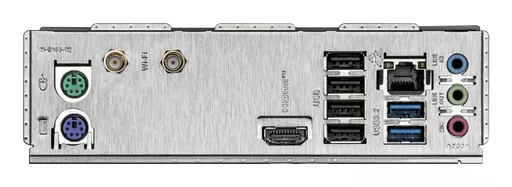

Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity0
USB 2.0 ports quantity4
WiFi-AP antenna jack2
VGA (D-Sub) ports quantity0
PS/2 ports quantity2
Microphone inYes
Headphone outputs1
HDMI version2.1
HDMI ports quantity1
Ethernet LAN (RJ-45) ports1
DVI-D ports quantity0
Line-inYes
Network
Ethernet LANYes
Wi-FiYes
Wi-Fi standards802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
LAN controllerRealtek RTL8111H
Ethernet interface typeGigabit Ethernet
BluetoothYes
Bluetooth version5.1
Top Wi-Fi standardWi-Fi 5 (802.11ac)
WLAN controller modelIntel Dual Band Wireless-AC 9560
Features
Power source typeATX
Windows operating systems supportedWindows 10 x64, Windows 11 x64
Motherboard chipset familyIntel
Motherboard chipsetIntel H610
Supported processor socketsLGA 1700
PC health monitoringFan, Temperature, Voltage, Water cooling
Cooling typePassive
Audio output channels7.1 channels
Motherboard form factormicro ATX
Component forPC
Audio chipRealtek ALC897
Product colourDark brown
Expansion slots
Number of M.2 (M) slots2
PCI Express x1 (Gen 3.x) slots1
PCI Express x16 (Gen 4.x) slots1
1st M.2 largest key size2280
1st M.2 highest PCI Express generation3.0
2nd M.2 largest key size2280
2nd M.2 highest PCI Express generation3.0
BIOS
Battery technologyLithium-Manganese Dioxide (LiMnO2)
BIOS typeUEFI AMI
Clear CMOS jumperYes
BIOS memory size128 Mbit
ACPI version5.0
System Management BIOS (SMBIOS) version2.7
Desktop Management Interface (DMI) version2.7
Power
Power source typeATX
Video
Maximum resolution4096 x 2304 pixels
HDCPYes
DirectX version12.0
Packaging data
Package width270 mm
Package depth268 mm
Package height68 mm
Package weight1.06 kg
Software
Windows operating systems supportedWindows 10 x64, Windows 11 x64
Bundled softwareNorton® Internet Security (OEM version) LAN bandwidth management software
Battery
Battery technologyLithium-Manganese Dioxide (LiMnO2)
Battery weight3 g
Number of battery cells1
Lithium weight per battery0.07 g
Battery typeCR2032
Logistics data
Products per shipping (inner) case1 pc(s)
Weight & dimensions
Height35 mm
Package width270 mm
Package depth268 mm
Package height68 mm
Package weight1.06 kg
Weight930 g
Width244 mm
Depth220 mm
Packaging content
Bundled softwareNorton® Internet Security (OEM version) LAN bandwidth management software
Batteries includedYes
Screws includedYes
Antenna includedYes
Other features
Height35 mm
Package width270 mm
Package depth268 mm
Package height68 mm
Package weight1.06 kg
Weight930 g
