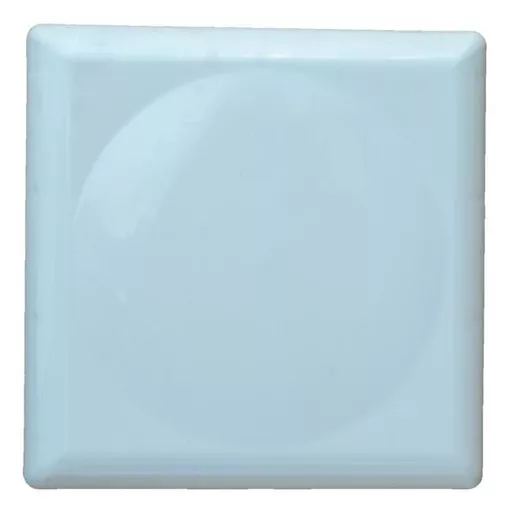

HPE Aruba Networking S0A65A network antenna MIMO directional antenna N-type 7.5 dBi

SKU: S0A65A | Brand: HPE

0 in stock

£460.43 ex. VAT

Figures are exclusive of VAT.

Performance
Antenna gain level (max)	7.5 dBi
Frequency band	2.4 - 2.5/4.9 - 6 GHz
Vertical beam width (5 GHz)	56°
Vertical beam width (2.4 GHz)	70°
Impedance	50 Ω
Horizontal beam width (5 GHz)	56°
Horizontal beam width (2.4 GHz)	70°
Antenna gain (5 GHz)	7.5 dBi
Antenna gain (2.4 GHz)	7.5 dBi
Features
Housing material	Aluminium, Plastic
Connector gender	Female
Antenna type	MIMO directional antenna
Voltage Standing Wave Ratio (VSWR)	2:1
Polarization	Dual polarization
Mounting	Wall/Pole
Antenna connector type	N-type
Antenna gain level (max)	7.5 dBi
Frequency band	2.4 - 2.5/4.9 - 6 GHz
Vertical beam width (5 GHz)	56°
Vertical beam width (2.4 GHz)	70°
Impedance	50 Ω
Horizontal beam width (5 GHz)	56°
Horizontal beam width (2.4 GHz)	70°
Antenna gain (5 GHz)	7.5 dBi
Antenna gain (2.4 GHz)	7.5 dBi
Operational conditions
Operating temperature (T-T)	-45 - 70 °C
Weight & dimensions
Weight	1 kg
Width	190 mm
Depth	31 mm
Height	190 mm
Technical details
Antenna gain level (max)	7.5 dBi
Frequency band	2.4 - 2.5/4.9 - 6 GHz
Antenna type	MIMO directional antenna
Voltage Standing Wave Ratio (VSWR)	2:1
Vertical beam width (5 GHz)	56°
Vertical beam width (2.4 GHz)	70°
Polarization	Dual polarization
Mounting	Wall/Pole
Impedance	50 Ω
Horizontal beam width (5 GHz)	56°
Horizontal beam width (2.4 GHz)	70°
Antenna gain (5 GHz)	7.5 dBi
Antenna gain (2.4 GHz)	7.5 dBi
Antenna connector type	N-type
