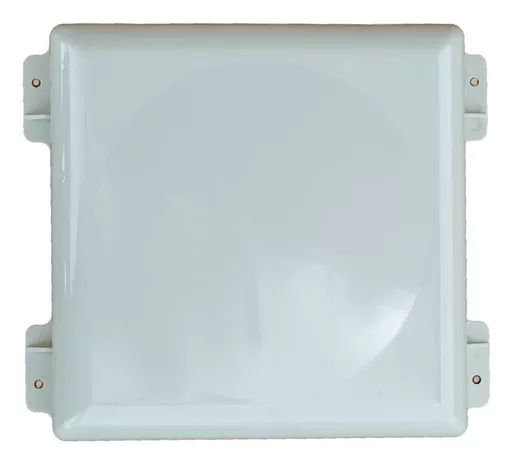

HPE S0A66A network antenna MIMO directional antenna RP-SMA 7.5 dBi

SKU: S0A66A | Brand: HPE

HPE S0A66A network antenna MIMO directional antenna RP-SMA 7.5 dBi

0 in stock

£319.04 ex. VAT

Figures are exclusive of VAT.

+ Description

AP-ANT-28A is a dual-polarized antenna with nominal 60° H x 60° V beamwidths. This antenna is well suited for 2.4-GHz and 5-GHz sector coverage for Wi-Fi access.

+ Tech Specs

Attributes

Performance
Antenna gain level (max)	7.5 dBi
Frequency band	2.4/5 GHz
Vertical beam width (5 GHz)	56°
Vertical beam width (2.4 GHz)	70°
Impedance	50 Ω
Horizontal beam width (5 GHz)	56°
Horizontal beam width (2.4 GHz)	70°
Features
Housing material	Aluminium, Plastic
Antenna type	MIMO directional antenna
Voltage Standing Wave Ratio (VSWR)	2:1
Antenna connector type	RP-SMA
Antenna gain level (max)	7.5 dBi
Frequency band	2.4/5 GHz
Vertical beam width (5 GHz)	56°
Vertical beam width (2.4 GHz)	70°
Impedance	50 Ω
Horizontal beam width (5 GHz)	56°
Horizontal beam width (2.4 GHz)	70°
Operational conditions
Operating temperature (T-T)	-45 - 65 °C
Weight & dimensions
Weight	700 g
Width	190 mm
Depth	190 mm
Height	40 mm
Technical details
Antenna gain level (max)	7.5 dBi
Frequency band	2.4/5 GHz
Antenna type	MIMO directional antenna
Voltage Standing Wave Ratio (VSWR)	2:1
Vertical beam width (5 GHz)	56°
Vertical beam width (2.4 GHz)	70°
Impedance	50 Ω
Horizontal beam width (5 GHz)	56°
Horizontal beam width (2.4 GHz)	70°
Antenna connector type	RP-SMA
