Performance |
---|

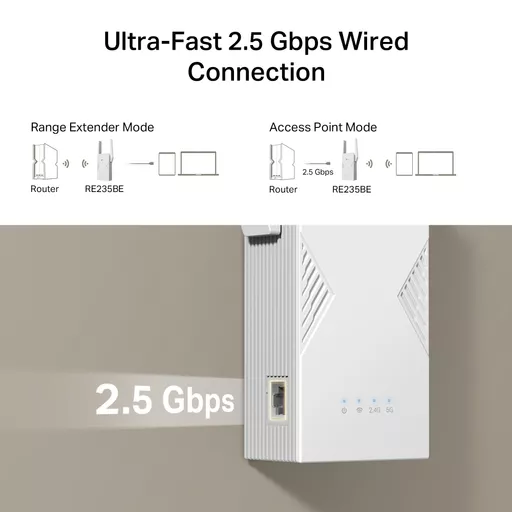

Ethernet LAN data rates | 2500 Mbit/s |
Windows operating systems supported | Windows 10, Windows 2000, Windows 7, Windows 8, Windows 8.1, Windows 98SE, Windows NT, Windows Vista, Windows XP |
Mac operating systems supported | MacOS |
Linux operating systems supported | Yes |
Browser supported | Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser |

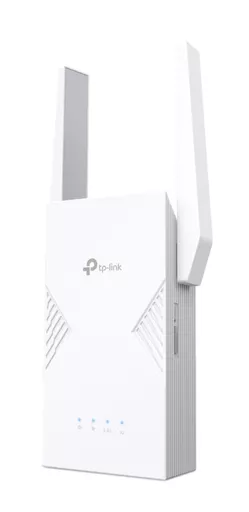

Type | Network transmitter & receiver |

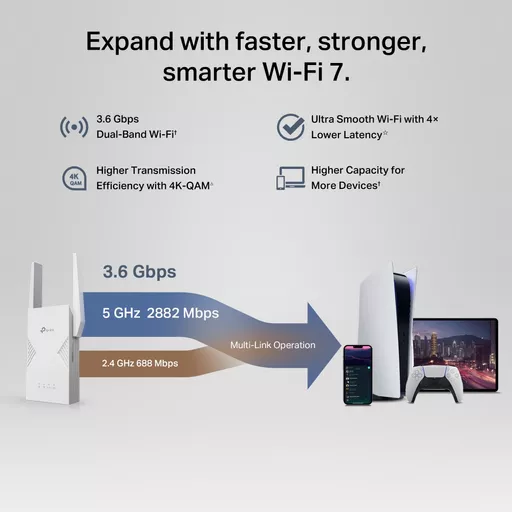

Data transfer rate | 2882 Mbit/s |

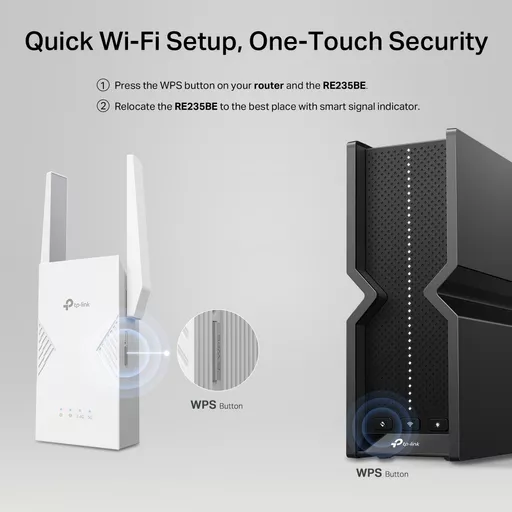

WPS push button | Yes |
Antenna |
---|
Antennas quantity | 2 |
Antenna type | External |
Transmitting power (FCC) | 30 dBm |
Network |
---|
Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 7 (802.11be) |
Wi-Fi | Yes |
Security algorithms | WPA, WPA2-PSK, WPA3 |
Bandwidth | 0.32 GHz |
Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
Ports & interfaces |
---|
Ethernet LAN (RJ-45) ports | 1 |
Design |
---|
Reset button | Yes |
Product colour | White |
Quantity per pack | 1 pc(s) |
Power |
---|
Power plug type | Type B |
AC input voltage | 100-240 V |
AC input frequency | 50/60 Hz |
Input current | 0.3 A |
Power consumption (typical) | 15 W |
Operational conditions |
---|
Operating temperature (T-T) | 0 - 40 °C |
Storage temperature (T-T) | -40 - 70 °C |
Operating relative humidity (H-H) | 10 - 90% |
Storage relative humidity (H-H) | 5 - 90% |
Weight & dimensions |
---|
Width | 97 mm |
Depth | 46 mm |
Height | 158 mm |
Packaging content |
---|
Quick start guide | Yes |
Packaging data |
---|
Package type | Box |
Technical details |
---|
Reset button | Yes |
Antennas quantity | 2 |
Ethernet LAN data rates | 2500 Mbit/s |
Type | Network transmitter & receiver |
Data transfer rate | 2882 Mbit/s |
WPS push button | Yes |
Compliance certificates | CE, Federal Communications Commission (FCC), RoHS, UKCA |
Colour |
---|
Product colour | White |
System requirements |
---|
Windows operating systems supported | Windows 10, Windows 2000, Windows 7, Windows 8, Windows 8.1, Windows 98SE, Windows NT, Windows Vista, Windows XP |
Mac operating systems supported | MacOS |
Linux operating systems supported | Yes |
Browser supported | Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser |
Certificates |
---|
Compliance certificates | CE, Federal Communications Commission (FCC), RoHS, UKCA |
Features |
---|
Networking features | Multi-Link Operation (MLO), 320 MHz Channel, 4K-QAM, Multi-RUs |
