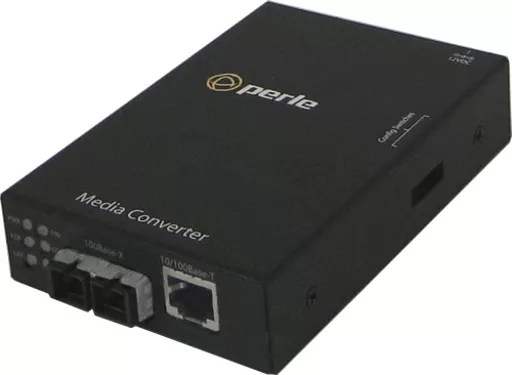

Perle S-110-M2ST2-XT network media converter 100 Mbit/s 1310 nm Multi-mode Black

SKU: 05090010 | Brand: Perle

0 in stock

£238.73 ex. VAT

Figures are exclusive of VAT.

10/100 Fast Ethernet Stand-Alone Industrial Temperature Media Rate Converter.

Internal	N

Network
Converter input interface	100Base-TX
Ethernet LAN data rates	10,100 Mbit/s
Ethernet interface type	Fast Ethernet
Converter output interface	100Base-FX
Maximum data transfer rate	100 Mbit/s
Fiber optic connector	SC
Performance
Wavelength	1310 nm
Maximum transfer distance	2000 m
Fiber mode structure	Multi-mode
Tx power (min)	-20 dBmW
Tx power (max)	-12 dBmW
Rx power (min)	-31 dBmW
Rx power (max)	-14 dBmW
Mean time between failures (MTBF)	607001 h
Link budget	11 dB
Features
LED indicators	Yes
Product colour	Black
Internal	No
Ports & interfaces
Connectivity technology	Wired
Ethernet LAN (RJ-45) ports	1
Fiber ports quantity	1
Fiber optic connector	SC
DC-in jack	Yes
Power
Input voltage	12 V
Power consumption (typical)	2.1 W
Weight & dimensions
Weight	300 g
Dimensions (WxDxH)	80 x 120 x 26 mm
Operational conditions
Operating temperature (T-T)	-40 - 75 °C
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	5 - 90%
Storage relative humidity (H-H)	5 - 95%
Technical details
Wavelength	1310 nm
Maximum transfer distance	2000 m
Fiber mode structure	Multi-mode
Tx power (min)	-20 dBmW
Tx power (max)	-12 dBmW
Rx power (min)	-31 dBmW
Rx power (max)	-14 dBmW
Link budget	11 dB
Internal	No
Indication
LED indicators	Yes
Design
Safety	IEC 60825-1:2007
LED indicators	Yes
Product colour	Black
Certification	FCC, EN 55022 B, EN 55024 A
Internal	No
Endurance
Mean time between failures (MTBF)	607001 h
Colour
Product colour	Black
Certificates
Safety	IEC 60825-1:2007
Certification	FCC, EN 55022 B, EN 55024 A
Other features
Link budget	11 dB
Dimensions (WxDxH)	80 x 120 x 26 mm
