SKU: 05090040  |   Brand: Perle

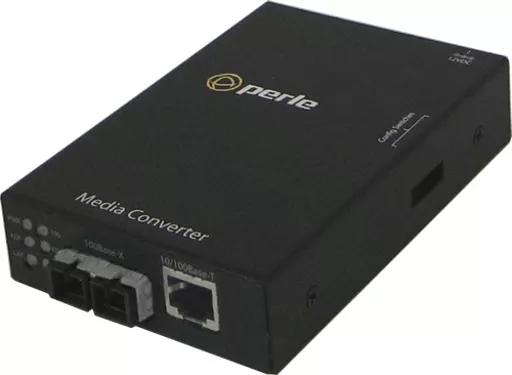

Perle S-110-S2ST20-XT network media converter 100 Mbit/s 1310 nm Single-mode Black

SKU: 05090040  |   Brand: Perle

Perle S-110-S2ST20-XT network media converter 100 Mbit/s 1310 nm Single-mode Black

0 in stock

£488.52 ex. VAT

Figures are exclusive of VAT.



10/100 Fast Ethernet Stand-Alone Industrial Temperature Media Rate Converter.

Internal N

Network
Converter input interface100Base-TX
Ethernet LAN data rates10,100 Mbit/s
Ethernet interface typeFast Ethernet
Maximum data transfer rate100 Mbit/s
Fiber optic connectorST
Performance
Wavelength1310 nm
Maximum transfer distance20000 m
Fiber mode structureSingle-mode
Fiber cable diameters supported (core/cladding)9/125 µm
Tx power (min)-15 dBmW
Tx power (max)-8 dBmW
Rx power (min)-32 dBmW
Rx power (max)-3 dBmW
Mean time between failures (MTBF)607001 h
Link budget17 dB
Features
LED indicatorsYes
Product colourBlack
InternalNo
Ports & interfaces
Connectivity technologyWired
Ethernet LAN (RJ-45) ports1
Fiber ports quantity1
Fiber optic connectorST
DC-in jackYes
Power
Input voltage12 V
Power consumption (typical)2.1 W
Weight & dimensions
Weight300 g
Dimensions (WxDxH)80 x 120 x 26 mm
Operational conditions
Operating temperature (T-T)-40 - 75 °C
Storage temperature (T-T)-40 - 85 °C
Operating relative humidity (H-H)5 - 90%
Storage relative humidity (H-H)5 - 95%
Technical details
Wavelength1310 nm
Maximum transfer distance20000 m
Fiber mode structureSingle-mode
Fiber cable diameters supported (core/cladding)9/125 µm
Tx power (min)-15 dBmW
Tx power (max)-8 dBmW
Rx power (min)-32 dBmW
Rx power (max)-3 dBmW
Link budget17 dB
InternalNo
Indication
LED indicatorsYes
Design
SafetyIEC 60825-1:2007
LED indicatorsYes
Product colourBlack
CertificationFCC, EN 55022 B, EN 55024 A
InternalNo
Endurance
Mean time between failures (MTBF)607001 h
Colour
Product colourBlack
Certificates
SafetyIEC 60825-1:2007
CertificationFCC, EN 55022 B, EN 55024 A
Other features
Link budget17 dB
Dimensions (WxDxH)80 x 120 x 26 mm
