Perle S-1110-SFP-XT network media converter 1000 Mbit/s

SKU: 05090750  |   Brand: Perle

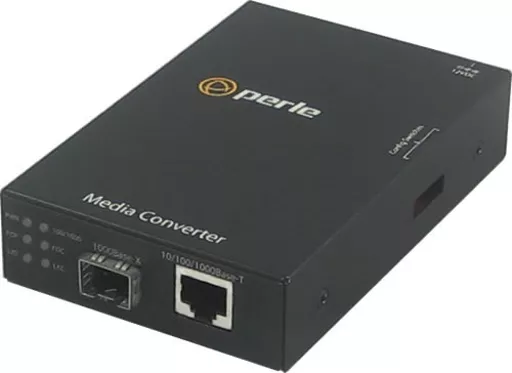

Perle S-1110-SFP-XT network media converter 1000 Mbit/s

0 in stock

£307.55 ex. VAT

Figures are exclusive of VAT.



SFP Slot, 10/100/1000BASE-T (RJ-45) [100 m/328 ft.] to 1000BASE-X or 100BASE-X - SFP Slot (empty). Extended Temperature, terminal block power connector for external power source . Perle's Industrial Temperature Media Converters transparently connect copper to fiber in locations that are exposed to harsh extended temperatures of -40F to 167F ( -40C to 75C ).

Internal N

Network
Fiber optic connectorSFP
Converter input interface1000Base-T, 100Base-TX, 10Base-T
Ethernet LAN data rates10,100,1000 Mbit/s
Ethernet interface typeGigabit Ethernet
Duplex systemFull, Half
Converter output interface1000Base-X
Auto MDI/MDI-XYes
Maximum data transfer rate1000 Mbit/s
Technical details
Package length21 cm
Maximum transfer distance100 m
Hot-swapYes
InternalNo
Compliance certificatesRoHS
Performance
Hot-swapYes
Maximum transfer distance100 m
Mean time between failures (MTBF)576450 h
Weight & dimensions
Dimensions (WxDxH)120 x 80 x 26 mm
Weight300 g
Package width150 mm
Package height40 mm
Package weight430 g
Ports & interfaces
Connectivity technologyWired
Ethernet LAN (RJ-45) ports1
Fiber ports quantity1
Fiber optic connectorSFP
DC-in jackYes
Indication
LED indicatorsYes
Design
SafetyUL 60950-1, EN60950, CE
LED indicatorsYes
CertificationFCC 15 A, EN55022 A CISPR 22 A EN61000-3-2 EN55024 Reach, WEEE ECCN: 5A991A
InternalNo
Endurance
Mean time between failures (MTBF)576450 h
Power
Input voltage12 V
Power consumption (typical)2.1 W
External power adapterYes
Management features
Hot-swapYes
Operational conditions
Operating temperature (T-T)-40 - 75 °C
Storage temperature (T-T)-40 - 85 °C
Operating relative humidity (H-H)5 - 90%
Storage relative humidity (H-H)5 - 95%
Operating altitude0 - 3048 m
Packaging data
Package width150 mm
Package length21 cm
Package height40 mm
Package weight430 g
Certificates
SafetyUL 60950-1, EN60950, CE
CertificationFCC 15 A, EN55022 A CISPR 22 A EN61000-3-2 EN55024 Reach, WEEE ECCN: 5A991A
Other features
Package length21 cm
Dimensions (WxDxH)120 x 80 x 26 mm
