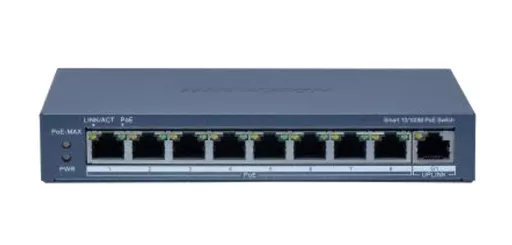

Hikvision DS-3E1309P-EI(B) network switch Managed Fast Ethernet (10/100) Power over Ethernet (PoE)

SKU: DS-3E1309P-EI(B) | Brand: Hikvision

0 in stock

£65.99 ex. VAT

Figures are exclusive of VAT.

8 Port Fast Ethernet Smart PoE Switch

+ Tech Specs

Basic switching RJ-45 Ethernet ports type	Fast Ethernet (10/100)
Basic switching RJ-45 Ethernet ports quantity	8 to 9
Switch type	Managed
Power over Ethernet (PoE)	Y

Management features
Switch type	Managed
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	9
Basic switching RJ-45 Ethernet ports type	Fast Ethernet (10/100)
Network
Networking standards	IEEE 802.3af, IEEE 802.3at
Ethernet LAN data rates	10,100 Mbit/s
10G support	No
Optical fiber
Transmission distance (max)	0.3 km
Data transmission
Packet buffer memory	4096 MB
MAC address table	8000 entries
Switching capacity	5.6 Gbit/s
Power
Power consumption (max)	120 W
Input current	2.22 A
DC input voltage	54 V
Power source	PoE
Power over Ethernet (PoE)
Power over Ethernet (PoE) power per port	30 W
Total Power over Ethernet (PoE) budget	110 W
Power over Ethernet (PoE)	Yes
Operational conditions
Storage temperature (T-T)	-40 - 85 °C
Storage relative humidity (H-H)	5 - 95%
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95%
Weight & dimensions
Width	170 mm
Depth	93.1 mm
Height	27.6 mm
Weight	350 g
Packaging data
Package weight	1.11 kg
Performance
Packet buffer memory	4096 MB
Memory
Packet buffer memory	4096 MB
Other features
Ethernet LAN data rates	10,100 Mbit/s
