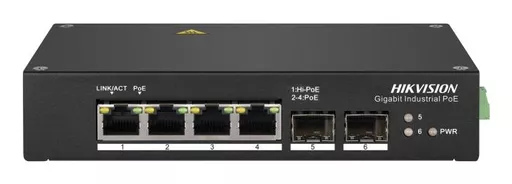

Hikvision DS-3T0506HP Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

SKU: 301803166 | Brand: Hikvision

Hikvision DS-3T0506HP Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

0 in stock

£57.82 ex. VAT

Figures are exclusive of VAT.

+ Description

The Hikvision DS-3T0506HP unmanaged industrial switch can support four Gigabit PoE Ports and two Gigabit SFP Fiber Optical Ports. Designed for harsh industrial environments, it can provide an economical solution for your industrial Ethernet connection. The DS-3T0506HP PoE model supports centralized power supply and each port provides 30 W power. The operating temperature of industrial switches ranges from -40 °C to 75 °C. All models undergo rigorous aging tests to ensure they meet the specific needs of industrial automation control applications. In addition, the DS-3T0506HP unmanaged switch features a rugged aluminum alloy housing that ensures suitability for industrial environments and an option for fiber connection.

+ Tech Specs

Basic switching RJ-45 Ethernet ports quantity	3 to 4
Rack mounting	N
Power over Ethernet (PoE)	Y
Stackable	N
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Switch type	Unmanaged
Weight	940.00kg

Attributes

Management features
Switch type	Unmanaged
Ports & interfaces
SFP module slots quantity	2
Basic switching RJ-45 Ethernet ports quantity	4
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Gigabit Ethernet (copper) ports quantity	4
Power connector	DC-in jack
Switching optical modules type	Gigabit Ethernet
Network
Networking standards	IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
Ethernet LAN data rates	1000 Mbit/s
10G support	No
Optical fiber
Switching optical modules type	Gigabit Ethernet
Data transmission
Packet buffer memory	1 MB
MAC address table	2000 entries
Switching capacity	12 Gbit/s
Forwarding rate	8.93 Mpps
Design
DIN rail mounting	Yes
Safety	CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368- 1: 2014+A11: 2017)
Product colour	Black
Stackable	No
LED indicators	Yes
Housing material	Aluminium
Rack mounting	No
Performance
Fanless	Yes
Packet buffer memory	1 MB
Stackable	No
Power
Power consumption (max)	120 W
Power protection features	Surge protection
Surge protection voltage	6 kV
Power consumption (typical)	10 W
Input current	2.5 A
DC input voltage	48 - 57 V
Surge protection	Yes
Power source	DC
Power connector	DC-in jack
Power over Ethernet (PoE)
Power over Ethernet (PoE) power per port	30 W
Total Power over Ethernet (PoE) budget	110 W
Power over Ethernet (PoE) ports quantity	4
Power over Ethernet (PoE)	Yes
Power protection features	Surge protection
Operational conditions
Storage temperature (T-T)	-40 - 85 °C
Storage relative humidity (H-H)	5 - 95%
Operating temperature (T-T)	-40 - 75 °C
Operating relative humidity (H-H)	5 - 95%
Weight & dimensions
Width	158 mm
Depth	31.6 mm
Height	101.2 mm
Weight	380 g
Packaging content
Quick start guide	Yes
Packaging data
Package weight	940 g
Quick start guide	Yes
Sustainability
Sustainability compliance	Yes
Technical details
Product colour	Black
Stackable	No
Housing material	Aluminium
Rack mounting	No
Sustainability compliance	Yes
Compliance certificates	CB, Electromagnetic Compatibility (EMC), Low Voltage Directive (LVD), REACH, RoHS, WEEE
Certificates
Safety	CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368- 1: 2014+A11: 2017)
Compliance certificates	CB, Electromagnetic Compatibility (EMC), Low Voltage Directive (LVD), REACH, RoHS, WEEE
Memory
Packet buffer memory	1 MB
Indication
LED indicators	Yes
Other features
Ethernet LAN data rates	1000 Mbit/s
