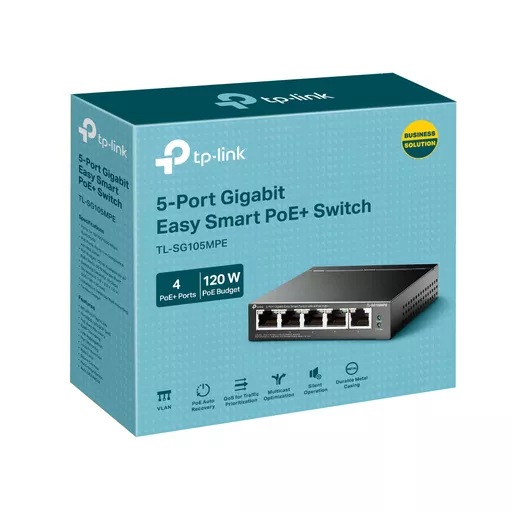

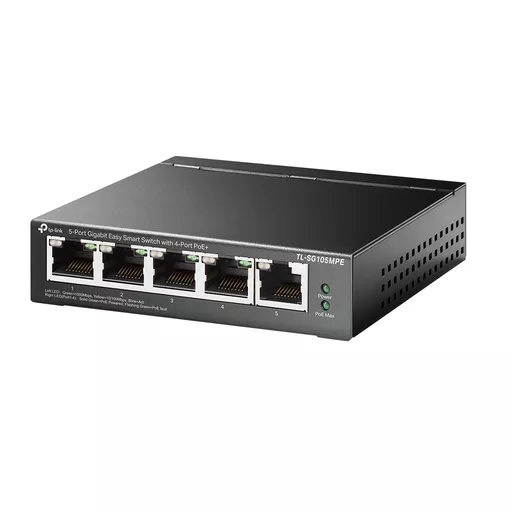

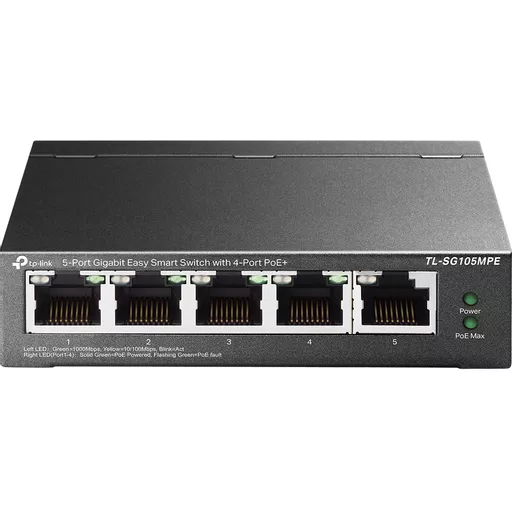

TP-Link 5-Port Gigabit Easy Smart Switch with 4-Port PoE+

SKU: TL-SG105MPE | Brand: TP-LINK

2 in stock

£78.72 ex. VAT

Figures are exclusive of VAT.

Basic switching RJ-45 Ethernet ports quantity	4 to 5
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Power over Ethernet (PoE)	Y
Rack mounting	N
Weight	2,760.00kg

Management features
Web-based management	Yes
Switch layer	L2
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	5
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Network
Networking standards	IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Rate limiting	Yes
Port mirroring	Yes
Broadcast storm control	Yes
10G support	No
IGMP snooping	Yes
Data transmission
Jumbo frames	16
MAC address table	2000 entries
Switching capacity	10 Gbit/s
Jumbo frames support	Yes
Static route	Yes
Forwarding rate	7.44 Mpps
Security
Loop protection	Yes
IGMP snooping	Yes
Design
Product colour	Black
Rack mounting	No
Power
Power consumption (max)	137.01 W
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
DC input voltage	53.5 V
Power source	DC/PoE
Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget	120 W
Power over Ethernet (PoE)	Yes
Operational conditions
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 95%
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90%
Weight & dimensions
Width	99.8 mm
Depth	98 mm
Height	25 mm
Packaging content
Cables included	LAN (RJ-45)
Packaging data
Package width	250 mm
Package depth	528 mm
Package height	80 mm
Package weight	2.76 kg
Cables included	LAN (RJ-45)
Technical details
Product colour	Black
Rack mounting	No
