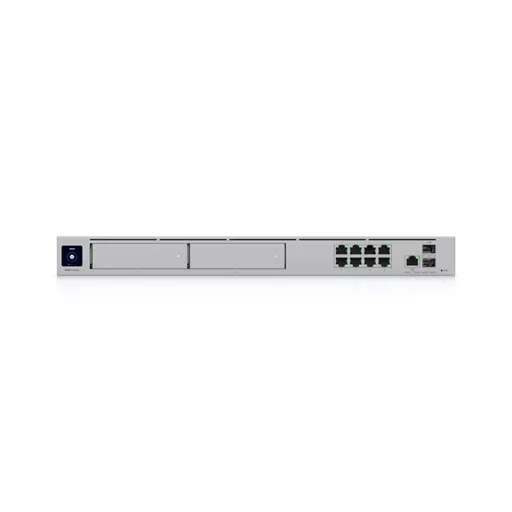

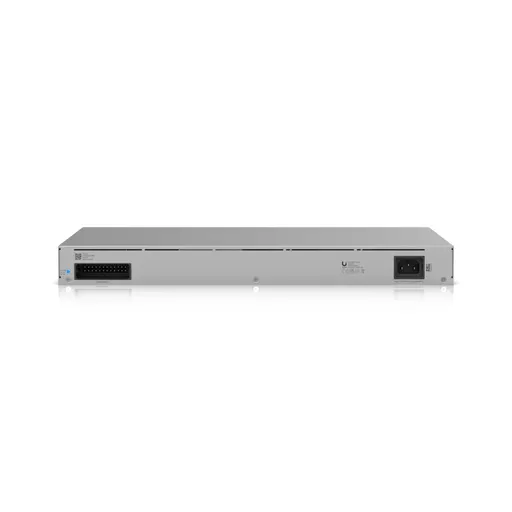

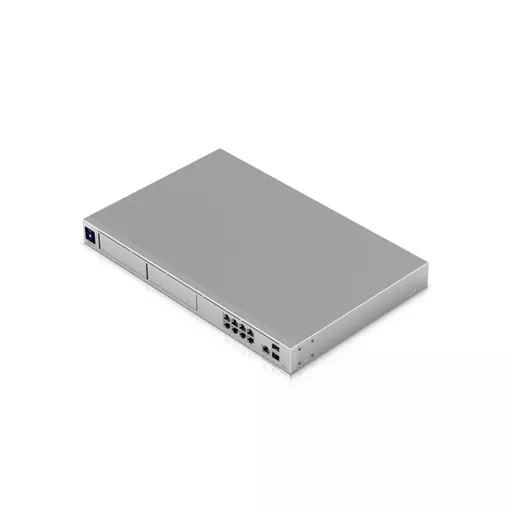

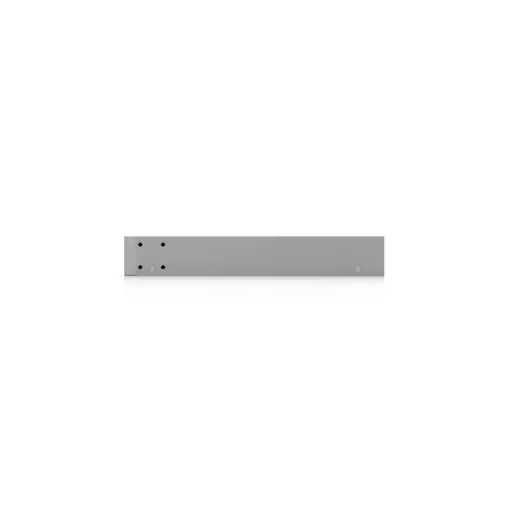

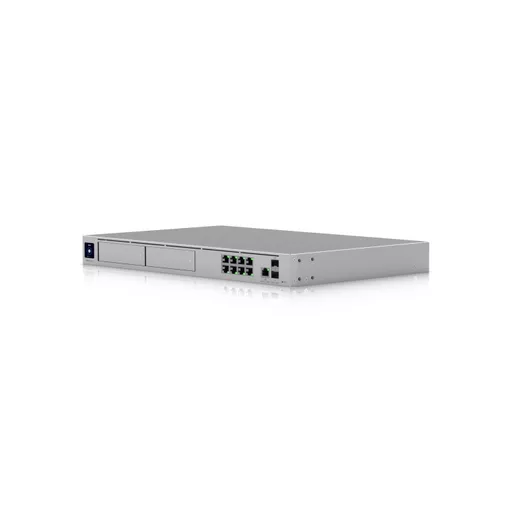

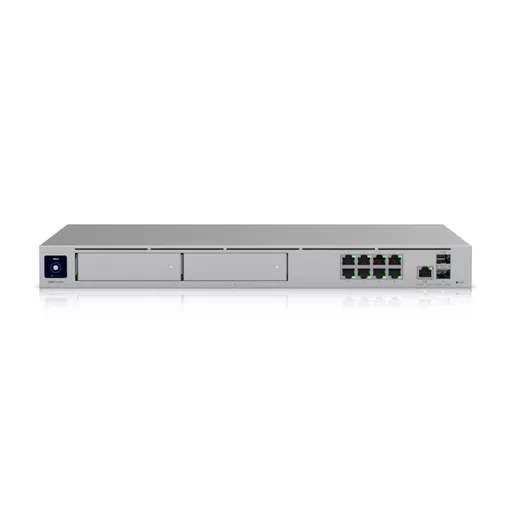

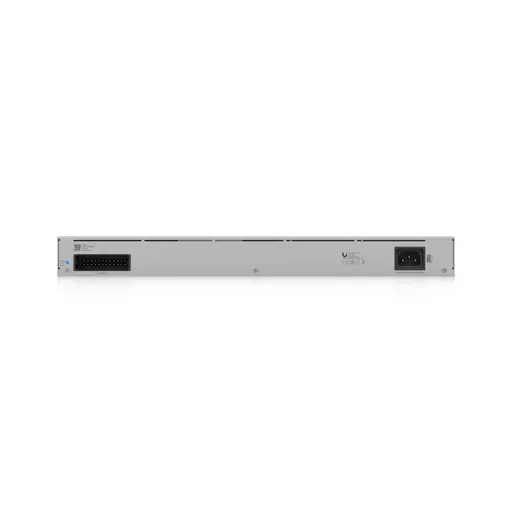

Ubiquiti UniFi Dream Machine Pro Max Managed 2.5G Ethernet (100/1000/2500) 1U Grey

SKU: UDM-PRO-MAX | Brand: Ubiquiti

Ubiquiti UniFi Dream Machine Pro Max Managed 2.5G Ethernet (100/1000/2500) 1U Grey

1 in stock

£483.53 ex. VAT

Figures are exclusive of VAT.

+ Description

Professional-grade, rack-mount Cloud Gateway with 10 Gbps performance, multi-WAN load balancing, and two NVR drive bays designed for large-scale, multi-application UniFi sites.

+ Tech Specs

Basic switching RJ-45 Ethernet ports type	2.5G Ethernet (100/1000/2500)
Rack mounting	Y
Power over Ethernet (PoE)	N
Stackable	N
Basic switching RJ-45 Ethernet ports quantity	8 to 9
Switch type	Managed
Family	UniFi
Weight	4,700.00kg

Attributes

Management features
Reset button	Yes
Switch type	Managed
Quality of Service (QoS) support	Yes
Ports & interfaces
SFP+ module slots quantity	2
Basic switching RJ-45 Ethernet ports quantity	9
Basic switching RJ-45 Ethernet ports type	2.5G Ethernet (100/1000/2500)
Gigabit Ethernet (copper) ports quantity	1
Power connector	DC-in jack
2.5G Ethernet (copper) ports quantity	1
Network
VLAN support	Yes
Ethernet LAN data rates	10,100,1000,2500 Mbit/s
10G support	Yes
Policy-based routing	Yes
Virtual LAN features	IP subnet–based VLAN
IGMP proxy	Yes
Data transmission
Throughput	5 Gbit/s
Security
IGMP proxy	Yes
DHCP features	DHCP relay, DHCP server
Design
Reset button	Yes
Display type	LCM
Form factor	1U
Product colour	Grey
Stackable	No
LED indicators	Activity, Error, Link, Ready
Housing material	Aluminium, Galvanized steel
Rack mounting	Yes
Performance
Processor frequency	2000 MHz
Memory type	DDR4-SDRAM
Internal memory	8000 MB
Flash memory	32000 MB
Built-in processor	Yes
Processor model	ARM Cortex-A57
Stackable	No
Power
Power consumption (max)	60 W
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Redundant power supply (RPS) support	Yes
Number of power supply units	1
Input current	2 A
DC input voltage	12 V
Power source	AC/DC
Power connector	DC-in jack
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Operational conditions
Operating temperature (T-T)	-10 - 40 °C
Operating relative humidity (H-H)	5 - 95%
Virtual LAN features
VLAN support	Yes
Virtual LAN features	IP subnet–based VLAN
Weight & dimensions
Width	442.4 mm
Depth	285.6 mm
Height	43.7 mm
Weight	4.7 kg
Packaging content

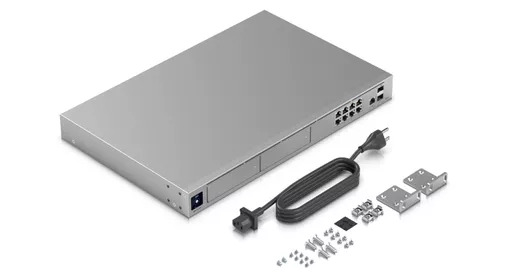

Rack mount kit	Yes
User guide	Yes
Cables included	AC
Sustainability
Sustainability compliance	Yes
Technical details
Form factor	1U
Product colour	Grey
Stackable	No
Processor frequency	2000 MHz
Housing material	Aluminium, Galvanized steel
Rack mounting	Yes
Built-in processor	Yes
Sustainability compliance	Yes
Compliance certificates	CE, Federal Communications Commission (FCC), Industry Canada (IC)
Memory
Memory type	DDR4-SDRAM
Internal memory	8000 MB
Flash memory	32000 MB
Certificates
Compliance certificates	CE, Federal Communications Commission (FCC), Industry Canada (IC)
Indication
LED indicators	Activity, Error, Link, Ready
Packaging data
Rack mount kit	Yes
User guide	Yes
Cables included	AC
Other features
Ethernet LAN data rates	10,100,1000,2500 Mbit/s
