SKU: XRN-3220B2  |   Brand: HANWHA

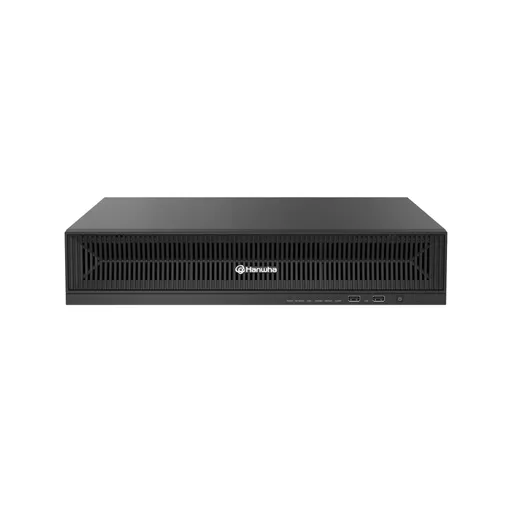

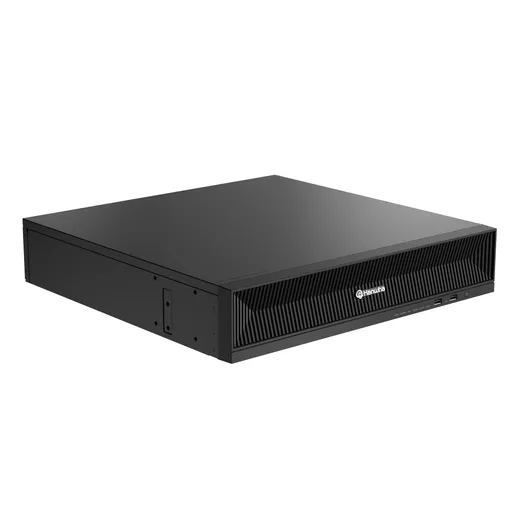

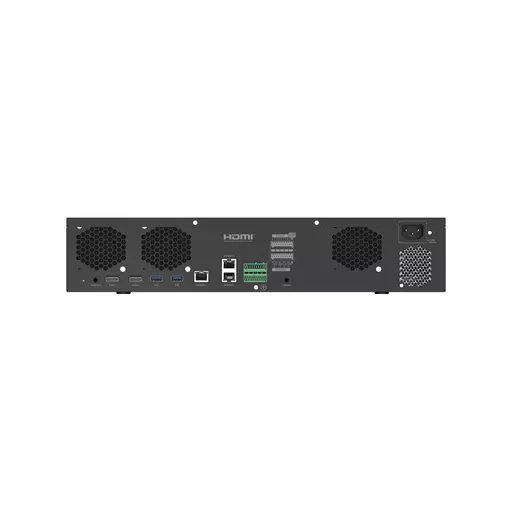

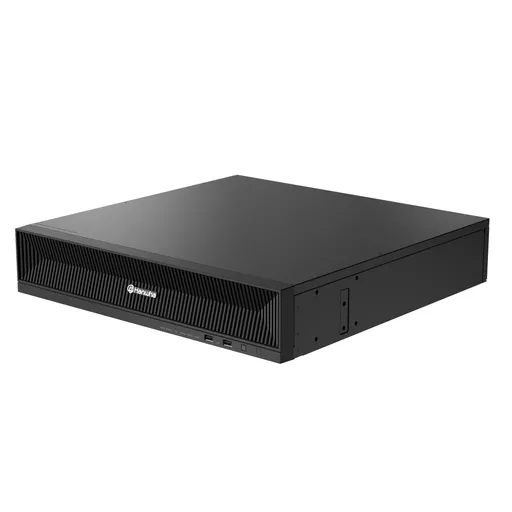

Hanwha XRN-3220B2 network video recorder Black

SKU: XRN-3220B2  |   Brand: HANWHA

Hanwha XRN-3220B2 network video recorder Black

0 in stock

£1,712.05 ex. VAT

Figures are exclusive of VAT.



NDAA compliant with Intel® 12th generation processor & TPM applied for enhanced cybersecurity
Hanwha Vision, a global vision solution provider, launched X series NVR lineup is equipped with Intel® 12th generation processor, making it compliant with NDAA. It also has built-in TPM which provides robust cybersecurity.

Easy to install : Camera Setting Palette
X series NVR provides camera setting palette, which is the feature only available in Hanwha Vision NVRs. Users may view expected network bandwidth, space, and recordable days through camera setting palette. The feature also provide settings such as lighting times, recording schedules, and video profiles, that suit the usage environment, which could be modified. This makes the installation process convenient and easy.

Convenient operation : Dynamic Layout and Virtual Channels
In order to meet various purposes and screen layouts, Hanwha Vision’s NVR supports “Dynamic Layout” which allows users to freely adjust the image layout and size, and “Virtual Channels” which allows users to monitor multiple live channels, while one main channel is being monitored and recorded.

Convenient operation : Manual Event Setting
Users can manually generate executable event icons on the live screen. Various operations such as I/O control, wiper operation, focus adjustment and setting change can be performed remotely with one click.

Weight 0.01kg

Performance
Video input channels32 channels
Alarm input channels8
Alarm output channels4
Maximum resolution3840 x 2160 pixels
Video formats supportedH.264, H.265, M-JPEG
Supported network protocolsIPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, RTCP, NTP, HTTP, DHCP (Server, Client), SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI(Server, Client)
Languages supportMulti
Backup functionYes
Audio formats supportedAAC, G.711, G.726
Built-in processorYes
SyslogYes
PTZ controlYes
Playback modesFast play, Forward, Reverse, Slow play
Ethernet LAN data rates10,100,1000 Mbit/s
Recording modesContinuous, Event, Schedule
Audio system2-way
Video loss detectionYes
Operating system installedEmbedded LINUX
Number of simultaneously playbacked channels80 channels
Input bandwidth520 Mbit/s
Wireless LAN features
Wi-FiNo
Hard drive
Number of HDDs supported8
Total installed storage capacity0 GB
Maximum storage capacity80 TB
HDD interfaceSATA
Storage
Number of HDDs supported8
Total installed storage capacity0 GB
Maximum storage capacity80 TB
HDD interfaceSATA
Ports & interfaces
Ethernet LAN (RJ-45) ports3
USB 2.0 ports quantity2
Supported network protocolsIPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, RTCP, NTP, HTTP, DHCP (Server, Client), SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI(Server, Client)
Audio output3.5mm
Ethernet LAN data rates10,100,1000 Mbit/s
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
HDMI ports quantity2
Ethernet WANYes
Features
Product colourBlack
Processor
Built-in processorYes
Power
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Power consumption (max)143 W
System requirements
Windows operating systems supportedWindows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64
Mac operating systems supportedMac OS X 14.0 Sonoma, Mac OS X 15.0 Sequoia
Browser supportedGoogle Chrome, Microsoft Edge, Mac Safari
Mac compatibilityYes
Operational conditions
Operating temperature (T-T)0 - 40 °C
Operating relative humidity (H-H)20 - 85%
Weight & dimensions
Width438 mm
Depth434.9 mm
Height86 mm
Weight7.3 kg
