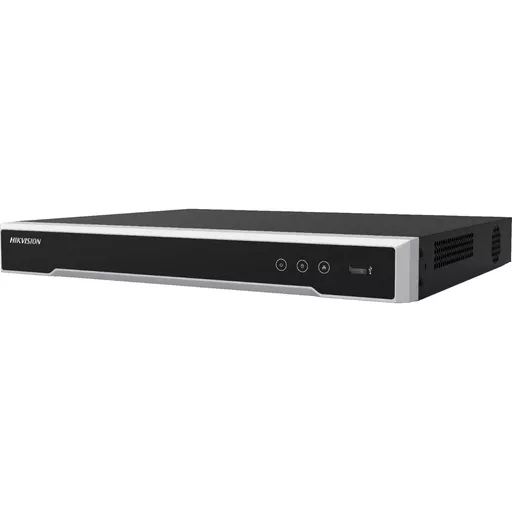

Hikvision DS-7616NI-M2/16P network video recorder 1U Black

SKU: DS-7616NI-M2/16P | Brand: Hikvision

Hikvision DS-7616NI-M2/16P network video recorder 1U Black

6 in stock

£376.30 ex. VAT

Figures are exclusive of VAT.

+ Description

Professional and Reliability
- H.265+ compression effectively reduces the storage space by up to 75%
- Dual-stream recording saves bandwidth
- Adopt stream over TLS encryption technology which provides more secure stream transmission service
- Support double verification for playback and downloading

HD Video Output
- Provide independent HDMI and VGA outputs
- HDMI video output at up to 8K resolution

Storage and Playback
- Up to 2 SATA interfaces for HDD connection
- 16-ch synchronous playback

Smart & POS Function
- Support multiple VCA (Video Content Analytics) events
- Configurable special camera smart functions, such as VCA detection (motion, line crossing, intrusion, etc.), heat map, ANPR, and people counting
- POS information overlay on live view and playback, and POS triggered recording and alarm

Network & Ethernet Access
- 16 independent PoE network interfaces
- 1 self-adaptive 10/100/1000 Mbps Ethernet interfaces
- Hik-Connect & DDNS (Dynamic Domain Name System) for easy network management
- Smooth streaming technology
- Support web access without plug

+ Tech Specs

Attributes

Performance
Video input channels	16 channels
Alarm input channels	4
Alarm output channels	1
Maximum resolution	7680 x 4320 pixels
Video formats supported	H.264, H.264+, H.265, H.265+, MPEG4
Supported network protocols	TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP, HTTP, HTTPS
Audio formats supported	G.711 A-law, G.711 μ-law, G.722, G.726
Ethernet LAN data rates	10,100,1000 Mbit/s
Audio system	2-way
Supported resolutions	8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60
Number of simultaneously playbacked channels	16 channels
Output bandwidth	256 Mbit/s
Input bandwidth	256 Mbit/s
Wireless LAN features
Wi-Fi	No
Hard drive
Number of HDDs supported	2
Maximum storage capacity	14 TB
HDD interface	SATA, SATA II, SATA III
Number of HDDs installed	0
HDD capacity	0 GB
Storage
Number of HDDs supported	2
Maximum storage capacity	14 TB
HDD interface	SATA, SATA II, SATA III
Number of HDDs installed	0
HDD capacity	0 GB
Ports & interfaces
Ethernet LAN (RJ-45) ports	17
Power over Ethernet (PoE)	Yes
BNC video input	Yes
BNC video output	Yes
VGA (D-Sub) output ports	1
HDMI output	Yes
USB 2.0 ports quantity	1
Supported network protocols	TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP, HTTP, HTTPS
Audio RCA inputs	1
Ethernet LAN data rates	10,100,1000 Mbit/s
Audio RCA outputs	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
Power over Ethernet (PoE) ports quantity	16
HDMI ports quantity	1
Features
On/off switch	Yes
Rack capacity	1U
Product colour	Black
Brand compatibility	Hikvision Digital Technology
Power
Output voltage	12 V
Output current	3.33 A
Power consumption (typical)	15 W
Total Power over Ethernet (PoE) budget	200 W
Operational conditions
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90%
Weight & dimensions
Width	385 mm
Depth	315 mm
Height	52 mm
Weight	3 kg
