SKU: DS-7616NXI-I2/16P/S(E)  |   Brand: Hikvision

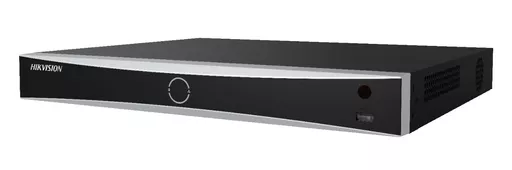

Hikvision DS-7616NXI-I2/16P/S(E) network video recorder 1U Black

SKU: DS-7616NXI-I2/16P/S(E)  |   Brand: Hikvision

Hikvision DS-7616NXI-I2/16P/S(E) network video recorder 1U Black

0 in stock

£376.30 ex. VAT

Figures are exclusive of VAT.



Performance
Video input channels16 channels
Alarm input channels4
Alarm output channels1
Maximum resolution3840 x 2160 pixels
Video codecsH.265+/H.265/H.264+/H.264/MPEG4
Audio codecsG.711ulaw/G.711alaw/G.722/G.726/MP2L2
Analog signal format systemNTSC, PAL
Ethernet LAN data rates10,100,1000 Mbit/s
Audio system2-way
Supported resolutions3840 × 2160, 2560 × 1440, 1920 × 1080, 1600 × 1200, 1280 × 1024, 1280 × 720, 1024 × 768
Networking standardsIEEE 802.3af, IEEE 802.3at
Face detectionYes
Number of simultaneously playbacked channels16 channels
Output bandwidth256 Mbit/s
Input bandwidth160 Mbit/s
Wireless LAN features
Wi-FiNo
Hard drive
Number of HDDs supported2
Maximum storage capacity14 TB
HDD interfaceSATA, SATA II, SATA III
Number of HDDs installed0
HDD capacity0 GB
Storage
Number of HDDs supported2
Maximum storage capacity14 TB
HDD interfaceSATA, SATA II, SATA III
Number of HDDs installed0
HDD capacity0 GB
Ports & interfaces
Ethernet LAN (RJ-45) ports17
Power over Ethernet (PoE)Yes
BNC video outputYes
VGA (D-Sub) output ports1
USB 2.0 ports quantity1
Audio RCA inputs1
DC-in jackYes
Ethernet LAN data rates10,100,1000 Mbit/s
Audio RCA outputs1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity1
Power over Ethernet (PoE) ports quantity16
Networking standardsIEEE 802.3af, IEEE 802.3at
HDMI ports quantity1
Features
Rack mountingYes
CertificationFCC 15 B, ANSI C63.4-2014 CE EN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4
Rack capacity1U
Product colourBlack
Power
AC input voltage100-240 V
AC input frequency50-60 Hz
Power consumption (max)30 W
Total Power over Ethernet (PoE) budget200 W
Operational conditions
Operating temperature (T-T)-10 - 55 °C
Operating relative humidity (H-H)10 - 90%
Weight & dimensions
Width385 mm
Depth317 mm
Height52 mm
Weight2.5 kg
