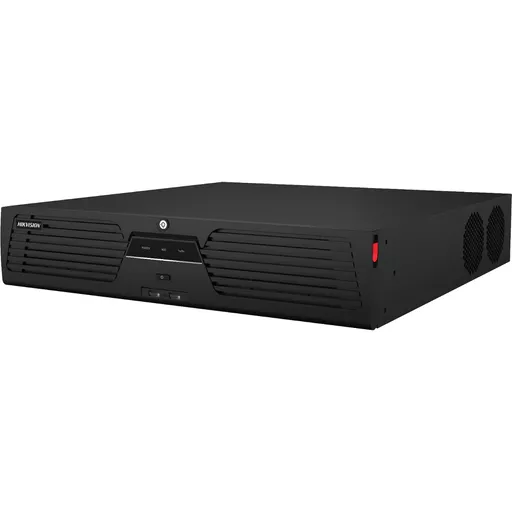

Hikvision DS-9632NI-M8 network video recorder 2U Black

SKU: DS-9632NI-M8 | Brand: Hikvision

Hikvision DS-9632NI-M8 network video recorder 2U Black

0 in stock

£863.91 ex. VAT

Figures are exclusive of VAT.

+ Description

The Ultra Series is designed for extensive projects that require a large number of cameras, as well as a rack-mounted installation for back-end NVRs. The optimized H.265+ compression codec provides maximally efficient bandwidth and storage usage.

+ Tech Specs

Weight	0.01kg

Attributes

Performance
Video input channels	32 channels
Alarm input channels	16
Alarm output channels	9
Maximum resolution	7680 x 4320 pixels
Video codecs	H.265+/H.265/H.264+/H.264
Supported network protocols	TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
Audio codecs	G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2/PCM
Ethernet LAN data rates	10,100,1000 Mbit/s
Supported resolutions	8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Number of simultaneously playbacked channels	16 channels
Output bandwidth	400 Mbit/s
Input bandwidth	320 Mbit/s
Hard drive
Maximum storage capacity	14 TB
HDD interface	SATA, eSATA
RAID support	Yes
RAID levels	0, 1, 5, 6, 10
Storage
Maximum storage capacity	14 TB
HDD interface	SATA, eSATA
RAID support	Yes
RAID levels	0, 1, 5, 6, 10
Ports & interfaces
Ethernet LAN (RJ-45) ports	2
RAID levels	0, 1, 5, 6, 10
VGA (D-Sub) output ports	2
HDMI output	Yes
BNC audio output	Yes
USB 2.0 ports quantity	2
Supported network protocols	TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
RS-485 ports	1
RS-232 interface	Yes
eSATA	Yes
Audio output	2-way
Ethernet LAN data rates	10,100,1000 Mbit/s
Audio RCA outputs	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
eSATA ports quantity	1
Internal SATA ports quantity	8
HDMI ports quantity	2
Features
Rack mounting	Yes
Certification	CE, FCC Part 15 Subpart B, ANSI C63.4-2014 EN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4
Rack capacity	2U
Product colour	Black
Brand compatibility	Hikvision Digital Technology
Power
Power consumption (typical)	50 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Operational conditions
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90%
Weight & dimensions
Width	445 mm
Depth	465 mm
Height	92 mm
Weight	10 kg
