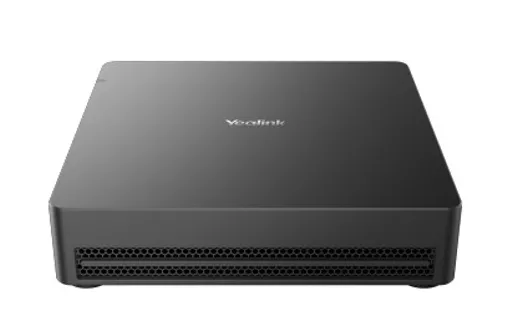

Yealink MCore4-MS Intel Core Ultra 5 125H 16 GB DDR5-SDRAM 256 GB SSD Windows 11 IoT Enterprise Mini PC PC Black

SKU: MCore4-MS | Brand: Yealink

Yealink MCore4-MS Intel Core Ultra 5 125H 16 GB DDR5-SDRAM 256 GB SSD Windows 11 IoT Enterprise Mini PC PC Black

1 in stock

£1,167.66 ex. VAT

Figures are exclusive of VAT.

+ Description

MCore 4 is a Mini-PC specifically designed for Yealink's meeting room systems, catering to meeting spaces of all sizes. Equipped with the Intel Ultra5 processor, it delivers outstanding data processing capabilities and powerful AI computing power, offering every participant an immersive video conferencing experience. In addition to its excellent performance, MCore 4 boasts an ingenious structural design. Featuring a cable-locking mechanism and a wall-mount design , it ensures secure cable connections while allowing for quick and tool-free cable replacement, significantly enhancing operational efficiency and convenience. Furthermore, the back of MCore 4 features a rich array of ports to connect various peripherals as needed, supporting tailored solutions for diverse meeting rooms. MCore 4 supports multiple deployment methods, allowing for flexible installation in any corner of a meeting room. Combined with the multi-connection options of the touch consoles, it perfectly adapts to various meeting room scenarios.

+ Tech Specs

Operating system installed	Windows 11 IoT Enterprise
Total storage capacity	100GB to 300GB
Internal memory	16GB
Display included	N
Optical drive type	N
Product type	PC
Discrete graphics card	N
On-board graphics card	Y
Processor family	Intel Core Ultra 5

Attributes

Processor
Processor generation	Intel® Core™ Ultra (Series 1)
Processor cache type	Smart Cache
Processor cache	18 MB
Processor model	125H
Number of processors installed	1
Processor manufacturer	Intel
Processor boost frequency	4.5 GHz
Processor threads	18
Processor cores	14
Processor family	Intel Core Ultra 5
Performance cores	4
Efficient cores	8
Performance-core base frequency	1.2 GHz
Efficient-core base frequency	0.7 GHz
Processor base power	28 W
Maximum turbo power	115 W
Efficient-core Max Turbo Frequency	3.6 GHz
Performance-core Max Turbo Frequency	4.5 GHz
Low Power Efficient-cores	2
Low Power Efficient-core Max Turbo Frequency	2.5 GHz
Low Power Efficient-core Base Frequency	700 MHz
Neural processor unit (NPU)
Neural processor unit (NPU)	Intel AI Boost
Sparsity support	Yes
Windows Studio effects support	Yes
AI software frameworks supported by NPU	DirectML, ONNX RT, OpenVINO, Windows ML
Memory
Internal memory	16 GB
Internal memory type	DDR5-SDRAM
Storage
Storage media	SSD
Optical drive type	No
Total storage capacity	256 GB
Total SSDs capacity	256 GB
Graphics
Discrete graphics card	No
On-board graphics card family	Intel Arc Graphics
On-board graphics card	Yes
Discrete graphics card model	Not available
On-board graphics card model	Intel Arc Graphics
On-board GPU manufacturer	Intel
Optical drive
Optical drive type	No
Network
Ethernet LAN	Yes
Wi-Fi	Yes
Bluetooth	Yes
Bluetooth version	5.2
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Ethernet LAN data rates	10,100,1000 Mbit/s
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Thunderbolt 3 ports quantity	0
HDMI version	2.0/2.1
USB 2.0 ports quantity	0
Headphone outputs	1
HDMI ports quantity	4
Ethernet LAN (RJ-45) ports	1
Technical details
Product type	PC
Trusted Platform Module (TPM)	Yes
Product colour	Black
Chassis type	Mini PC
Design
Product colour	Black
Chassis type	Mini PC
Performance
Product type	PC
Trusted Platform Module (TPM)	Yes
Trusted Platform Module (TPM) version	2.0
Software
Operating system architecture	64-bit
Operating system installed	Windows 11 IoT Enterprise
Processor special features
Low Power Efficient-cores	2
Low Power Efficient-core Max Turbo Frequency	2.5 GHz
Low Power Efficient-core Base Frequency	700 MHz
Weight & dimensions
Width	188 mm
Depth	188 mm
Height	47.5 mm
Packaging content
Display included	No
Display
Display included	No
Other features
Trusted Platform Module (TPM)	Yes
On-board graphics card	Yes
Processor manufacturer	Intel
