| Motherboard |
|---|
| Motherboard form factor | micro ATX |
| Processor socket | LGA 1700 |
| Number of processors supported | 1 |
| Motherboard chipset | Intel H610 |
| Supported processor frequency (max) | 4.7 GHz |
| Compatible processor series | Intel Core i5 14th Gen |
| Processor |
|---|
| Thermal Design Power (TDP) | 65 W |
| L3 cache | 20 MB |
| Built-in processor | Yes |
| Processor boost frequency | 4.7 GHz |
| Processor threads | 16 |
| Processor frequency | 2.5 GHz |
| Processor socket | LGA 1700 |
| Processor lithography | 10 nm |
| Processor cores | 10 |
| Processor family | Intel® Core™ i5 |
| Number of processors supported | 1 |
| Motherboard chipset | Intel H610 |
| Supported processor frequency (max) | 4.7 GHz |
| L2 cache | 9.5 MB |
| Compatible processor series | Intel Core i5 14th Gen |
| Processor manufacturer | Intel |
| ECC supported by processor | Yes |
| Processor cache | 20 MB |
| Performance cores | 6 |
| Efficient cores | 4 |
| Performance-core Max Turbo Frequency | 4.7 GHz |
| Efficient-core Max Turbo Frequency | 3.5 GHz |
| Performance-core base frequency | 2.5 GHz |
| Efficient-core base frequency | 1.8 GHz |
| Low Power Efficient-cores | 0 |
| Memory |
|---|
| Number of memory slots | 0 |
| Memory channels | Dual-channel |
| ECC | No |
| Supported memory clock speeds | 5600 MHz |
| Maximum internal memory | 64 GB |
| Non-ECC | Yes |
| Video |
|---|
| On-board graphics card | Yes |
| Graphics card family | Intel |
| Storage |
|---|
| Card reader integrated | No |
| Graphics |
|---|
| Maximum resolution | 4096 x 2160 pixels |
| Number of displays supported | 3 |
| On-board graphics card | Yes |
| Graphics card family | Intel |
| On-board graphics card model | Intel UHD Graphics 770 |
| Display |
|---|
| Touchscreen | No |
| Audio |
|---|
| Intel® High Definition Audio (Intel® HD Audio) | Yes |
| Audio output channels | 7.1 channels |
| Built-in speaker(s) | No |
| Audio chip | Realtek ALC897 |
| Network |
|---|
| Near Field Communication (NFC) | No |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| Bluetooth version | 5.3 |
| Bluetooth | Yes |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| LAN controller | Realtek RTL8111H |
| Bluetooth Low Energy (BLE) | Yes |
| Copper ethernet cabling technology | 10BASE-TX, 100BASE-TX, 1000BASE-TX |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| WLAN controller model | Intel Wi-Fi 6E AX211 |
| Ports & interfaces |
|---|
| Thunderbolt ports quantity | 0 |
| Serial port via internal header | No |
| DisplayPort version | 1.4 |
| Consumer infrared headers | No |
| Combo headphone/mic port | No |
| DC-in jack | No |
| COM ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB charging | Yes |
| Internal USB 2.0 ports quantity | 4 |
| TV-out | No |
| Mini HDMI ports quantity | 0 |
| HDMI version | 2.1 |
| Mini DisplayPorts quantity | 0 |
| DisplayPorts quantity | 1 |
| VGA (D-Sub) ports quantity | 0 |
| USB 2.0 ports quantity | 4 |
| Serial ports quantity | 0 |
| S/PDIF out port | No |
| PS/2 ports quantity | 0 |
| Parallel ports quantity | 0 |
| Microphone in | Yes |
| Firewire (IEEE 1394) ports | 0 |
| Headphone outputs | 1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| DVI port | No |
| CardBus PCMCIA slots quantity | 0 |
| Internal USB 3.2 Gen 1 (3.1 Gen 1) ports quantity | 2 |
| DVI-D ports quantity | 0 |
| Thunderbolt 3 ports quantity | 0 |
| Thunderbolt 4 ports quantity | 0 |
| USB4 Gen 2x2 ports quantity | 0 |
| USB4 Gen 3x2 ports quantity | 0 |
| Expansion slots |
|---|
| PCI Express x4 (Gen 2.x) slots | 0 |
| PCI Express slots version | 4.0 |
| PCI-X slots | 0 |
| PCI slots | 0 |
| PCI Express x8 slots | 0 |
| PCI Express x4 slots | 0 |
| PCI Express x16 slots | 1 |
| PCI Express x1 slots | 1 |
| Mini PCI Express slots | 0 |
| Number of M.2 (M) slots | 2 |
| Mini PCI Express slot (half-length) | 0 |
| Mini PCI Express slot (full length) | 0 |
| PCI Express x16 (Gen 5.x) slots | 0 |
| Design |
|---|
| Motherboard form factor | micro ATX |
| Product type | Mini PC barebone |
| Housing material | Metal, Plastic |
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| On/off switch | Yes |
| Touchscreen | No |
| LED indicators | Yes |
| Cooling type | Active |
| Product colour | Black |
| Chassis type | Mini-Tower |
| Performance |
|---|
| Motherboard form factor | micro ATX |
| Maximum resolution | 4096 x 2160 pixels |
| Intel Visual BIOS | No |
| Intel Express BIOS update | No |
| Windows operating systems supported | No |
| BIOS type | UEFI |
| Number of displays supported | 3 |
| Trusted Platform Module (TPM) version | 2.0 |
| Trusted Platform Module (TPM) | Yes |
| Processor socket | LGA 1700 |
| Number of processors supported | 1 |
| Motherboard chipset | Intel H610 |
| Supported processor frequency (max) | 4.7 GHz |
| Compatible processor series | Intel Core i5 14th Gen |
| BIOS memory size | 256 Mbit |
| Audio output channels | 7.1 channels |
| ACPI version | 6.3 |
| Audio chip | Realtek ALC897 |
| Consumer infrared Rx sensor | No |
| Processor special features |
|---|
| Intel Visual BIOS | No |
| Intel TSX-NI | No |
| Intel® Smart Response Technology | No |
| Intel Smart Connect Technology | No |
| Intel® Smart Cache | Yes |
| Intel® Small Business Advantage (Intel® SBA) | No |
| Intel® Secure Key | Yes |
| Intel® Matrix Storage Technology (Intel® MST) | No |
| Intel Express BIOS update | No |
| Intel® OS Guard | Yes |
| Intel Stable Image Platform Program (SIPP) | No |
| Thermal Monitoring Technologies | Yes |
| Intel® Wireless Display (Intel® WiDi) | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® Turbo Boost Technology | Yes |
| Intel Trusted Execution Technology | No |
| Intel® Quick Sync Video Technology | Yes |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel Flex Memory Access | Yes |
| Intel FDI Technology | No |
| Intel Fast Memory Access | No |
| Intel Demand Based Switching | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel 64 | Yes |
| Idle States | Yes |
| Execute Disable Bit | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel® Rapid Start Technology | No |
| Intel Advanced Management Technology | No |
| Conflict-Free | Yes |
| Intel Clear Video Technology | Yes |
| Intel® Unite™ | No |
| Intel Unite installed | No |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Optane™ Memory Ready | Yes |
| Intel® Virtualization Technology (Intel® VT) | Yes |
| Intel Rapid Storage Technology | Yes |
| Intel® High Definition Audio (Intel® HD Audio) | Yes |
| Intel Dual Display Capable Technology | Yes |
| Embedded options available | No |
| Intel On-Demand Power Redundancy Technology | No |
| Intel® Platform Trust Technology (Intel® PTT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel® vPro™ Platform Eligibility | No |
| Low Power Efficient-cores | 0 |
| Colour |
|---|
| Product colour | Black |
| Technical details |
|---|
| BIOS type | UEFI |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| Intel® Virtualization Technology (Intel® VT) | Yes |
| Intel Rapid Storage Technology | Yes |
| Intel® High Definition Audio (Intel® HD Audio) | Yes |
| Intel Dual Display Capable Technology | Yes |
| Embedded options available | No |
| Trusted Platform Module (TPM) version | 2.0 |
| Trusted Platform Module (TPM) | Yes |
| Quick start guide | Yes |
| Processor cores | 10 |
| Intel On-Demand Power Redundancy Technology | No |
| Cooling type | Active |
| Chassis type | Mini-Tower |
| BIOS memory size | 256 Mbit |
| Introduction year | 2025 |
| Introduction month | June |
| Warranty period | 3 year(s) |
| Compliance certificates | BSMI, CB, CE, Federal Communications Commission (FCC) |
| Packaging data |
|---|
| Power cord included | Yes |
| Drivers included | Yes |
| AC adapter included | Yes |
| Package width | 271 mm |
| Package depth | 382 mm |
| Package height | 122 mm |
| Package weight | 2.8 kg |
| Certificates |
|---|
| Waste Electrical and Electronic Equipment (WEEE) compliance | Yes |
| Indication |
|---|
| LED indicators | Yes |
| Software |
|---|
| Windows operating systems supported | No |
| Management features |
|---|
| On/off switch | Yes |
| Features |
|---|
| Number of displays supported | 3 |
| Logistics data |
|---|
| Country of origin | China |
| Certification |
|---|
| Waste Electrical and Electronic Equipment (WEEE) compliance | Yes |
| Power |
|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power supply type | External AC adapter |
| Power supply | 120 W |
| Number of power supply units | 1 |
| Operational conditions |
|---|
| Storage temperature (T-T) | -20 - 60 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |

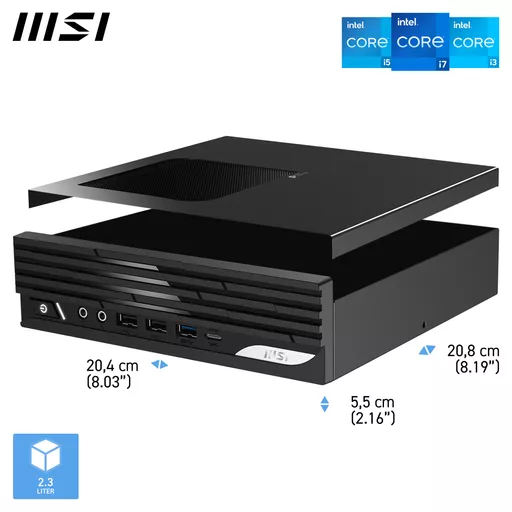

| Weight & dimensions |
|---|
| Width | 204 mm |
| Depth | 280 mm |
| Height | 54.8 mm |
| Package width | 271 mm |
| Package depth | 382 mm |
| Package height | 122 mm |
| Package weight | 2.8 kg |
| Weight | 1.27 kg |
| Packaging content |
|---|
| Display included | No |
| Power cord included | Yes |
| Drivers included | Yes |
| AC adapter included | Yes |
| Mouse included | No |
| Touchscreen | No |
| Quick start guide | Yes |
| Keyboard included | No |
| Other features |
|---|
| Embedded options available | No |
| Chassis type | Mini-Tower |
| Country of origin | China |
| Introduction year | 2025 |
| Introduction month | June |
| Warranty period | 3 year(s) |
