SKU: 181334  |   Brand: Manhattan

Manhattan Kiosk Individual compartment Laptop Cabinet USB-C 15.6" 16-bay via USB-C 30W, Suitable for Tablets/phones, iPads, MacBooks, Chromebooks, other USB-C devices, Bays 328x220x100mm, USB-C charging cables included,Cabinet, UK & EU

SKU: 181334  |   Brand: Manhattan

Manhattan Kiosk Individual compartment Laptop Cabinet USB-C 15.6" 16-bay via USB-C 30W, Suitable for Tablets/phones, iPads, MacBooks, Chromebooks, other USB-C devices, Bays 328x220x100mm, USB-C charging cables included,Cabinet, UK & EU

0 in stock

£2,147.16 ex. VAT

Figures are exclusive of VAT.



"16-Compartment USB-C Self-Service Charging Kiosk for Phones, Tablets, iPads and with PIN-Locked Compartments and Fast Charging up to 30W

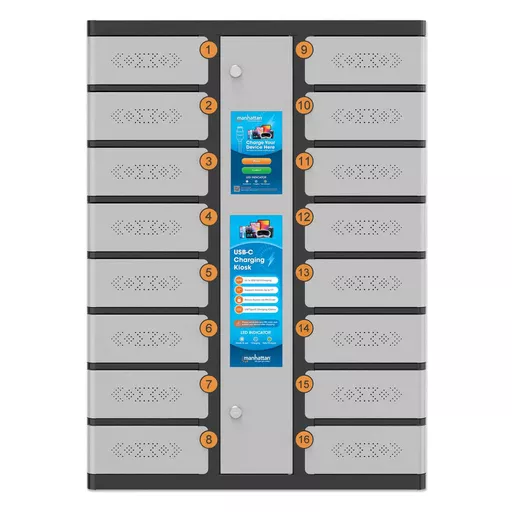

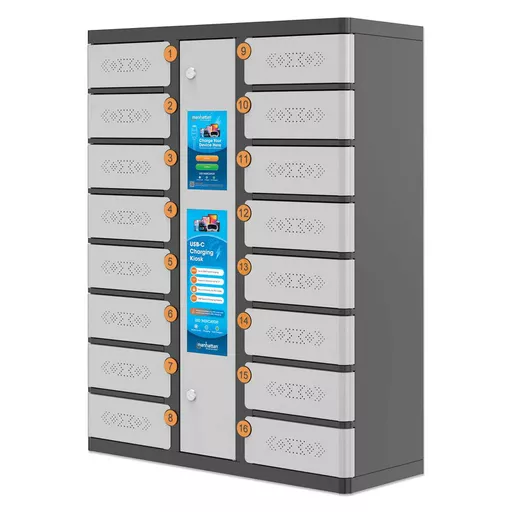

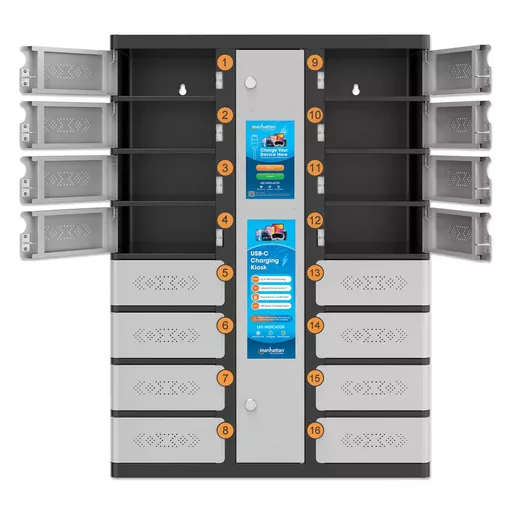

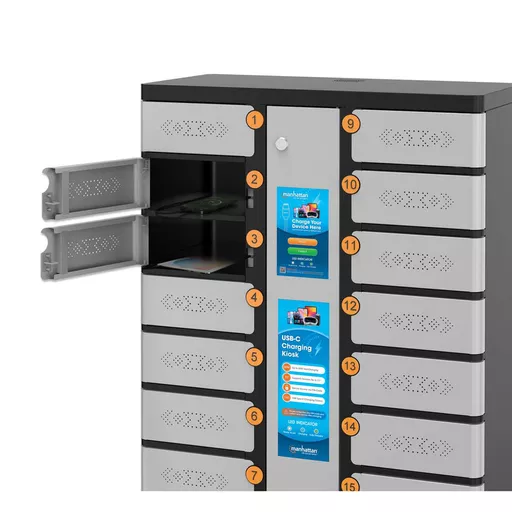

This USB-C Charging Kiosk from Manhattan offers a smart and efficient way to charge and store multiple devices in one central location. Designed for shared workspaces, lobbies, universities, schools, libraries, restaurants, and other public areas, it provides sixteen PIN-secured compartments for tablets, phones, and other devices up to 11"". Each user simply places their device inside, closes the door, and sets a personal 1-6 digit PIN for secure, self-service charging.

Powerful Charging Performance
With a total power of 500 W, the kiosk delivers up to 30W per compartment. Each compartment features both a USB-C Power Delivery cable, supporting fast charging for iPads®, Samsung® Galaxy Tabs, iPhones®, and other USB-C enabled devices - no separate AC adapters required.

Safe, Smart, and User-Friendly Design
A bright touchscreen interface on the front guides users through placing and retrieving their devices. LED indicators show charging progress at a glance - blue when charging and green when fully charged. Built-in protection against overload, overcurrent, short circuit, and voltage spikes ensures reliable performance and device safety around the clock.

Versatile Installation Options

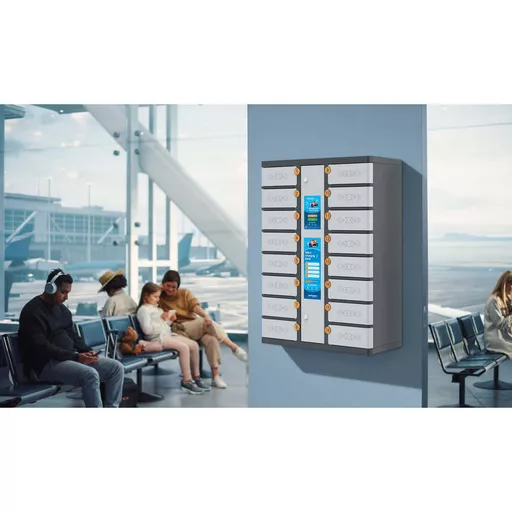

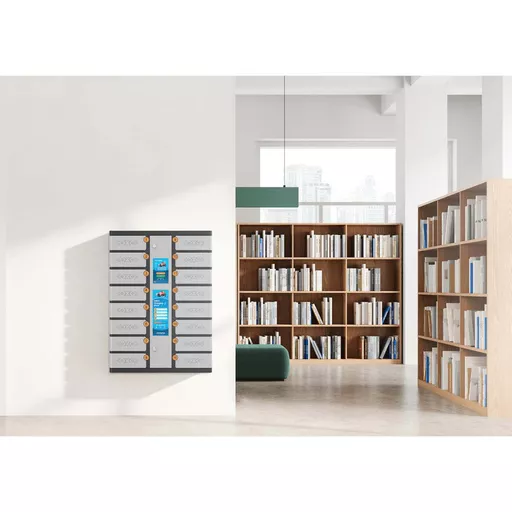

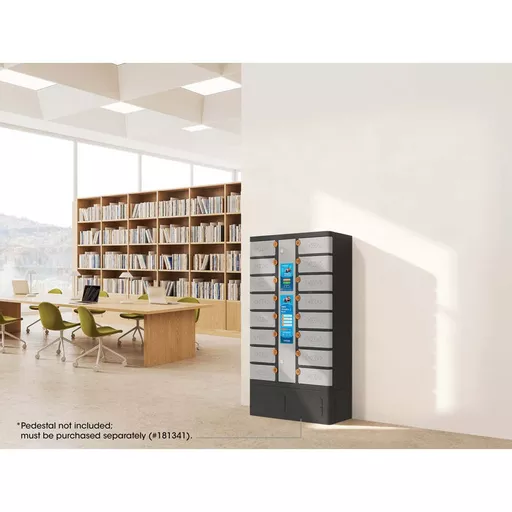

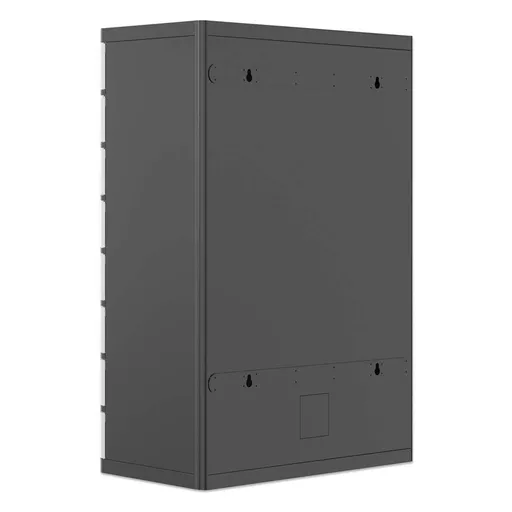

The charging kiosk can be mounted on a wall to save floor space and prevent theft, with all necessary mounting hardware included. It also includes four threaded mounting points on the base for attaching an optional pedestal (available separately, model #181341). Non-slip rubber feet allow secure placement on tables and other surfaces.

Built to Last
Constructed from durable steel with smooth, rounded edges for user safety, the kiosk combines robust build quality with a sleek gray finish that fits seamlessly into any professional environment. Two power cables (C13 to EU and to UK, each 2 m) are included for flexible installation across regions."

Number of devices supported 15 to 20
Type Portable device management cabinet
Weight 51,000.00kg

Technical details
Lock typeCode, Key
Power protection featuresOverload, Over current, Short circuit, Over voltage
LED indicatorsYes
TypePortable device management cabinet
PlacementFloor, Wall
Supported portable devicesSmartphone, Tablet
Device connectors supportedUSB Type-C
Number of devices supported16
Maximum screen size27.9 cm (11")
Slot width22 cm
Slot height10 cm
Number of fans1 fan(s)
Product colourBlack, Grey
Housing materialMetal, Steel, Plastic
VentilationYes
LockingYes
Compliance certificatesCE, RoHS, REACH, UKCA
Design
TypePortable device management cabinet
PlacementFloor, Wall
Slot width22 cm
Slot depth32.8 cm
Slot height10 cm
Product colourBlack, Grey
Housing materialMetal, Steel, Plastic
Cable managementYes
Features
Lock typeCode, Key
Power protection featuresOverload, Over current, Short circuit, Over voltage
LED indicatorsYes
Supported portable devicesSmartphone, Tablet
Device connectors supportedUSB Type-C
Number of devices supported16
Maximum screen size27.9 cm (11")
Number of fans1 fan(s)
VentilationYes
LockingYes
Power
AC input voltage220 - 240 V
AC input frequency50 - 60 Hz
Over voltage protectionYes
Total power500 W
Power per device30 W
Operational conditions
Operating temperature (T-T)0 - 45 °C
Operating relative humidity (H-H)20 - 80%
Storage temperature (T-T)-15 - 45 °C
Weight & dimensions
Slot depth32.8 cm
Width670 mm
Depth331 mm
Height937 mm
Weight43.3 kg
Package width730 mm
Package depth991 mm
Package height506 mm
Package weight51 kg
Certificates
Compliance certificatesCE, RoHS, REACH, UKCA
Packaging content
ManualYes
Screws includedYes
Number of keys included4 pc(s)
Cables includedUSB Type-C
Keys includedYes
Packaging data
Package width730 mm
Package depth991 mm
Package height506 mm
Package weight51 kg
