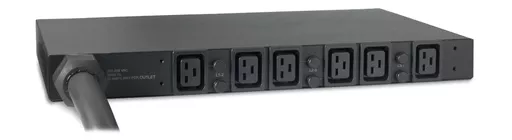

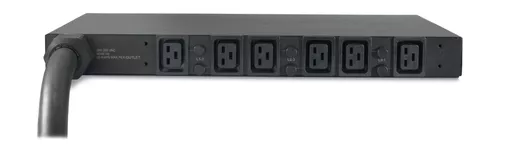

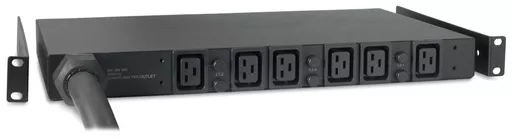

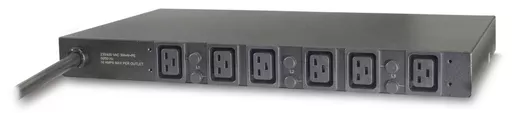

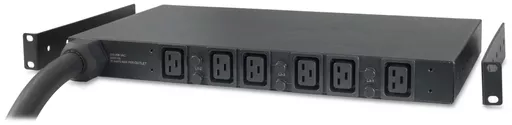

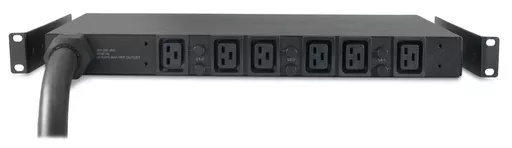

APC Basic Rack PDU AP7526 power distribution unit (PDU) 6 AC outlet(s) 1U Black

SKU: AP7526 | Brand: APC

0 in stock

£635.40 ex. VAT

Figures are exclusive of VAT.

Features:
-High Power Density.
-Horizontal mounting capability.
-Low Cost Power Distribution.

AC outlets quantity	6
Weight	6,980.00kg

Design
PDU types	Basic
Mounting	Horizontal
Product colour	Black
Certification	CE,GOST,VDE
Rack capacity	1U
Ports & interfaces
AC outlets quantity	6 AC outlet(s)
AC outlet types	C19 coupler
Output connections	IEC 320 C19
Input connection type	IEC 309 32A 3P+N+PE
Features
Cable length	2.44 m
Certification	CE,GOST,VDE
Ergonomics
Cable length	2.44 m
Power
Maximum power	22000 W
Nominal input voltage	400 V
Nominal output voltage	230 V
Maximum total current draw per phase	32 A
Maximum input current per phase	32 A
Load capacity	22080 VA
Certificates
Certification	CE,GOST,VDE
Operational conditions
Operating temperature (T-T)	-5 - 45 °C
Storage temperature (T-T)	-25 - 65 °C
Storage relative humidity (H-H)	5 - 95%
Operating relative humidity (H-H)	5 - 95%
Weight & dimensions
Weight	4.84 kg
Width	437 mm
Depth	254 mm
Height	44 mm
Package width	559 mm
Package depth	502 mm
Package height	241 mm
Package weight	6.98 kg
Packaging data
Package width	559 mm
Package depth	502 mm
Package height	241 mm
Package weight	6.98 kg
