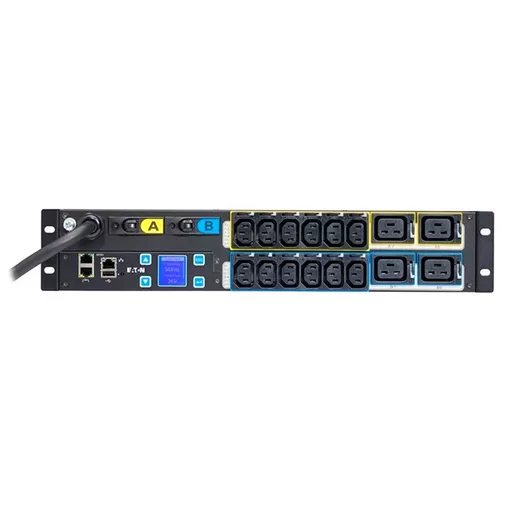

Eaton EMIH06 power distribution unit (PDU) 16 AC outlet(s) 2U Black

SKU: EMIH06  |   Brand: Eaton

Eaton EMIH06 power distribution unit (PDU) 16 AC outlet(s) 2U Black

0 in stock

£500.19 ex. VAT

Figures are exclusive of VAT.



Button mounting on rear and sides, variable mounting bracket. 1U/2U form factor ePDUs can be mounted horizontaly, vertically, or under a surface.

AC outlets quantity 8
Weight 0.01kg

Design
TypeSingle-phase
PDU typesMetered
MountingHorizontal/Vertical
Product colourBlack
CertificationCB, CE, EN 60950-1:2006/A11:2009/A1:2010/A12:2011 Safety - Part 1: General Requirements, IEC 60950-1(ed.2), IEC 60950-1(ed.2);am1 EN 55022:2010, EN 61000-6-2:2005 Part 6-2, EN 50581 : 2012, REACH, WEEE, PEP, ISO 9001:2008, ISO 14001:2004
Form factorRackmount
Rack mountingYes
Cable colourBlack
Rack capacity2U
Ports & interfaces
AC outlets quantity16 AC outlet(s)
AC outlet typesC13 coupler, C19 coupler
Power plugIEC 60309
Output connections12 x C13 & 4 x C19
Input connection typeIEC-320-C20
Ethernet LAN (RJ-45) ports1
Features
Cable length3 m
CertificationCB, CE, EN 60950-1:2006/A11:2009/A1:2010/A12:2011 Safety - Part 1: General Requirements, IEC 60950-1(ed.2), IEC 60950-1(ed.2);am1 EN 55022:2010, EN 61000-6-2:2005 Part 6-2, EN 50581 : 2012, REACH, WEEE, PEP, ISO 9001:2008, ISO 14001:2004
Management features
Supported network protocolsHTTP, HTTPS, SSL, Telnet, FTP, SNMP, SMTP, DNS, DHCP, LDAP, RADIUS
Management protocolsSNMP, Telnet
Firmware upgradeable viaNetwork, USB
Firmware upgradeableYes
MonitoringCurrent
Ergonomics
Cable length3 m
Power
Maximum power7400 W
Nominal input voltage230 V
Nominal output voltage230 V
Maximum current32 A
Maximum input current per phase32 A
AC input frequency50 Hz
Weight & dimensions
Dimensions (WxDxH)88.9 x 482.6 x 127 mm
Width88.9 mm
Depth482.6 mm
Height127 mm
Package weight4.7 kg
Packaging data
Package weight4.7 kg
Packaging content
Cables includedLAN (RJ-45)
Rack mount kitYes
Operational conditions
Operating temperature (T-T)0 - 60 °C
Technical details
Compliance certificatesRoHS
