SKU: VA6G32A0  |   Brand: Vertiv

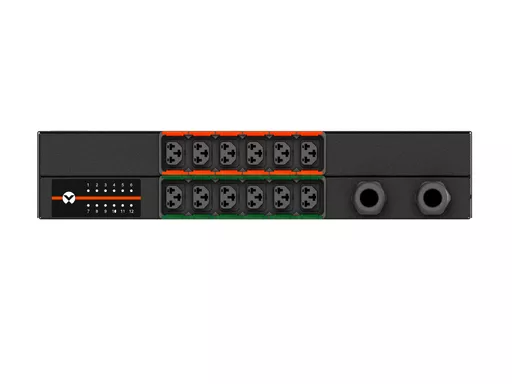

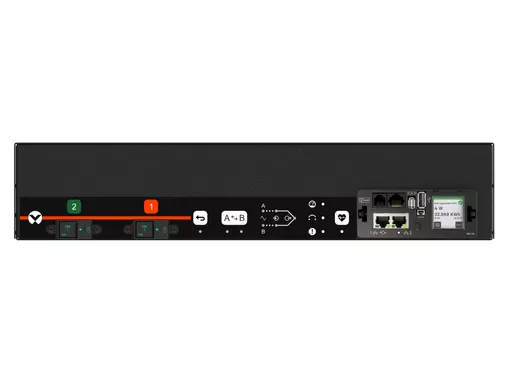

Vertiv Geist AGR5M2R6-12CF13-3PS6PS6B211-D power distribution unit (PDU) 12 AC outlet(s) 0U Black

SKU: VA6G32A0  |   Brand: Vertiv

Vertiv Geist AGR5M2R6-12CF13-3PS6PS6B211-D power distribution unit (PDU) 12 AC outlet(s) 0U Black

0 in stock

£1,658.90 ex. VAT

Figures are exclusive of VAT.



Rack Transfer Switch (RTS) delivers redundant power to single corded devices. The RTS automatically detects the loss of power and switches the power load (no phase-syncronization required) to the alternative power source in less than 4-8 milliseconds without the need for human intervention.

AC outlets quantity 12
Family Geist
Weight 5.00kg

Design
TypeSingle-phase
PDU typesMonitored
MountingHorizontal
DisplayLED
Product colourBlack
Rack capacity0U
Ports & interfaces
USB ports quantity1
AC outlets quantity12 AC outlet(s)
AC outlet typesC13 coupler, C19 coupler
Power plugIEC 60309
Serial ports quantity1
Ethernet LAN (RJ-45) ports1
Features
Cable length3 m
Reset buttonYes
Management features
Supported network protocolsDHCP, HTTP, HTTPS, IPv4, IPv6, LDAP, NTP, RADIUS, RSTP, SSH, SMTP, SNMP (v1/v2c/v3), Syslog, TACACS+, Modbus TCP
MonitoringCurrent, Power, Voltage
Ergonomics
Cable length3 m
DisplayLED
Power
Nominal input voltage200-240 V
Power protection featuresOver current
Maximum current32 A
Load capacity230 VA
AC input frequency50/60 Hz
Operational conditions
Operating temperature (T-T)0 - 60 °C
Weight & dimensions
Width432 mm
Depth457 mm
Height87 mm
Package weight5.44 kg
Packaging data
Package weight5.44 kg
