SKU: CP-9020258-UK  |   Brand: Corsair

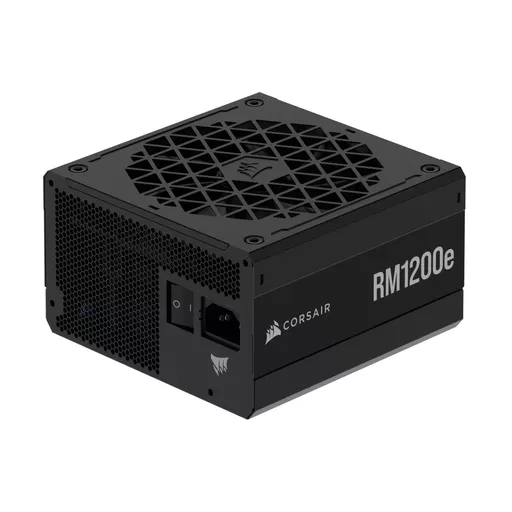

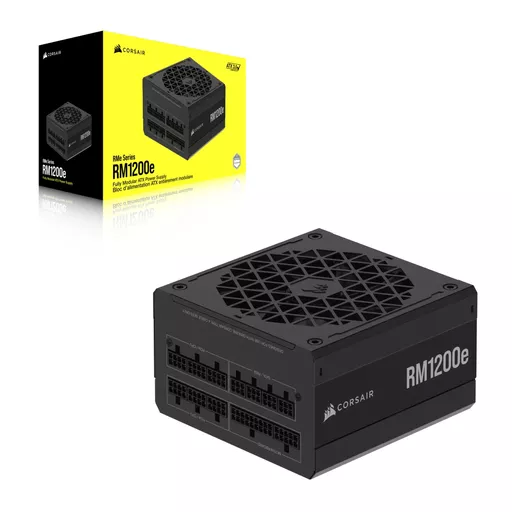

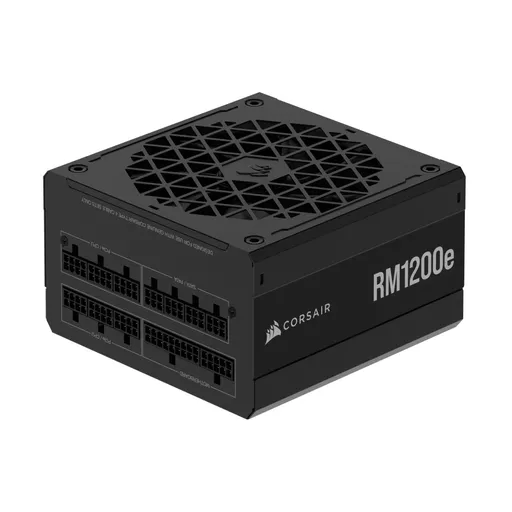

Corsair RMe Series RM1200e power supply unit 1200 W 24-pin ATX ATX Black

SKU: CP-9020258-UK  |   Brand: Corsair

Corsair RMe Series RM1200e power supply unit 1200 W 24-pin ATX ATX Black

0 in stock

£160.36 ex. VAT

Figures are exclusive of VAT.

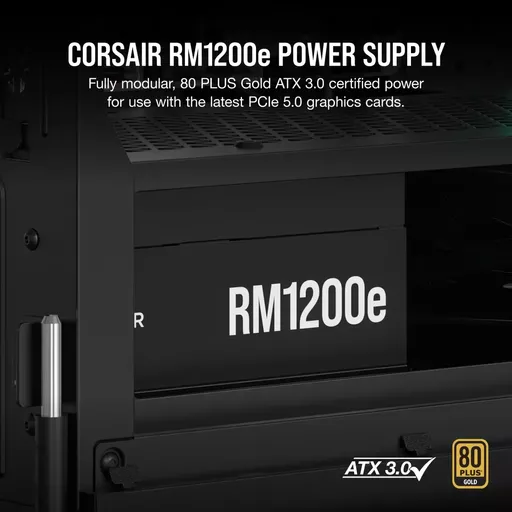

CORSAIR RMe Series Fully Modular Low-Noise Power Supplies with ATX 3.1 and PCIe 5.1 compliance provide quiet, reliable power with 80 PLUS Gold efficiency to a wide variety of PC builds.

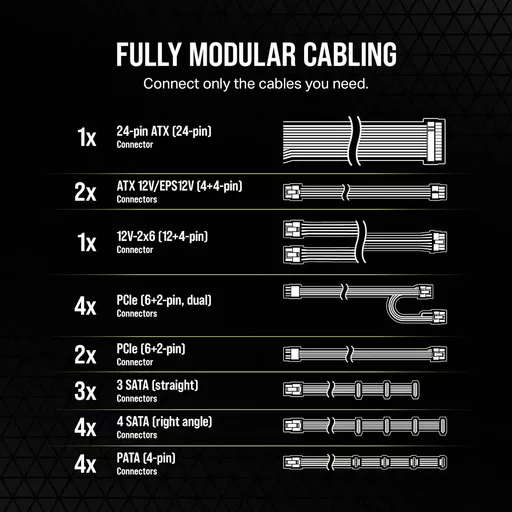

FULLY MODULAR CABLING
Keep cable clutter down by connecting only the cables your system needs and nothing else. Five universal 8-pin connectors can be used with any 8-pin cable, satisfying all the power needs of modern motherboards and GPUs.

ATX 3.1 CERTIFIED
The ATX 3.1 standard demands a high level of reliability and power efficiency. While many CORSAIR PSUs meet these requirements, RMe Series PSUs are formally certified for ATX 3.1 compliance.

PCIe 5.1 12v-2x6 GPU cable included for use with modern graphics cards such as the NVIDIA® GeForce RTX™ 50 Series.

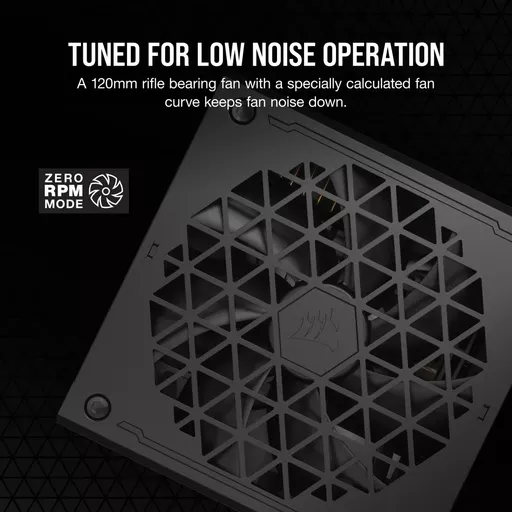

LOW NOISE OPERATION IN A COMPACT SIZE
Shorter than the traditional power supply, the RMe offers more cable space behind your PSU.

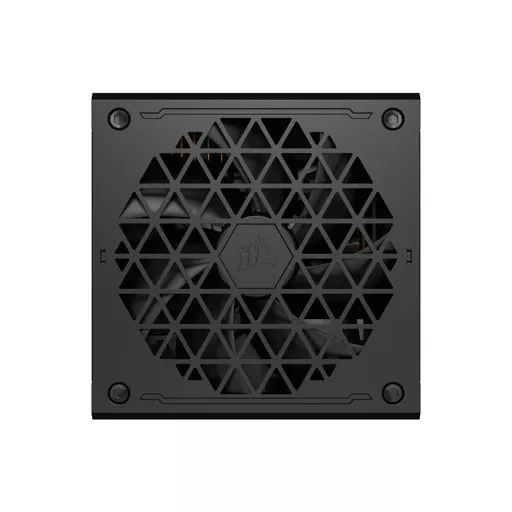

Includes Zero RPM Fan Mode for near-silent operation at lower loads.

TECHNOLOGY AND RELIABILITY
For consistent, reliable power and superb electrical performance, each RMe Series power supply features a robust resonant LLC topology with DC-DC conversion and 105° rated industrial-grade capacitors.

With precise timings, RMe supports Modern Standby, ensuring extremely fast wake-from-sleep times and better low-load efficiency.

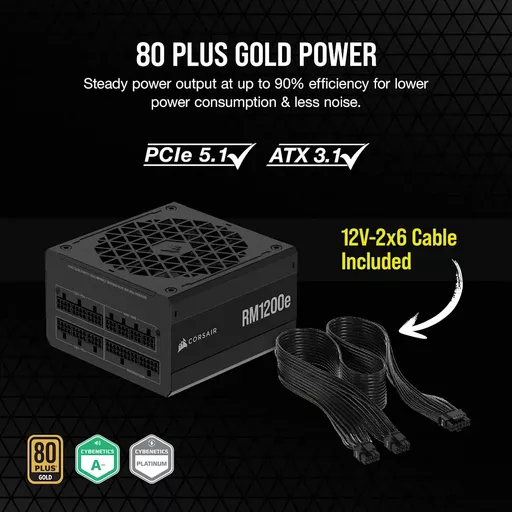

80 PLUS Gold certified
Steady power output at up to 90% efficiency, and Cybenetics-certified for lower power consumption, less noise, and cooler temperatures.

105°C-RATED CAPACITORS
Built with 100% Industrial-grade, 105°C-rated Japanese electrolytic capacitors for unwavering power and reliability.

Purpose PC
Power supply unit (PSU) form factor ATX
Family RMe Series
Weight 3.38kg

Cooling
Number of fans1 fan(s)
Cooling typeActive
Performance
On/off switchYes
Power supply unit (PSU) form factorATX
80 PLUS certification80 PLUS Gold
PurposePC
ATX version3.0
Mean time between failures (MTBF)100000 h
Design
80 PLUS certification80 PLUS Gold
Product colourBlack
On/off switchYes
Number of fans1 fan(s)
Cooling typeActive
Power
Total power1200 W
AC input voltage100 - 240 V
AC input frequency47 - 63 Hz
Input current15 A
Combined power (+3.3V)150 W
Combined power (+12V)1200 W
Combined power (+5V)150 W
Combined power (+5Vsb)15 W
Max output current (+3.3V)20 A
Max output current (+12V)100 A
Max output current (+5V)20 A
Max output current (+5Vsb)3 A
Ports & interfaces
Motherboard power cable length61 cm
SATA power cable length115,455,800 mm
Peripheral (Molex) power cable length100,450 mm
PCI Express power cable length60 cm
Motherboard power connector24-pin ATX
Number of SATA power connectors3
Peripheral (Molex) power connectors (4-pin)4
PCI Express power connectors (6+2 pin)2
Cabling typeFully-Modular
Number of EPS connectors2
Weight & dimensions
Weight3.38 kg
Certificates
80 PLUS certification80 PLUS Gold
