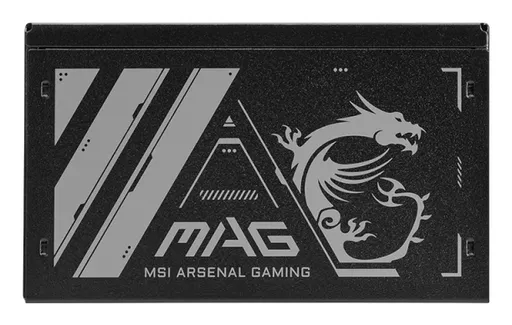

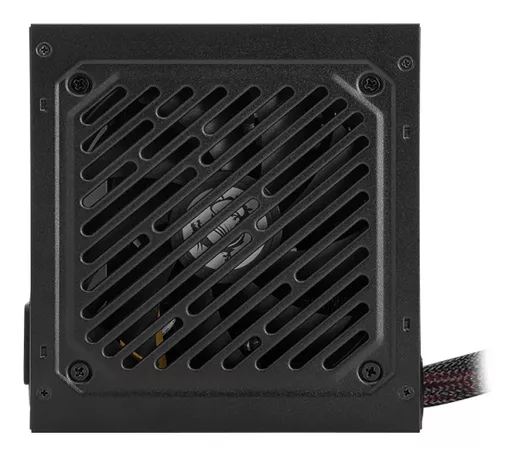

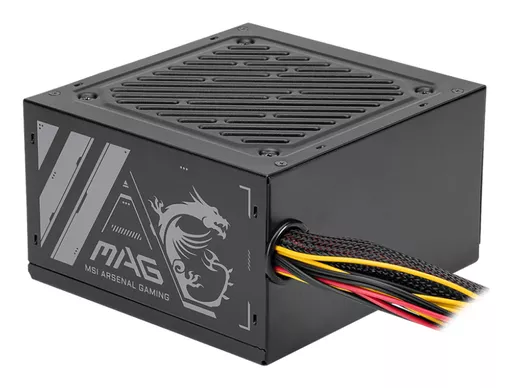

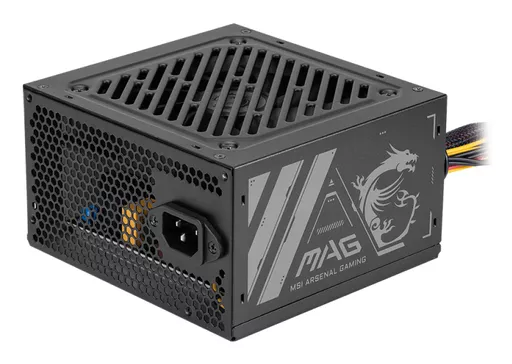

MSI MAG A500N-H power supply unit 500 W 24-pin ATX ATX Black

SKU: MAG A500N-H-UK | Brand: MSI

20 in stock

£22.14 ex. VAT

Figures are exclusive of VAT.

Purpose	PC
Power supply unit (PSU) form factor	ATX

Cooling
Fan diameter	12 cm
Fan speed	500 - 1800 RPM
Cooling type	Active
Power
Total power	500 W
AC input voltage	200 - 240 V
AC input frequency	50/60 Hz
Power Factor Correction (PFC) type	Active
Combined power (+3.3V)	105 W
Combined power (+12V)	500 W
Combined power (+5V)	456 W
Combined power (-12V)	3.6 W
Combined power (+5Vsb)	12.5 W
Max output current (+3.3V)	14 A
Max output current (+12V)	38 A
Max output current (+5V)	14 A
Max output current (-12V)	0.3 A
Max output current (+5Vsb)	2.5 A
Ports & interfaces
Motherboard power connector	24-pin ATX
Number of SATA power connectors	3
Peripheral (Molex) power connectors (4-pin)	2
EPS power connector (8-pin)	No
PCI Express power connectors (6-pin)	0
PCI Express power connectors (6+2 pin)	1
PCI Express power connectors (8-pin)	0
ATX Power connector (24-pin)	Yes
EPS power connector (4+4 pin)	Yes
PCI Express power connectors (16-pin)	0
PCI Express power connectors (12+4 pin)	0
Performance
Power supply unit (PSU) form factor	ATX
Purpose	PC
Design
Product colour	Black
Fan diameter	12 cm
Illumination	No
Fan speed	500 - 1800 RPM
Cooling type	Active
Weight & dimensions
Width	140 mm
Depth	150 mm
Height	86 mm
