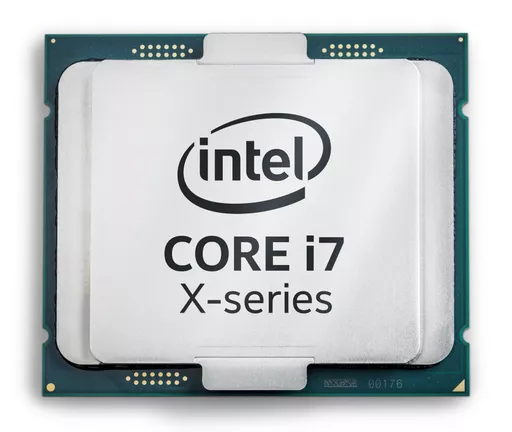

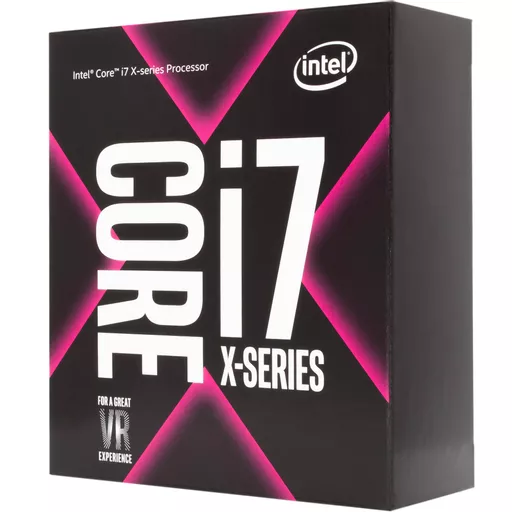

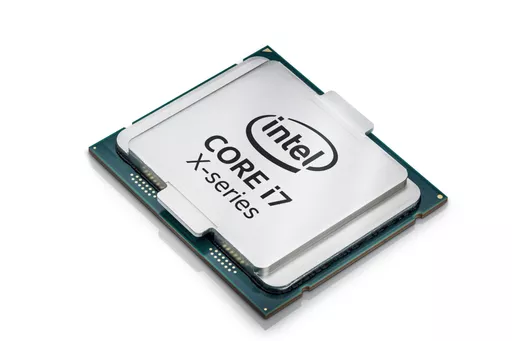

Intel Core i7-7740X processor 4.3 GHz 8 MB Smart Cache Box

SKU: BX80677I77740X | Brand: Intel

Intel Core i7-7740X processor 4.3 GHz 8 MB Smart Cache Box

0 in stock

£296.32 ex. VAT

Figures are exclusive of VAT.

+ Description

Intel® Optane™ memory is a revolutionary new class of non-volatile memory that sits in between system memory and storage to accelerate system performance and responsiveness. When combined with the Intel® Rapid Storage Technology Driver, it seamlessly manages multiple tiers of storage while presenting one virtual drive to the OS, ensuring that data frequently used resides on the fastest tier of storage. Intel® Optane™ memory requires specific hardware and software configuration.

Intel® Turbo Boost Technology dynamically increases the processor's frequency as needed by taking advantage of thermal and power headroom to give you a burst of speed when you need it, and increased energy efficiency when you don’t.

Intel® Virtualization Technology (VT-x) allows one hardware platform to function as multiple “virtual” platforms. It offers improved manageability by limiting downtime and maintaining productivity by isolating computing activities into separate partitions.

+ Tech Specs

Processor socket	LGA 2066 (Socket R4)
Package type	box
On-board graphics card	N
Processor cores	4
Cooler included	N
Processor family	Intel Core i7 X-series
Processor lithography	up to 22nm
Family	Core
Series	X

Attributes

Processor
Processor generation	7th gen Intel® Core™ i7
Processor base frequency	4.3 GHz
Processor manufacturer	Intel
Cooler included	No
Processor codename	Kaby Lake
Memory bandwidth supported by processor (max)	42 GB/s
Thermal Design Power (TDP)	112 W
Processor cache	8 MB
Processor ARK ID	121499
Processor model	i7-7740X
Processor threads	8
System bus rate	8 GT/s
Processor operating modes	64-bit
Processor boost frequency	4.5 GHz
Number of QPI links	0
Bus type	DMI3
Component for	PC
Processor lithography	14 nm
Processor family	Intel® Core™ i7 X-series
Processor cores	4
Processor socket	LGA 2066 (Socket R4)
Processor cache type	Smart Cache
Generation	7th Generation
Package type	Box
Memory
Maximum internal memory supported by processor	64 GB
Memory types supported by processor	DDR4-SDRAM
Memory clock speeds supported by processor	2666 MHz
Memory bandwidth supported by processor (max)	42 GB/s
Supported memory types	DDR4-SDRAM
Memory channels	Dual-channel
ECC	No
Graphics
On-board graphics card	No
Power
Thermal Design Power (TDP)	112 W
Technical details
Thermal solution specification	PCG 2017X
Intel® Turbo Boost Technology	2.0
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
PCI Express slots version	3.0
PCI Express configurations	1x16, 2x8, 1x8+2x4
Supported instruction sets	SSE4.1, SSE4.2, AVX 2.0
Scalability	1S
Embedded options available	No
CPU configuration (max)	1
Product type	Processor
Processor cache	8192 KB
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel 64	Yes
Thermal Design Power (TDP)	112 W
Supported memory types	DDR4-SDRAM
Status	Discontinued
Market segment	Desktop
Launch date	Q2'17
Intel Virtualization Technology (VT-x)	Yes
Processor cache type	Smart Cache
Bus type units	GT/s
Bus bandwidth	8
Maximum memory	64 GB
Processor brand name	Intel Core i7 X-series Intel Core i7 X-series processor
Last change	63903513
Product family	Intel Core Processors
Bus speed	8 GT/s
Features
Maximum number of PCI Express lanes	16
Thermal Design Power (TDP)	112 W
Processor ARK ID	121499
Thermal solution specification	PCG 2017X
PCI Express slots version	3.0
PCI Express configurations	1x16, 2x8, 1x8+2x4
Supported instruction sets	SSE4.1, SSE4.2, AVX 2.0
Scalability	1S
Embedded options available	No
CPU configuration (max)	1
Market segment	Desktop
Harmonized System (HS) code	85423119
Export Control Classification Number (ECCN)	5A992C
Commodity Classification Automated Tracking System (CCATS)	G077159
PCI Express CEM revision	3.0
Processor special features
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel 64	Yes
Conflict-Free processor	Yes
Intel® Optane™ Memory Ready	Yes
Virtual Reality (VR) ready	Yes
Intel® Turbo Boost Technology	2.0
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel® Turbo Boost Technology 2.0 frequency	4.5 GHz
Operational conditions
Tjunction	100 °C
Packaging data
Package width	44 mm
Package depth	116 mm
Package height	101 mm
Package weight	100 g
Package type	Box
Logistics data
Harmonized System (HS) code	85423119
Weight & dimensions
Package width	44 mm
Package depth	116 mm
Package height	101 mm
Package weight	100 g
Other features
Maximum internal memory	65536 MB
Maximum internal memory	64 GB
CPU configuration (max)	1
