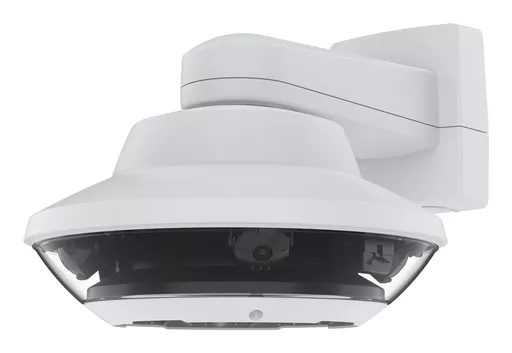

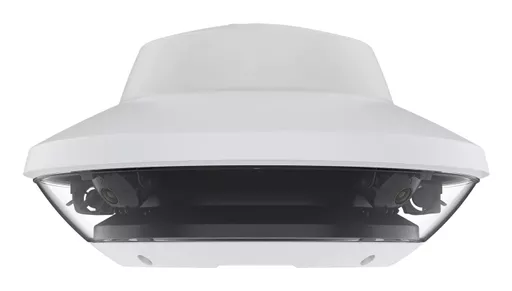

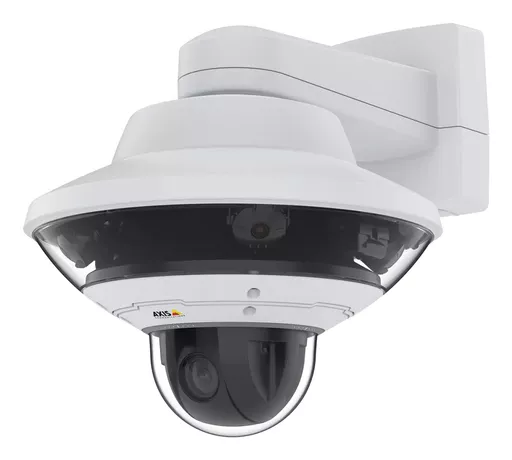

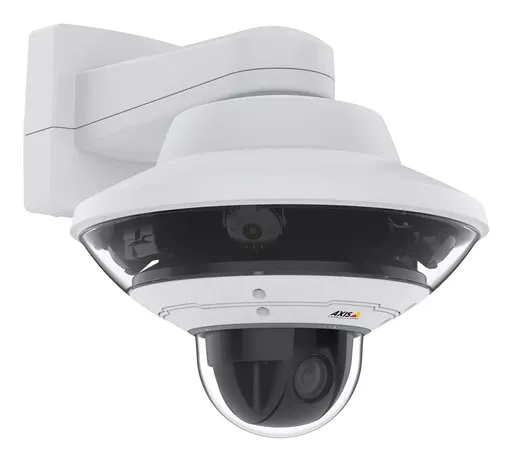

Axis 01980-001 security camera Dome IP security camera Indoor & outdoor 2592 x 1944 pixels Ceiling

SKU: 01980-001 | Brand: Axis

Axis 01980-001 security camera Dome IP security camera Indoor & outdoor 2592 x 1944 pixels Ceiling

0 in stock

£1,594.93 ex. VAT

Figures are exclusive of VAT.

+ Description

With four 5 MP sensors, AXIS Q6010-E provides a complete 360° overview with great image usability both day and night. Designed for operation with current AXIS Q60-E PTZ Network Cameras, it enables one-click PTZ control and autopilot for automatic PTZ tracking within the viewing areas. And, each sensor has exchangeable lenses with autofocus and positioning calibration for maximum flexibility and accurate configuration. AXIS Q6010-E uses the same bracket, power supply and network cable as the connected AXIS Q60-E PTZ Network Camera for cost-efficient installation. Furthermore, Zipstream with support for H.264/H.265 significantly lowers bandwidth and storage requirements without compromising image quality.

+ Tech Specs

Type	IP security camera
Connectivity technology	Wired
Ethernet LAN	Y
Mounting type	Ceiling
Number of cameras	up to 1
Product colour	White
Power source type	PoE
Sensor type	CMOS
Placement supported	indoor & outdoor
Weight	0.01kg

Attributes

Performance
Languages support	Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Korean, Polish, Portuguese, Russian
Type	IP security camera
Connectivity technology	Wired
PTZ control	Yes
Placement supported	Indoor & outdoor
Wide Dynamic Range (WDR)	Yes
Day/night mode	Yes
Design
IK code	IK10
Form factor	Dome
Product colour	White
Mounting type	Ceiling
International Protection (IP) code	IP66
Housing material	Aluminium
Camera
Minimum illumination	0.03 lx
Camera shutter speed	1/32500 - 1/20 s
Camera pan control	Yes
Camera tilt control	Yes
Lens viewing angle, horizontal	360°
Lens viewing angle, vertical	84°
Image sensor
Sensor type	CMOS
Optical sensor size	25.4 / 2.5 mm (1 / 2.5")
Number of sensors	1
Lens system
Number of lenses	1
Maximum aperture number	2
Fixed focal length	2.8 mm
Video
Image quality adjustment	Brightness, Contrast, Saturation, Sharpness
Privacy masking	Yes
Video compression formats	AVC, H.264, H.265, HEVC, MPEG4
Maximum resolution	2592 x 1944 pixels
Video formats supported	AVC, H.264, H.265, HEVC, MPEG4
Supported graphics resolutions	320 x 240, 2592 x 1944
Frame rate	20 fps
Total megapixels	5 MP
Network
Ethernet interface type	Fast Ethernet, Gigabit Ethernet
Ethernet LAN	Yes
Supported network protocols	IPv4, IPv6 USGv6, HTTP, HTTP/2, HTTPSa , SSL/TLSa , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMP, RTCP, ICMP, DHCPv4/v6, ARP, SOCKS, SSH, NTCIP, LLDP, MQTT, Syslog
Storage
Card reader integrated	Yes
Compatible memory cards	SD, SDHC, SDXC
Internal memory	2048 MB
Flash memory	512 MB
Ports & interfaces
Ethernet LAN (RJ-45) ports	2
Connectivity technology	Wired
Security
Alert notification type	E-mail
Video motion detection	Yes
Security algorithms	802.1x RADIUS, HTTPS
IP address filtering	Yes
Power
Power source type	PoE
Power consumption (max)	22 W
Power consumption (Power over Ethernet (PoE))	9 W
Operational conditions
Operating temperature (T-T)	-50 - 50 °C
Storage temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	10 - 100%
Storage relative humidity (H-H)	5 - 95%
Weight & dimensions
Height	201 mm
Diameter	39.5 cm
Weight	4.5 kg
Packaging content
Number of cameras	1
Other features
Video compression formats	AVC, H.264, H.265, HEVC, MPEG4
Logistics data
Harmonized System (HS) code	85258900
