SKU: DS-2CD2046G2-IU/SL(2.8MM)(C)  |   Brand: Hikvision

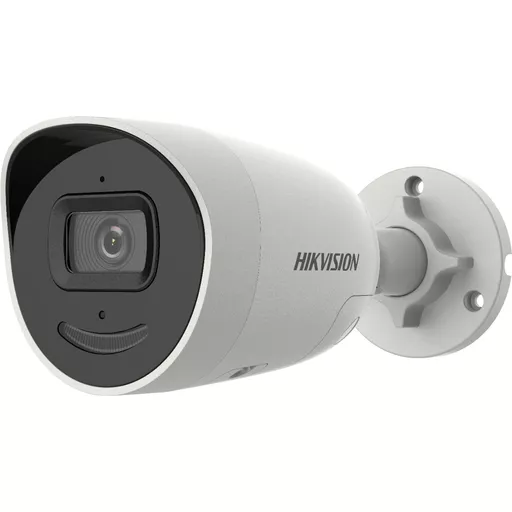

Hikvision DS-2CD2046G2-IU/SL Bullet IP security camera Outdoor 2688 x 1520 pixels Ceiling/wall

SKU: DS-2CD2046G2-IU/SL(2.8MM)(C)  |   Brand: Hikvision

Hikvision DS-2CD2046G2-IU/SL Bullet IP security camera Outdoor 2688 x 1520 pixels Ceiling/wall

0 in stock

£125.43 ex. VAT

Figures are exclusive of VAT.



Empowered by deep learning algorithms, Hikvision AcuSense technology brings human and vehicle targets classification alarms to front- and back-end devices. The system focuses on human and vehicle targets, vastly improving alarm efficiency and effectiveness.

Sensor type CMOS
Ethernet LAN Y
Night vision Y
Bluetooth N
Product colour White
Wi-Fi N
Connectivity technology Wired
Type IP security camera
Placement supported outdoor
Mounting type Ceiling/Wall
Number of cameras up to 1

Performance
Infrared (IR) cut-off filterYes
Number of languages33
Languages supportBulgarian, Traditional Chinese, Czech, Danish, German, Dutch, English, Spanish, Estonian, Finnish, French, Greek, Hungarian, Italian, Japanese, Korean, LAT, Lithuanian, Norwegian, Polish, Portuguese, Romanian, Russian, SER, Slovak, Slovenian, Swedish, Thai, Turkish, Ukrainian, Vietnamese
TypeIP security camera
Connectivity technologyWired
Placement supportedOutdoor
Wide Dynamic Range (WDR)Yes
Day/night modeYes
CertificationFCC (47 CFR 15, B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015);KC (KN 32: 2015, KN 35: 2015) UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014 ); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014 ); BIS (IS 13252(1):2010+A1:2013+A2:2015); LOA (IEC/EN 60950-1) CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach ( (EC) No 1907/2006)
Design
Form factorBullet
Product colourWhite
Mounting typeCeiling/wall
International Protection (IP) codeIP67
Housing materialAluminium
Camera
Minimum illumination0 lx
Tilt angle range0 - 90°
Pan range0 - 360°
Angle of rotation360°
Camera shutter speed1/3 - 1/100000 s
Camera pan controlYes
Camera tilt controlYes
Lens viewing angle, horizontal103°
Lens viewing angle, vertical55°
Lens viewing angle, diagonal123°
Progressive scanYes
Image sensor
Sensor typeCMOS
Progressive scanYes
Optical sensor size25.4 / 3 mm (1 / 3")
Number of sensors1
Lens system
Number of lenses1
Maximum aperture number1.4
Recognize distance (wide)12 m
Observe distance (wide)23.8 m
Identify distance (wide)6 m
Detect distance (wide)60 m
Night vision
Night visionYes
Night vision distance40 m
LED typeIR
Infra-red wavelength850 nm
Video
Noise reductionYes
Image quality adjustmentBrightness, Contrast, Saturation, Sharpness
Privacy maskingYes
Region of Interest (ROI) encodingYes
Highlight Compensation (HLC)Yes
Bit rate controlConstant Bit Rate (CBR)/Variable Bit Rate (VBR)
Bit rate32 Kbps - 8 Mbps
Back Light Compensation (BLC)Yes
Noise reduction technology3D noise reduction
Video compression formatsH.264, H.264+, H.265, H.265+, M-JPEG
Maximum resolution2688 x 1520 pixels
Supported graphics resolutions640 x 360, 640 x 480 (VGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2688 x 1520
Frame rate30 fps
Video streamingYes
Total megapixels4 MP
Audio
Voice codecsAAC, G.711alaw, G.711ulaw, G.722.1, G.726, PCM
Built-in speaker(s)Yes
Sample rate48 kHz
Built-in microphoneYes
Audio formats supportedMP3
Network
BluetoothNo
Ethernet interface typeFast Ethernet
Networking standardsIEEE 802.1x, IEEE 802.3af
Quality of Service (QoS) supportYes
Number of users32 user(s)
Ethernet LANYes
Wi-FiNo
Supported network protocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP
Storage
Maximum memory card size256 GB
Card reader integratedYes
Built-in HDDNo
Compatible memory cardsMicroSD (TransFlash), MicroSDHC, MicroSDXC
Ports & interfaces
Ethernet LAN (RJ-45) ports1
Connectivity technologyWired
Security
Intelligent Video Surveillance (IVS) system featuresScene change
Video motion detectionYes
IP address filteringYes
HTTPS encryptionYes
Password protectionYes
MirrorYes
HeartbeatYes
Anti-flickerYes
Management features
Web-based managementYes
Reset buttonYes
Behavior analysisIntrusion detection, Line crossing detection, Region entrance detection, Region exiting detection
Power
Power source typeDC, PoE
Power consumption (max)6.5 W
Power consumption (Power over Ethernet (PoE))8 W
DC output voltage12
DC output current0.54 A
Certificates
CertificationFCC (47 CFR 15, B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015);KC (KN 32: 2015, KN 35: 2015) UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014 ); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014 ); BIS (IS 13252(1):2010+A1:2013+A2:2015); LOA (IEC/EN 60950-1) CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach ( (EC) No 1907/2006)
Operational conditions
Operating temperature (T-T)-30 - 60 °C
Storage temperature (T-T)-30 - 60 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%
Weight & dimensions
Length191.1 mm
Width72.9 mm
Depth73.3 mm
Weight590 g
Package width234 mm
Package height117 mm
Package depth120 mm
Package weight820 g
Packaging data
Package width234 mm
Package height117 mm
Package depth120 mm
Package weight820 g
Sustainability
Compliance certificatesCE, REACH
Packaging content
Number of cameras1
Technical details
Compliance certificatesCE, REACH
Other features
Video compression formatsH.264, H.264+, H.265, H.265+, M-JPEG
