| Performance |
|---|
| Infrared (IR) cut-off filter | Yes |
| Number of languages | 33 |
| Languages support | Bulgarian, Simplified Chinese, Traditional Chinese, Czech, Danish, Dutch, English, Spanish, Estonian, Finnish, French, Greek, Italian, Japanese, Korean, LAT, Norwegian, Polish, Portuguese, Romanian, Russian, SER, Slovak, Slovenian, Swedish, Thai, Turkish, Ukrainian, Vietnamese |

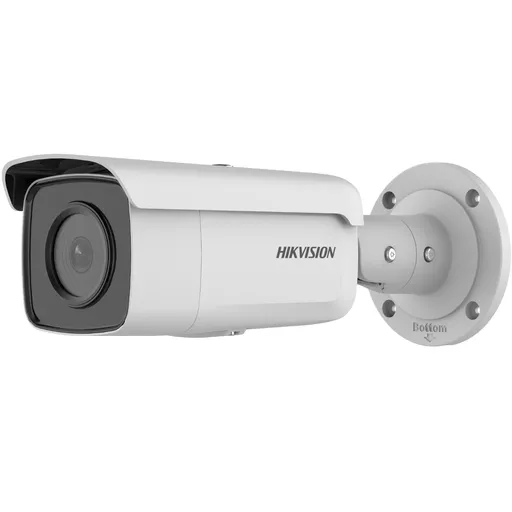

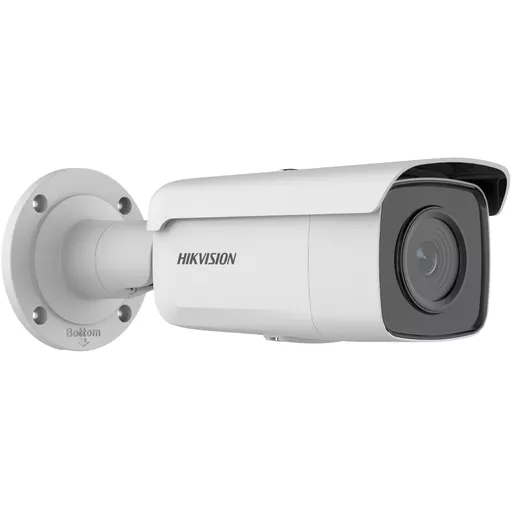

| Type | IP security camera |
| Connectivity technology | Wired |
| Placement supported | Indoor & outdoor |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Design |
|---|
| Form factor | Bullet |
| Product colour | White |
| Mounting type | Ceiling/wall |
| Protection features | Dust resistant, Water resistant |
| International Protection (IP) code | IP67 |
| Camera |
|---|
| Minimum illumination | 0.003 lx |
| Tilt angle range | 0 - 90° |
| Pan range | 0 - 360° |
| Angle of rotation | 360° |
| Camera shutter speed | 1/3 - 1/100000 s |
| Camera pan control | Yes |
| Camera tilt control | Yes |
| Lens viewing angle, horizontal | 83.9° |
| Lens viewing angle, vertical | 44.5° |
| Lens viewing angle, diagonal | 100.8° |
| Progressive scan | Yes |
| Image sensor |
|---|
| Sensor type | CMOS |
| Progressive scan | Yes |
| Optical sensor size | 25.4 / 2.4 mm (1 / 2.4") |
| Number of sensors | 1 |
| Lens system |
|---|
| Number of lenses | 1 |
| Maximum aperture number | 1.6 |
| Recognize distance (wide) | 19.1 m |
| Observe distance (wide) | 37.9 m |
| Identify distance (wide) | 9.6 m |
| Detect distance (wide) | 95.6 m |
| Fixed focal length | 4 mm |
| Night vision |
|---|
| Night vision | Yes |
| Night vision distance | 60 m |
| LED type | IR |
| Infra-red wavelength | 850 nm |
| Video |
|---|
| Image quality adjustment | Brightness, Contrast, DNR, Mirror, Saturation, Sharpness |
| Privacy masking | Yes |
| Region of Interest (ROI) encoding | Yes |
| Highlight Compensation (HLC) | Yes |
| Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Bit rate | 32 Kbps - 16 Mbps |
| Back Light Compensation (BLC) | Yes |
| Maximum resolution | 3200 x 1800 pixels |
| Supported graphics resolutions | 640 x 360, 640 x 480 (VGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2688 x 1520, 3200 x 1800 |
| Total megapixels | 6 MP |
| Network |
|---|
| Bluetooth | No |
| Ethernet interface type | Fast Ethernet |
| Number of users | 32 user(s) |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Supported network protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP |
| User access level | Administrator, Operator, User |
| Number of simultaneous live view channels | 6 channels |
| Live view | Yes |
| Storage |
|---|
| Maximum memory card size | 256 GB |
| Card reader integrated | Yes |
| Built-in HDD | No |
| Compatible memory cards | MicroSD (TransFlash) |
| Ports & interfaces |
|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Connectivity technology | Wired |
| Security |
|---|
| Intelligent Video Surveillance (IVS) system features | Scene change |
| Video motion detection | Yes |
| IP address filtering | Yes |
| HTTPS encryption | Yes |
| Password protection | Yes |
| Mirror | Yes |
| Heartbeat | Yes |
| Anti-flicker | Yes |
| Pixel counter | Yes |
| Password reset via email | Yes |
| Human and vehicle targets classification | Yes |
| Flash log | Yes |
| Digest authentication | Yes |
| Automatic Network Replenishment (ANR) | Yes |
| Audit log | Yes |
| Management features |
|---|
| Web browser | Yes |
| Behavior analysis | Intrusion detection, Line crossing detection, Region entrance detection, Region exiting detection |
| Power |
|---|
| Power source type | DC, PoE |
| Power consumption (max) | 7.5 W |
| Power consumption (Power over Ethernet (PoE)) | 9 W |
| DC output voltage | 12 |
| DC output current | 0.63 A |
| Operational conditions |
|---|
| Operating temperature (T-T) | -30 - 60 °C |
| Storage temperature (T-T) | -30 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Weight & dimensions |
|---|
| Length | 290 mm |
| Diameter | 10.5 cm |
| Weight | 1.08 kg |
| Package width | 386 mm |
| Package height | 155 mm |
| Package depth | 156 mm |
| Package weight | 1.6 kg |
| Packaging data |
|---|
| Package width | 386 mm |
| Package height | 155 mm |
| Package depth | 156 mm |
| Package weight | 1.6 kg |
| Packaging content |
|---|
| Number of cameras | 1 |
