SKU: DS-2CE72KF3T-PIRXO(2.8mm)  |   Brand: Hikvision

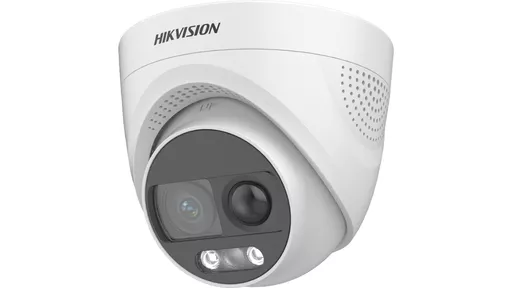

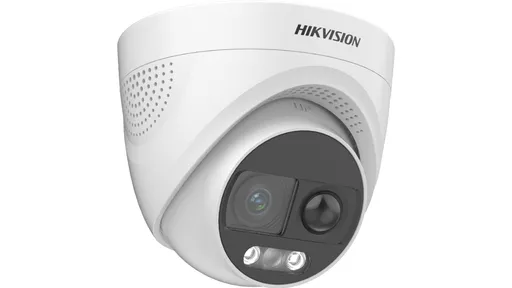

Hikvision DS-2CE72KF3T-PIRXO(2.8mm) Turret CCTV security camera Indoor 2960 x 1665 pixels Ceiling

SKU: DS-2CE72KF3T-PIRXO(2.8mm)  |   Brand: Hikvision

Hikvision DS-2CE72KF3T-PIRXO(2.8mm) Turret CCTV security camera Indoor 2960 x 1665 pixels Ceiling

0 in stock

£65.86 ex. VAT

Figures are exclusive of VAT.



Unlike conventional cameras that can only serve the monitoring purpose, a PIR camera, by virtue of the built-in PIR sensor, detects passive infrared radiation emitted from heat sources. This function then further supports deterrence measures enabled by whether connecting to external alarm devices or built-in components, for example a siren or light.

Hikvision offers a wide selection of PIR cameras ranging from 2 MP to 5 MP, available in both bullet and dome forms. These cameras not only detect, but also help deter would-be intruders by triggering visual or audio alarms. With up to a 11-meter detection distance, the PIR camera covers sufficient areas no matter you need it for an open space, for example a warehouse, or a confined area like the entrance of a store.

Together with the DVR’s Motion Detection feature, the PIR solution helps to provide timely intrusion detection, immediate response, clear evidence, as well as accurate alarms for security system. Hikvision’s PIR cameras are your ideal choice for application scenarios such as home, office, warehouse, small business, and more.

Ethernet LAN N
Sensor type CMOS
Bluetooth N
Power source type DC
Night vision Y
Wi-Fi N
Connectivity technology Wired
Type CCTV security camera
Mounting type Ceiling
Placement supported indoor
Number of cameras up to 1
Product colour White

Performance
Number of languages1
Languages supportEnglish
TypeCCTV security camera
Connectivity technologyWired
Placement supportedIndoor
Wide Dynamic Range (WDR)Yes
Day/night modeYes
Built-in lightYes
Dynamic range130 dB
Design
Form factorTurret
Product colourWhite
Mounting typeCeiling
Protection featuresDust resistant, Water resistant
International Protection (IP) codeIP67
Camera
Minimum illumination0 lx
Tilt angle range0 - 75°
Pan range0 - 360°
White balanceAuto, Manual
Angle of rotation360°
Camera shutter speed1/25 - 1/50000, 1/30 - 1/50000 s
Lens viewing angle, horizontal109°
Lens viewing angle, vertical58°
Lens viewing angle, diagonal129°
Number of Privacy masking areas4
Image sensor
Sensor typeCMOS
Lens system
Number of lenses1
Fixed focal length2.8 mm
Night vision
Night visionYes
B/W night vision distance20 m
Video
Image quality adjustmentBrightness, Contrast, Mirror, Sharpness
Privacy maskingYes
Highlight Compensation (HLC)Yes
Back Light Compensation (BLC)Yes
Noise reduction technology2D noise reduction, 3D noise reduction
Maximum resolution2960 x 1665 pixels
Supported video modes1080p
Frame rate30 fps
Network
BluetoothNo
Ethernet LANNo
Wi-FiNo
Storage
Built-in HDDNo
Ports & interfaces
BNC output ports1
Connectivity technologyWired
Security
Privacy protectionYes
Video motion detectionYes
Alarm input channels1
Power
Power source typeDC
Power consumption (max)7.7 W
DC output voltage12
Operational conditions
Operating temperature (T-T)-40 - 60 °C
Operating relative humidity (H-H)0 - 90%
Weight & dimensions
Height91.6 mm
Diameter11 cm
Weight416 g
Packaging content
Number of cameras1
Technical details
Lens mount interfaceM16
Integrated PIR sensorYes
