SKU: DS-2DE7A412MCG-EB  |   Brand: Hikvision

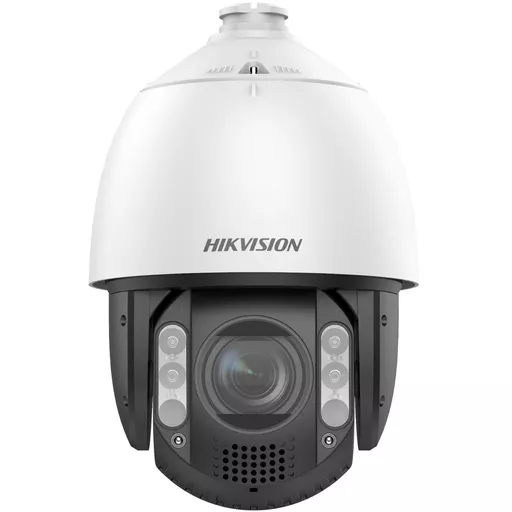

Hikvision DS-2DE7A412MCG-EB security camera Dome IP security camera Indoor & outdoor 2560 x 1440 pixels Ceiling/wall

SKU: DS-2DE7A412MCG-EB  |   Brand: Hikvision

Hikvision DS-2DE7A412MCG-EB security camera Dome IP security camera Indoor & outdoor 2560 x 1440 pixels Ceiling/wall

0 in stock

£652.26 ex. VAT

Figures are exclusive of VAT.



Meet TandemVu PTZ

Big picture and details in one view

The TandemVu technology features Hikvision’s next-generation camera design, integrating multiple lenses in one unit to provide big picture and small details in tandem.

Equipped with this technology, our new TandemVu PTZ cameras keep the overall view even during the pan, tilt, and zoom maneuvers. Users will see everything and miss nothing at any given instant, getting great situational awareness from the moment they set the camera up.

Why Hikvision PTZ cameras?
Hikvision pan-tilt-zoom (PTZ) cameras help users get wide-area coverage and zoom in for further detail in case of security events with a single camera. They enable users to view from any angle, for any detail, at any moment.

View from any angle
Hikvision PTZ cameras cover expansive areas and detect events in a flash.

- Panning & tilting – Left and right, up and down for up to 360°
- Auto tracking – To autonomously track preset types of objects
- Panoramic views – Via image stitching of TandemVu PTZs

Get every detail in sight
Hikvision PTZ cameras guarantee the capture of every single detail in view.

- Close-up views – By zooming in from extended distances
- AI analytics – To extract object features accurately
- Smart linkage – Between various lenses of TandemVu PTZs to track objects and details

At disposal at any moment
Hikvision PTZ cameras stay vigilant and promise great performance 24/7.

- Low-light imaging – For vivid views with rich color even in poor light
- Weather resistance – To operate in any weather or environment
- Live Guard – To ward off trespassers with sound and light, around the clock

Ethernet LAN Y
Sensor type CMOS
Mounting type Ceiling/Wall
Placement supported indoor & outdoor
Number of cameras up to 1
Night vision Y
Bluetooth N
Wi-Fi N
Connectivity technology Wired
Type IP security camera
Weight 0.01kg

Performance
PTZ modes4 Pattern, Auto scan
TypeIP security camera
Connectivity technologyWired
PTZ controlYes
Placement supportedIndoor & outdoor
Wide Dynamic Range (WDR)Yes
Day/night modeYes
CertificationFCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC VoC (ICES-003: Issue 6, 2019); KC (KN 32: 2015, KN 35: 2015) UL (UL 62368-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); CE-LVD (EN 62368-1:2014+A11:2017); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015); LOA (SANS IEC60950-1) CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Built-in lightYes
Dynamic range120 dB
Design
Form factorDome
Product colourBlack, White
Mounting typeCeiling/wall
International Protection (IP) codeIP66
Camera
Tilt preset speed200 °/sec
Pan preset speed240 °/sec
Minimum illumination0.0005 lx
Tilt angle range-15 - 90°
Tilt speed120 °/sec
Pan range0 - 360°
Pan speed160 °/sec
Camera shutter speed1 - 1/30000 s
Lens viewing angle, horizontal51.5 - 7.9°
Lens viewing angle, vertical30.3 - 4.4°
Lens viewing angle, diagonal57.9 - 9°
Image sensor
Sensor typeCMOS
Optical sensor size25.4 / 1.8 mm (1 / 1.8")
Number of sensors1
Lens system
Optical zoom12x
Digital zoom16x
Focal length range6.7 - 80.4 mm
Fixed focal length6.7 mm
Night vision
Night visionYes
Night vision distance150 m
LED typeIR
Video
Noise reductionYes
Image quality adjustmentBrightness, Contrast, Saturation, Sharpness
Privacy maskingYes
Region of Interest (ROI) encodingYes
Highlight Compensation (HLC)Yes
Back Light Compensation (BLC)Yes
Noise reduction technology3D noise reduction
Video compression formatsH.264+, H.264H, H.265, H.265+, M-JPEG
Maximum resolution2560 x 1440 pixels
Supported graphics resolutions352 x 240, 352 x 288, 640 x 480 (VGA), 704 x 480, 704 x 576, 1280 x 960, 1920 x 1080 (HD 1080), 2560 x 1440
Total megapixels4 MP
Audio
Signal-to-Noise Ratio (SNR)52 dB
Audio formats supportedAAC-LC, G.711 A-law, G.711 μ-law, G.722.1, G.726, MP2L2, PCM
Network
BluetoothNo
Number of users32 user(s)
Ethernet LANYes
Wi-FiNo
Supported network protocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour, WebSocket, WebSockets
User access levelAdministrator, Operator, User
Number of simultaneous live view channels20 channels
Live viewYes
Storage
Maximum memory card size256 GB
Card reader integratedYes
Built-in HDDNo
Compatible memory cardsMicroSD (TransFlash), MicroSDHC, MicroSDXC
Ports & interfaces
Ethernet LAN (RJ-45) ports1
Connectivity technologyWired
Security
Video motion detectionYes
Security algorithmsHTTPS
Active tampering alarmYes
Password protectionYes
Alarm input channels2
Alarm output channels1
Management features
Web browserYes
Reset buttonYes
Behavior analysisIntrusion detection, Line crossing detection, Object removal detection, Region entrance detection, Region exiting detection, Unattended baggage detection
Power
Power source typeDC, PoE
Power consumption (max)42 W
DC output voltage24
Certificates
CertificationFCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC VoC (ICES-003: Issue 6, 2019); KC (KN 32: 2015, KN 35: 2015) UL (UL 62368-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); CE-LVD (EN 62368-1:2014+A11:2017); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015); LOA (SANS IEC60950-1) CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Operational conditions
Operating temperature (T-T)-30 - 65 °C
Operating relative humidity (H-H)0 - 90%
Weight & dimensions
Height357.3 mm
Diameter22 cm
Weight5.5 kg
Packaging content
Number of cameras1
Other features
Video compression formatsH.264+, H.264H, H.265, H.265+, M-JPEG
