SKU: DS-2DF8225IX-AEL(T5)  |   Brand: Hikvision

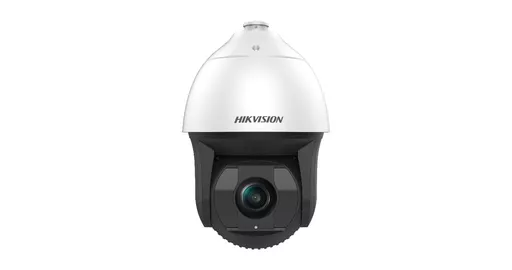

Hikvision DS-2DF8225IX-AEL(T5) security camera Dome IP security camera Indoor & outdoor 1920 x 1080 pixels Ceiling

SKU: DS-2DF8225IX-AEL(T5)  |   Brand: Hikvision

Hikvision DS-2DF8225IX-AEL(T5) security camera Dome IP security camera Indoor & outdoor 1920 x 1080 pixels Ceiling

0 in stock

£1,128.90 ex. VAT

Figures are exclusive of VAT.



Hikvision DS-2DF8225IX-AEL(T5) 2MP 25× Network IR Speed Dome adopts 1/1.8" progressive scan CMOS chip. With the 25× optical zoom lens, the camera offers more details over expansive areas.
This series of cameras can be widely used for wide ranges of high-definition, such as the rivers, forests, roads, railways, airports, ports, squares, parks, scenic spots, stations and large venues, etc.

Ethernet LAN Y
Sensor type CMOS
Bluetooth N
Mounting type Ceiling
Placement supported indoor & outdoor
Number of cameras up to 1
Night vision Y
Wi-Fi N
Connectivity technology Wired
Type IP security camera
Weight 0.01kg

Performance
Preset pointsYes
Infrared (IR) cut-off filterYes
Number of languages33
Languages supportMulti
PTZ modes4 Pattern, Auto scan, Preset point
PTZ protocolsPelco-P/D
TypeIP security camera
Connectivity technologyWired
PTZ controlYes
Placement supportedIndoor & outdoor
Wide Dynamic Range (WDR)Yes
Alarm input/outputYes
CertificationFCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC VoC (ICES-003: Issue 7); KC (KN 32: 2015, KN 35: 2015) UL (UL 62368-1) CB (IEC 62368-1:2014+A11); CE-LVD (EN 62368-1:2014+A11:2017), BIS (IS 13252(Part 1):2010/ IEC 60950-1: 2005); LOA (IEC/EN 60950-1) CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006
Dynamic range140 dB
Design
IK codeIK10
Form factorDome
Product colourBlack, White
Mounting typeCeiling
International Protection (IP) codeIP67
Camera
Tilt preset speed250 °/sec
Pan preset speed280 °/sec
Preset programs quantity300
Minimum illumination0 lx
Tilt angle range-20 - 90°
Tilt speed150 °/sec
Pan range0 - 360°
Pan speed210 °/sec
Camera shutter speed1/1 - 1/30000 s
Camera pan controlYes
Camera tilt controlYes
Lens viewing angle, horizontal59.8 - 3.3°
Lens viewing angle, vertical33.7 - 1.9°
Lens viewing angle, diagonal65 - 3.8°
Progressive scanYes
Image sensor
Sensor typeCMOS
Progressive scanYes
Optical sensor size25.4 / 1.8 mm (1 / 1.8")
Number of sensors1
Lens system
Number of lenses1
Maximum aperture number1.5
Auto focusYes
Detect distance2034.5 m
Observe distance807.3 m
Recognize distance406.9 m
Identify distance203.4 m
FocusMotorized/Manual
Zoom capabilityYes
Optical zoom25x
Digital zoom16x
Focal length range5.9 - 147.5 mm
Night vision
Night visionYes
Night vision distance400 m
LED typeIR
Video
Image quality adjustmentBrightness, Contrast, Saturation, Sharpness
Privacy maskingYes
Region of Interest (ROI) encodingYes
Highlight Compensation (HLC)Yes
Back Light Compensation (BLC)Yes
Noise reduction technology3D noise reduction
Video compression formatsH.264, H.264+, H.265, H.265+, M-JPEG
Maximum resolution1920 x 1080 pixels
Supported graphics resolutions352 x 240, 352 x 288, 640 x 480 (VGA), 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080)
Total megapixels2 MP
Audio
Audio input channels1.0 channels
Audio output channels1.0 channels
Audio formats supportedG.711 A-law, G.711 μ-law, G.722.1, G.726, MP2L2, PCM
Bit rate range16 - 192 Kbit/s
Network
BluetoothNo
Ethernet interface typeFast Ethernet
Quality of Service (QoS) supportYes
Number of users32 user(s)
Ethernet LANYes
Wi-FiNo
Supported network protocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, PPPoE, UDP, IGMP, ICMP, Bonjour
Client interoperabilityHikCentral, iVMS-4200, Hik-Connect
User access levelAdministrator, Operator, User
Number of simultaneous live view channels20 channels
Live viewYes
Storage
Maximum memory card size256 GB
Card reader integratedYes
Built-in HDDNo
Compatible memory cardsMicroSD (TransFlash), MicroSDHC, MicroSDXC
Ports & interfaces
BNC output ports1
RS-485 ports1
Ethernet LAN (RJ-45) ports1
Connectivity technologyWired
Security
Intelligent Video Surveillance (IVS) system featuresCrossing line, Intrusion, Region entrance detection, Region exiting detection, Vehicle detection
Video motion detectionYes
Security algorithmsEAP-LEAP, EAP-MD5, EAP-TLS
IP address filteringYes
Active tampering alarmYes
Password protectionYes
MirrorYes
Digital watermarkYes
Alarm input channels7
Alarm output channels2
Management features
Web-based managementYes
Behavior analysisIntrusion detection, Line crossing detection, Object removal detection, Region entrance detection, Region exiting detection, Unattended baggage detection
Power
Power source typeAC, PoE
Power consumption (max)60 W
Power consumption (Power over Ethernet (PoE))50 W
AC input voltage24 V
Certificates
CertificationFCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC VoC (ICES-003: Issue 7); KC (KN 32: 2015, KN 35: 2015) UL (UL 62368-1) CB (IEC 62368-1:2014+A11); CE-LVD (EN 62368-1:2014+A11:2017), BIS (IS 13252(Part 1):2010/ IEC 60950-1: 2005); LOA (IEC/EN 60950-1) CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006
Operational conditions
Operating temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)0 - 95%
Weight & dimensions
Height410 mm
Diameter26.7 cm
Weight8 kg
Packaging content
Number of cameras1
Other features
FocusMotorized/Manual
Video compression formatsH.264, H.264+, H.265, H.265+, M-JPEG
Browser supportedIE11, Chrome 57+, Firefox 52+, Safari 11+
