| Performance |
|---|
| Infrared (IR) cut-off filter | Yes |
| Number of languages | 33 |
| Languages support | Multi |
| PTZ modes | 4 Pattern |
| PTZ protocols | Pelco-P/D |

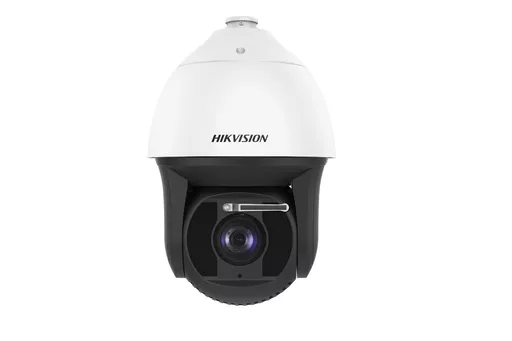

| Type | IP security camera |
| Connectivity technology | Wired |
| PTZ control | Yes |
| Placement supported | Indoor & outdoor |
| Auto-tracking | Yes |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Alarm input/output | Yes |
| Dynamic range | 140 dB |
| Design |
|---|
| Form factor | Dome |
| Product colour | Black, White |
| Mounting type | Ceiling/wall |
| Protection features | Waterproof |
| International Protection (IP) code | IP67 |
| Camera |
|---|
| Tilt preset speed | 250 °/sec |
| Pan preset speed | 280 °/sec |
| Preset programs quantity | 300 |
| Minimum illumination | 0 lx |
| Tilt angle range | -20 - 90° |
| Tilt speed | 150 °/sec |
| Pan range | 0 - 360° |
| Pan speed | 210 °/sec |
| White balance | ATW, Auto, Fluorescent, Indoor, Lamp, Manual, Outdoor, Sodium lamp |
| Camera shutter speed | 1/1 - 1/30000 s |
| Camera pan control | Yes |
| Camera tilt control | Yes |
| Lens viewing angle, horizontal | 59.8 - 3.3° |
| Lens viewing angle, vertical | 33.7 - 1.9° |
| Lens viewing angle, diagonal | 65 - 3.8° |
| Progressive scan | Yes |
| Image sensor |
|---|
| Sensor type | CMOS |
| Progressive scan | Yes |
| Optical sensor size | 25.4 / 1.8 mm (1 / 1.8") |
| Number of sensors | 1 |
| Lens system |
|---|
| Number of lenses | 1 |
| Maximum aperture number | 1.5 |
| Auto focus | Yes |
| Recognize distance (tele) | 406.9 m |
| Observe distance (tele) | 807.3 m |
| Identify distance (tele) | 203.4 m |
| Detect distance (tele) | 2034.5 m |
| Focus | Motorized/Manual |
| Zoom capability | Yes |
| Optical zoom | 25x |
| Digital zoom | 16x |
| Focal length range | 5.9 - 147.5 mm |
| Night vision |
|---|
| Night vision | Yes |
| Night vision distance | 400 m |
| LED type | IR |
| Video |
|---|
| Noise reduction | Yes |
| Image quality adjustment | Brightness, Contrast, Saturation, Sharpness |
| Privacy masking | Yes |
| Region of Interest (ROI) encoding | Yes |
| Highlight Compensation (HLC) | Yes |
| Back Light Compensation (BLC) | Yes |
| Noise reduction technology | 3D noise reduction |
| Video compression formats | H.264, H.264+, H.265, H.265+, M-JPEG |
| Maximum resolution | 2560 x 1440 pixels |
| Supported graphics resolutions | 352 x 240, 352 x 288, 640 x 480 (VGA), 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080), 2560 x 1440 |
| Analog signal format system | NTSC, PAL |
| Frame rate | 30 fps |
| Video streaming | Yes |
| Total megapixels | 4 MP |
| Audio |
|---|
| Voice codecs | G.711, G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, PCM |
| Audio input channels | 1.0 channels |
| Audio output channels | 1.0 channels |
| Bit rate range | 16 - 192 Kbit/s |
| Network |
|---|
| Bluetooth | No |
| Ethernet interface type | Fast Ethernet |
| Quality of Service (QoS) support | Yes |
| Number of users | 32 user(s) |
| Streaming method | Multicast |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Supported network protocols | IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, PPPoE, UDP, IGMP, ICMP, Bonjour |
| Client interoperability | HikCentral, iVMS-4200, Hik-Connect |
| User access level | Administrator, Operator, User |
| Number of simultaneous live view channels | 20 channels |
| Live view | Yes |
| Storage |
|---|
| Maximum memory card size | 256 GB |
| Card reader integrated | Yes |
| Built-in HDD | No |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Ports & interfaces |
|---|
| BNC output ports | 1 |
| RS-485 ports | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Connectivity technology | Wired |
| Security |
|---|
| Privacy protection | Yes |
| Intelligent Video Surveillance (IVS) system features | Abandoned object, Crossing line, Face detection, Intrusion, Missing object |
| Video motion detection | Yes |
| Security algorithms | EAP-LEAP, EAP-MD5, EAP-TLS |
| IP address filtering | Yes |
| HTTPS encryption | Yes |
| Password protection | Yes |
| Mirror | Yes |
| Digital watermark | Yes |
| Alarm input channels | 7 |
| Alarm output channels | 2 |
| Management features |
|---|
| Web-based management | Yes |
| Behavior analysis | Intrusion detection, Line crossing detection, Object removal detection, Region entrance detection, Region exiting detection, Unattended baggage detection |
| Power |
|---|
| Power source type | AC, PoE |
| Power consumption (max) | 60 W |
| Power consumption (Power over Ethernet (PoE)) | 50 W |
| AC input voltage | 24 V |
| Operational conditions |
|---|
| Operating temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Weight & dimensions |
|---|
| Height | 410 mm |
| Diameter | 26.7 cm |
| Weight | 8 kg |
| Packaging content |
|---|
| Number of cameras | 1 |
| Other features |
|---|
| Focus | Motorized/Manual |
| Video compression formats | H.264, H.264+, H.265, H.265+, M-JPEG |
| Browser supported | IE11, Chrome 57.0+, Firefox 52.0+, Safari 11+ |
