SKU: DS-2DF8C425MHS-DELW  |   Brand: Hikvision

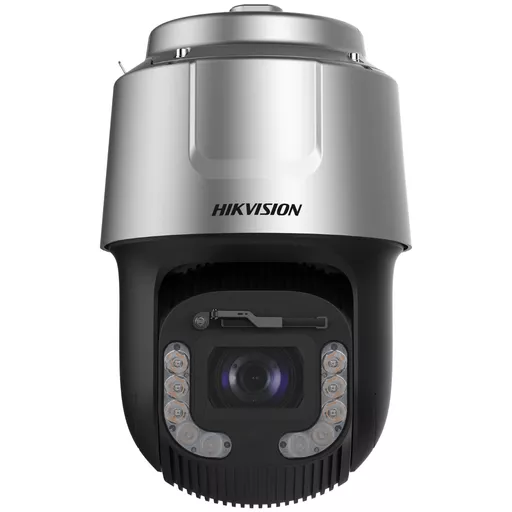

Hikvision DS-2DF8C425MHS-DELW security camera Bulb IP security camera Indoor & outdoor 2560 x 1440 pixels Ceiling

SKU: DS-2DF8C425MHS-DELW  |   Brand: Hikvision

Hikvision DS-2DF8C425MHS-DELW security camera Bulb IP security camera Indoor & outdoor 2560 x 1440 pixels Ceiling

0 in stock

£1,423.67 ex. VAT

Figures are exclusive of VAT.



Wi-Fi N
Connectivity technology Wired
Type IP security camera
Ethernet LAN Y
Sensor type CMOS
Bluetooth N
Night vision Y
Mounting type Ceiling
Placement supported indoor & outdoor
Number of cameras up to 1
Weight 0.01kg

Performance
Preset pointsYes
Infrared (IR) cut-off filterYes
Number of languages33
Languages supportEnglish, Norwegian, Spanish, Swedish, Bulgarian, Estonian, Italian, Polish, Thai, Finnish, Japanese, Portuguese, Turkish, French, Romanian, Ukrainian, Traditional Chinese, Greek, Korean, Russian, Vietnamese, Czech, LAT, Danish, Latvian, SER, German, HRV, Slovak, Dutch, Hungarian, Slovenian
PTZ modes4 Pattern, Auto scan, Preset point
PTZ protocolsPelco-P/D
TypeIP security camera
Connectivity technologyWired
PTZ controlYes
Placement supportedIndoor & outdoor
Auto-trackingYes
Wide Dynamic Range (WDR)Yes
Day/night modeYes
CertificationEMC FCC (47 CFR Part 15, Subpart B),CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013 + A1: 2019, EN 50130-4: 2011 + A1: 2014),RCM (AS/NZS CISPR 32: 2015),IC (ICES-003: Issue 7),KC (KN 32: 2015, KN 35: 2015) Safety CE-LVD (EN 62368-1: 2014/A11: 2017),CB (IEC 62368-1: 2014 + A11),UL (UL 62368-1),BIS (IS 13252 (Part 1): 2010/IEC 60950-1: 2005),LOA (IEC/EN 60950-1) Environment CE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No 1907/2006) Protection IP67 (IEC 60529-2013),IK10 (IEC 62262:2002),TVS 6K V lightning protection, surge protection and voltage transient protection
Built-in lightYes
Dynamic range140 dB
Design
IK codeIK10
Form factorBulb
Product colourBlack, Silver
Mounting typeCeiling
International Protection (IP) codeIP67
Camera
Tilt preset speed250 °/sec
Pan preset speed280 °/sec
Auto flipYes
Minimum illumination0 lx
Tilt angle range-20 - 90°
Tilt speed150 °/sec
Pan range0 - 360°
Pan speed210 °/sec
Camera shutter speed1 - 1/30000 s
Camera pan controlYes
Camera tilt controlYes
Lens viewing angle, horizontal59 - 3.05°
Lens viewing angle, vertical34.28 - 1.73°
Lens viewing angle, diagonal66.92 - 3.49°
Progressive scanYes
Image sensor
Sensor typeCMOS
Progressive scanYes
Optical sensor size25.4 / 1.8 mm (1 / 1.8")
Lens system
Number of lenses1
Maximum aperture number1.6
Auto focusYes
Zoom capabilityYes
Optical zoom21x
Digital zoom16x
Focal length range5.9 - 147.5 mm
Night vision
Night visionYes
Night vision distance300 m
LED typeIR
Video
Noise reductionYes
Image quality adjustmentBrightness, Contrast, Saturation, Sharpness
Privacy maskingYes
Image stabilizerYes
Region of Interest (ROI) encodingYes
Highlight Compensation (HLC)Yes
Bit rate32 Kbps - 16 Mbps
Back Light Compensation (BLC)Yes
Noise reduction technology3D noise reduction
Video compression formatsH.264, H.264+, H.265, H.265+, M-JPEG
Maximum resolution2560 x 1440 pixels
Supported graphics resolutions352 x 240, 352 x 288, 640 x 480 (VGA), 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080), 2560 x 1440
Frame rate25 fps
Total megapixels4 MP
Audio
Audio formats supportedG.711 A-law, G.711 μ-law, G.722.1, G.726, MP2L2, PCM
Bit rate range16 - 192 Kbit/s
Network
BluetoothNo
Ethernet interface typeFast Ethernet
Networking standardsIEEE 802.1x
Quality of Service (QoS) supportYes
Number of users32 user(s)
Ethernet LANYes
Wi-FiNo
Supported network protocolsIPv4/IPv6,HTTP,HTTPS,802.1X,QoS,FTP,TCP/IP,ICMP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,PPPoE,UPnP,SMTP,SNMP,IGMP,UDP,Bonjour,NTP
User access levelAdministrator, Operator, User
Number of simultaneous live view channels20 channels
Storage
Maximum memory card size256 GB
Card reader integratedYes
Built-in HDDNo
Compatible memory cardsMicroSD (TransFlash), MicroSDHC, MicroSDXC
Ports & interfaces
BNC output ports1
RS-485 ports1
Microphone inYes
Headphone outputs1
Ethernet LAN (RJ-45) ports1
Connectivity technologyWired
Security
Intelligent Video Surveillance (IVS) system featuresCrossing line, Face detection, Human detection, Intrusion, Region entrance detection, Region exiting detection, Vehicle detection
Video motion detectionYes
Security algorithmsEAP-LEAP, EAP-MD5, EAP-TLS
IP address filteringYes
HTTPS encryptionYes
Active tampering alarmYes
Password protectionYes
Digital watermarkYes
Human and vehicle targets classificationYes
Alarm input channels7
Alarm output channels2
Management features
Web browserYes
Behavior analysisIntrusion detection, Line crossing detection, Object removal detection, Region entrance detection, Region exiting detection, Unattended baggage detection
Power
Power source typeDC, PoE
Power consumption (max)62 W
DC output voltage36
Certificates
CertificationEMC FCC (47 CFR Part 15, Subpart B),CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013 + A1: 2019, EN 50130-4: 2011 + A1: 2014),RCM (AS/NZS CISPR 32: 2015),IC (ICES-003: Issue 7),KC (KN 32: 2015, KN 35: 2015) Safety CE-LVD (EN 62368-1: 2014/A11: 2017),CB (IEC 62368-1: 2014 + A11),UL (UL 62368-1),BIS (IS 13252 (Part 1): 2010/IEC 60950-1: 2005),LOA (IEC/EN 60950-1) Environment CE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No 1907/2006) Protection IP67 (IEC 60529-2013),IK10 (IEC 62262:2002),TVS 6K V lightning protection, surge protection and voltage transient protection
Operational conditions
Operating temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)0 - 95%
Weight & dimensions
Height430 mm
Diameter26.7 cm
Weight10 kg
Features
Basic eventMotion detection, video tampering alarm, alarm input, alarm output, exception
Packaging content
Number of cameras1
Other features
Video compression formatsH.264, H.264+, H.265, H.265+, M-JPEG
