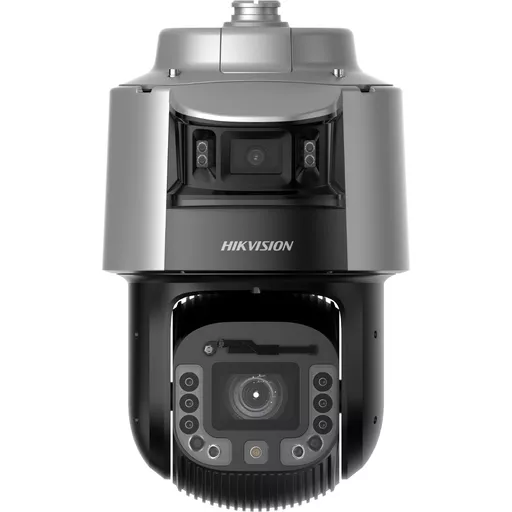

Hikvision DS-2SF8C442MXS-DLW(14F1)(P3) security camera Dome IP security camera Outdoor 2560 x 1440 pixels Ceiling/wall

SKU: DS-2SF8C442MXS-DLW(14F1)(P3) | Brand: Hikvision

Hikvision DS-2SF8C442MXS-DLW(14F1)(P3) security camera Dome IP security camera Outdoor 2560 x 1440 pixels Ceiling/wall

0 in stock

£1,651.00 ex. VAT

Figures are exclusive of VAT.

+ Description

With a perfect balance of performance and value, Hikvision Pro Series network cameras aim to provide just the right components, including intelligent features that are affordable and easy to use.

+ Tech Specs

Night vision	Y
Wi-Fi	N
Connectivity technology	Wired
Type	IP security camera
Bluetooth	N
Power source type	DC
Mounting type	Ceiling/Wall
Sensor type	CMOS
Ethernet LAN	Y
Number of cameras	up to 1
Placement supported	outdoor
Weight	0.01kg

Attributes

Performance
Auto pan mode	Yes
Auto patrol mode	Yes
Preset points	Yes
Number of languages	33
Languages support	Multi
Type	IP security camera
Connectivity technology	Wired
PTZ control	Yes
Placement supported	Outdoor
Auto-tracking	Yes
Wide Dynamic Range (WDR)	Yes
Day/night mode	Yes
Alarm input/output	Yes
Certification	FCC (47 CFR Part 15, Subpart B),CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013 + A1: 2019, EN 50130-4: 2011 + A1: 2014),RCM (AS/NZS CISPR 32: 2015),IC (ICES-003: Issue 7),KC (KN 32: 2015, KN 35: 2015) UL (UL 62368-1),CB (IEC 62368-1: 2014 + A11),CE-LVD (EN 62368-1: 2014/A11: 2017),BIS (IS 13252 (Part 1): 2010/IEC 60950-1: 2005),LOA (IEC/EN 60950-1) CE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No 1907/2006)
Design
IK code	IK10
Form factor	Dome
Product colour	Black, Grey
Mounting type	Ceiling/wall
Protection features	Dust resistant, Vandal proof, Water resistant
International Protection (IP) code	IP67
Camera
Tilt preset speed	200 °/sec
Pan preset speed	240 °/sec
Minimum illumination	0 lx
Tilt angle range	-20 - 90°
Tilt speed	120 °/sec
Pan range	0 - 360°
Pan speed	160 °/sec
Camera shutter speed	1/3 - 1/100000 s
Camera pan control	Yes
Camera tilt control	Yes
Lens viewing angle, horizontal	89°
Lens viewing angle, vertical	45°
Lens viewing angle, diagonal	107°
Progressive scan	Yes
Image sensor
Sensor type	CMOS
Progressive scan	Yes
Optical sensor size	25.4 / 1.8 mm (1 / 1.8")
Number of sensors	1
Lens system
Number of lenses	1
Maximum aperture number	1.2
Auto focus	Yes
Minimum aperture number	1
Focus	Motorized/Manual
Zoom capability	Yes
Optical zoom	42x
Digital zoom	16x
Focal length range	4, 6 - 252 mm
Night vision
Night vision	Yes
Night vision distance	300 m
LED type	IR
Video
Noise reduction	Yes
Image quality adjustment	Brightness, Contrast, Saturation, Sharpness
Gain control type	Auto
Region of Interest (ROI) encoding	Yes
Highlight Compensation (HLC)	Yes
Bit rate control	Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Bit rate	32 Kbps - 16 Mbps
Back Light Compensation (BLC)	Yes
Noise reduction technology	3D noise reduction
Video compression formats	H.264, H.264+, H.265, H.265+
Maximum resolution	2560 x 1440 pixels
Supported graphics resolutions	352 x 240, 352 x 288, 640 x 480 (VGA), 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080), 2560 x 1440
Frame rate	30 fps
Video streaming	Yes
Total megapixels	4 MP
Audio
Audio input channels	1.0 channels
Audio output channels	1.0 channels
Sample rate	48 kHz
Signal-to-Noise Ratio (SNR)	52 dB
Audio codecs	G.711,G.722.1,G.726,MP2L2,PCM,AAC-LC
Network
Bluetooth	No
Ethernet interface type	Fast Ethernet
Networking standards	IEEE 802.1x
Quality of Service (QoS) support	Yes
Number of users	32 user(s)
Ethernet LAN	Yes
Wi-Fi	No
Supported network protocols	IPv4/IPv6,HTTP,HTTPS,802.1X,QoS,SMTP,UPnP,SNMP,DNS,DDNS,NTP,RTSP,RTCP,RTP,TCP/IP,UDP,IGMP,ICMP,DHCP,PPPoE,Bonjour,FTP
User access level	Administrator, Operator, User
Storage
Maximum memory card size	256 GB
Card reader integrated	Yes
Built-in HDD	No
Compatible memory cards	MicroSD (TransFlash), MicroSDHC, MicroSDXC
Ports & interfaces
RS-485 ports	1
Ethernet LAN (RJ-45) ports	1
Connectivity technology	Wired
Security
Alert notification type	E-mail
Video motion detection	Yes
IP address filtering	Yes
HTTPS encryption	Yes
Active tampering alarm	Yes
Password protection	Yes
Mirror	Yes
Management features
Web browser	Yes
Reset button	Yes
Behavior analysis	Intrusion detection, Line crossing detection, Region entrance detection, Region exiting detection
Power
Power source type	DC
Power consumption (max)	70 W
DC output voltage	36
Certificates
Certification	FCC (47 CFR Part 15, Subpart B),CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013 + A1: 2019, EN 50130-4: 2011 + A1: 2014),RCM (AS/NZS CISPR 32: 2015),IC (ICES-003: Issue 7),KC (KN 32: 2015, KN 35: 2015) UL (UL 62368-1),CB (IEC 62368-1: 2014 + A11),CE-LVD (EN 62368-1: 2014/A11: 2017),BIS (IS 13252 (Part 1): 2010/IEC 60950-1: 2005),LOA (IEC/EN 60950-1) CE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No 1907/2006)
Operational conditions
Operating temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	0 - 95%
Weight & dimensions
Height	453.2 mm
Diameter	29 cm
Weight	11.5 kg
Packaging content
Number of cameras	1
Other features
Focus	Motorized/Manual
Video compression formats	H.264, H.264+, H.265, H.265+
Audio codecs	G.711,G.722.1,G.726,MP2L2,PCM,AAC-LC
