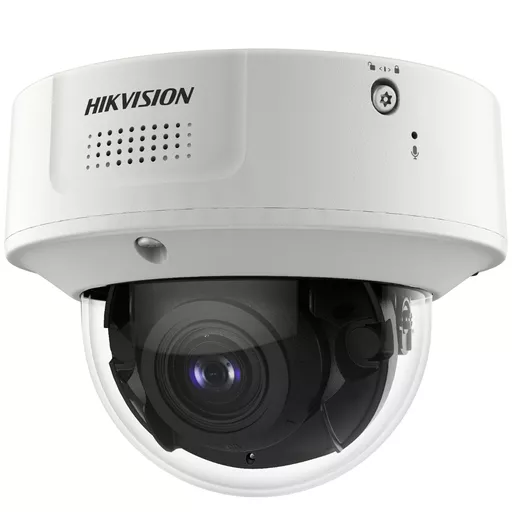

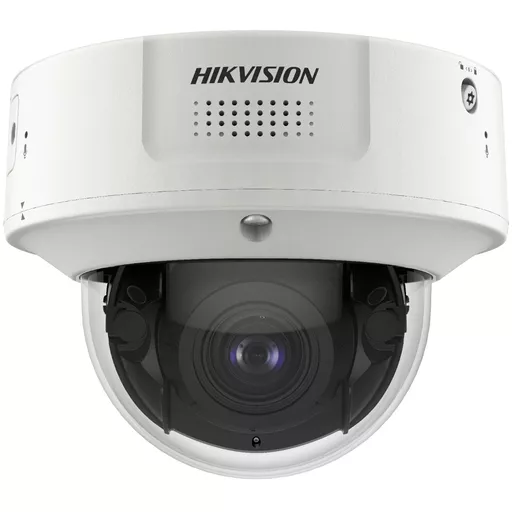

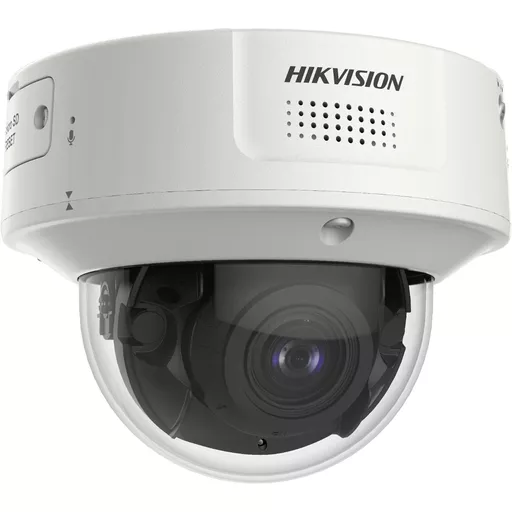

Hikvision IDS-2CD7146G0-IZS(2.8-12MM)(D) security camera Dome IP security camera Outdoor 2560 x 1440 pixels Ceiling/wall

SKU: iDS-2CD7146G0-IZS(2.8-12MM)(D) | Brand: Hikvision

Hikvision IDS-2CD7146G0-IZS(2.8-12MM)(D) security camera Dome IP security camera Outdoor 2560 x 1440 pixels Ceiling/wall

0 in stock

£429.61 ex. VAT

Figures are exclusive of VAT.

+ Description

Security requirements and application settings vary. That's why Hikvision designs and tailors network cameras to meet various needs, from general video monitoring to video content analytics with deep learning algorithms and beyond.

By rendering high-quality images across a range of lighting conditions, minimizing storage and bandwidth requirements and providing data-powered situational awareness, Hikvision network cameras can help users make smart decisions. Our network cameras are the ideal choice for hundreds of application scenarios.

DeepinView Series
Take security to the next level with top-tier imagery and AI capabilities

+ Tech Specs

Sensor type	CMOS
Ethernet LAN	Y
Wi-Fi	N
Connectivity technology	Wired
Type	IP security camera
Number of cameras	up to 1
Product colour	White
Night vision	Y
Bluetooth	N
Placement supported	outdoor
Mounting type	Ceiling/Wall

Attributes

Performance
Infrared (IR) cut-off filter	Yes
Number of languages	33
Languages support	Multi
Type	IP security camera
Connectivity technology	Wired
Placement supported	Outdoor
Wide Dynamic Range (WDR)	Yes
Day/night mode	Yes
Alarm input/output	Yes
Certification	FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 7); KC (KN 32: 2015, KN 35: 2015); UL (UL 62368-1); CB (IEC 62368-1:2014+A11); CE-LVD (EN 62368-1:2014/A11:2017); BIS (IS 13252(Part 1):2010/IEC 60950-1 : 2005); LOA (IEC/EN 60950-1); CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Dynamic range	140 dB
Design
IK code	IK10
Form factor	Dome
Product colour	White
Mounting type	Ceiling/wall
International Protection (IP) code	IP67
Housing material	Metal
Camera
Minimum illumination	0 lx
Tilt angle range	0 - 75°
Pan range	0 - 355°
Angle of rotation	355°
Camera shutter speed	1 - 1/100000 s
Camera pan control	Yes
Camera tilt control	Yes
Lens viewing angle, horizontal	107.4 - 39.8°
Lens viewing angle, vertical	56 - 22.4°
Lens viewing angle, diagonal	130.1 - 45.7°
Progressive scan	Yes
Image sensor
Sensor type	CMOS
Progressive scan	Yes
Optical sensor size	25.4 / 1.8 mm (1 / 1.8")
Number of sensors	1
Lens system
Number of lenses	1
Maximum aperture number	1.2
Auto focus	Yes
Detect distance	149 m
Observe distance	59.1 m
Recognize distance	29.8 m
Identify distance	14.9 m
Focus	Motorized/Manual
Focal length range	2.8 - 12 mm
Night vision
Night vision	Yes
Night vision distance	40 m
LED type	IR
Infra-red wavelength	850 nm
Video
Noise reduction	Yes
Image quality adjustment	Brightness, Contrast, Saturation, Sharpness
Privacy masking	Yes
Image stabilizer	Yes
Region of Interest (ROI) encoding	Yes
Highlight Compensation (HLC)	Yes
Bit rate control	Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Bit rate	32 Kbps - 8 Mbps
Back Light Compensation (BLC)	Yes
Noise reduction technology	3D noise reduction
Video compression formats	H.264, H.264+, H.265, H.265+, M-JPEG
Maximum resolution	2560 x 1440 pixels
Supported graphics resolutions	640 x 480 (VGA), 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2560 x 1440
Frame rate	60 fps
Video streaming	Yes
Total megapixels	4 MP
Audio
Voice codecs	G.711, G.722.1, G.726, MP2L2, PCM
Sample rates	8 - 48 kHz
Bit rate range	8 - 320 Kbit/s
Network
Bluetooth	No
Ethernet interface type	Gigabit Ethernet
Networking standards	IEEE 802.1x, IEEE 802.3at
Quality of Service (QoS) support	Yes
Number of users	32 user(s)
Ethernet LAN	Yes
Wi-Fi	No
Supported network protocols	TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, SRTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP,UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
Client interoperability	iVMS-4200, Hik-Connect
User access level	Administrator, Operator, User
Number of simultaneous live view channels	20 channels
Live view	Yes
Storage
Maximum memory card size	256 GB
Card reader integrated	Yes
Built-in HDD	No
Compatible memory cards	MicroSD (TransFlash), MicroSDHC, MicroSDXC
Ports & interfaces
RS-485 ports	1
Ethernet LAN (RJ-45) ports	1
Composite video out	1
Connectivity technology	Wired
Security
Privacy protection	Yes
Intelligent Video Surveillance (IVS) system features	Crossing line, Defocus, Face detection, Human detection, Intrusion, Region entrance detection, Region exiting detection, Scene change, Vehicle detection
Video motion detection	Yes
Security algorithms	EAP-LEAP, EAP-MD5, EAP-TLS
IP address filtering	Yes
HTTPS encryption	Yes
Password protection	Yes
Mirror	Yes
Heartbeat	Yes
Digital watermark	Yes
Automatic Network Replenishment (ANR)	Yes
Alarm input channels	2
Alarm output channels	2
Management features
Web-based management	Yes
Reset button	Yes
Behavior analysis	Intrusion detection, Line crossing detection, Object removal detection, Region entrance detection, Region exiting detection, Unattended baggage detection
Power
Power source type	DC, PoE
Power consumption (max)	11.43 W
Power consumption (Power over Ethernet (PoE))	11.92 W
DC output voltage	12, 24
DC output current	0.97 A
Certificates
Certification	FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 7); KC (KN 32: 2015, KN 35: 2015); UL (UL 62368-1); CB (IEC 62368-1:2014+A11); CE-LVD (EN 62368-1:2014/A11:2017); BIS (IS 13252(Part 1):2010/IEC 60950-1 : 2005); LOA (IEC/EN 60950-1); CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Operational conditions
Operating temperature (T-T)	-30 - 60 °C
Storage temperature (T-T)	-30 - 60 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Weight & dimensions
Height	114.1 mm
Diameter	14.4 cm
Weight	990 g
Package width	244 mm
Package height	173 mm
Package depth	174 mm
Package weight	1.43 kg
Packaging data
Package width	244 mm
Package height	173 mm
Package depth	174 mm
Package weight	1.43 kg
Packaging content
Number of cameras	1
Other features
Focus	Motorized/Manual
Video compression formats	H.264, H.264+, H.265, H.265+, M-JPEG
I/O ports	line In, line Out
