| Performance |
|---|
| Number of languages | 33 |
| Languages support | Bulgarian, Traditional Chinese, Czech, Danish, German, Dutch, English, Spanish, Estonian, Finnish, French, Greek, Hungarian, Italian, Japanese, Korean, LAT, Lithuanian, Norwegian, Polish, Portuguese, Romanian, Russian, SER, Slovak, Slovenian, Swedish, Thai, Turkish, Ukrainian, Vietnamese |

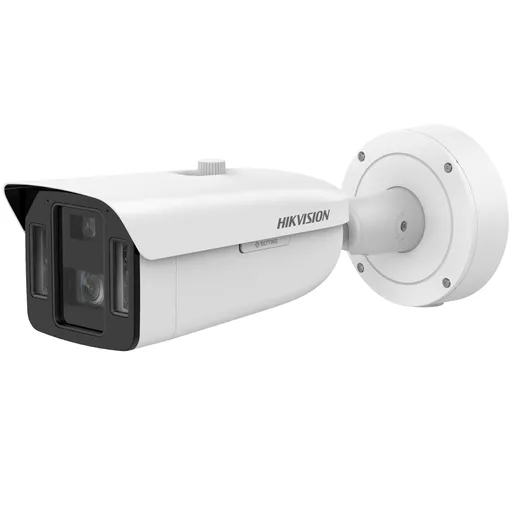

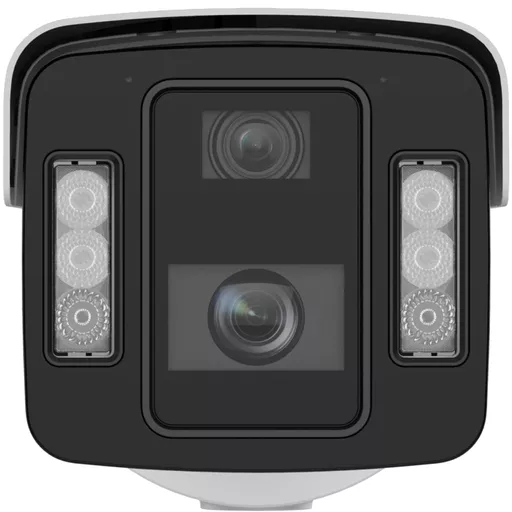

| Type | CCTV security camera |
| Connectivity technology | Wired |
| Placement supported | Indoor & outdoor |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Certification | FCC: 47 CFR Part 15, Subpart B, CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015 UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005, LOA: IEC/EN 60950-1 CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006 |
| Dynamic range | 140 dB |
| Picture overlay | 128 x 128 pixels |
| Picture overlay | 24 bit |
| Design |
|---|
| Form factor | Bullet |
| Product colour | Black, White |
| Mounting type | Wall |
| International Protection (IP) code | IP67 |
| Housing material | Aluminium |
| Camera |
|---|
| Minimum illumination | 0.0001 lx |
| Tilt angle range | 0 - 90° |
| Pan range | 0 - 355° |
| Angle of rotation | 360° |
| Camera shutter speed | 1 - 1/100000 s |
| Lens viewing angle, horizontal | 36 - 13.1° |
| Lens viewing angle, vertical | 20.4 - 7.4° |
| Lens viewing angle, diagonal | 41.8 - 14.9° |
| Image sensor |
|---|
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 1.2 mm (1 / 1.2") |
| Number of sensors | 2 |
| Lens system |
|---|
| Maximum aperture number | 1.6 |
| Recognize distance (wide) | 48.3 m |
| Recognize distance (tele) | 124.1 m |
| Observe distance (wide) | 95.8 m |
| Observe distance (tele) | 246.3 m |
| Identify distance (wide) | 24.1 m |
| Identify distance (tele) | 62.1 m |
| Detect distance (wide) | 241.4 m |
| Detect distance (tele) | 620.7 m |
| Minimum aperture number | 1 |
| Night vision |
|---|
| Night vision | Yes |
| Night vision distance | 120 m |
| LED type | IR |
| Infra-red wavelength | 850 nm |
| Video |
|---|
| Noise reduction | Yes |
| Privacy masking | Yes |
| Region of Interest (ROI) encoding | Yes |
| Highlight Compensation (HLC) | Yes |
| Bit rate control | Constant Bit Rate (CBR), Variable Bit Rate (VBR) |
| Back Light Compensation (BLC) | Yes |
| Noise reduction technology | 3D noise reduction |
| Video compression formats | H.264, H.264+, H.265, H.265+ |
| Maximum resolution | 3840 x 2160 pixels |
| Supported graphics resolutions | 640 x 480 (VGA), 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2560 x 1440, 3072 x 1728, 3840 x 2160 |
| Frame rate | 30 fps |
| Total megapixels | 8 MP |
| Audio |
|---|
| Audio formats supported | AAC-LC, G.711, G.722.1, G.726, MP2L2, MP3, PCM |
| Sample rates | 8 - 48 kHz |
| Network |
|---|
| Bluetooth | No |
| Number of users | 32 user(s) |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Supported network protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4/IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets |
| User access level | Administrator, Operator, User |
| Number of simultaneous live view channels | 20 channels |
| Live view | Yes |
| Storage |
|---|
| Maximum memory card size | 256 GB |
| Card reader integrated | Yes |
| Built-in HDD | No |
| Compatible memory cards | MicroSD (TransFlash), SDHC, SDXC |
| Ports & interfaces |
|---|
| BNC output ports | 1 |
| RS-485 ports | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Connectivity technology | Wired |
| Security |
|---|
| Video motion detection | Yes |
| Security algorithms | EAP-LEAP, EAP-MD5, EAP-TLS, HTTPS |
| IP address filtering | Yes |
| Active tampering alarm | Yes |
| Password protection | Yes |
| Mirror | Yes |
| Heartbeat | Yes |
| Digital watermark | Yes |
| Alarm input channels | 2 |
| Alarm output channels | 2 |
| Management features |
|---|
| Web browser | Yes |
| Reset button | Yes |
| Power |
|---|
| Power source type | DC, PoC |
| Power consumption (max) | 22.7 W |
| Power consumption (Power over Ethernet (PoE)) | 24.7 W |
| Power consumption | 50 mA |
| DC output voltage | 12, 24 |
| Certificates |
|---|
| Certification | FCC: 47 CFR Part 15, Subpart B, CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015 UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005, LOA: IEC/EN 60950-1 CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006 |
| Operational conditions |
|---|
| Operating temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Weight & dimensions |
|---|
| Length | 410.1 mm |
| Diameter | 14 cm |
| Weight | 2.2 kg |
| Package width | 462 mm |
| Package height | 195 mm |
| Package depth | 197 mm |
| Package weight | 3.38 kg |
| Packaging data |
|---|
| Package width | 462 mm |
| Package height | 195 mm |
| Package depth | 197 mm |
| Package weight | 3.38 kg |
| Packaging content |
|---|
| Number of cameras | 1 |
| Technical details |
|---|
| Doesn't contain | PVC |
| Other features |
|---|
| Video compression formats | H.264, H.264+, H.265, H.265+ |
| Doesn't contain | PVC |
