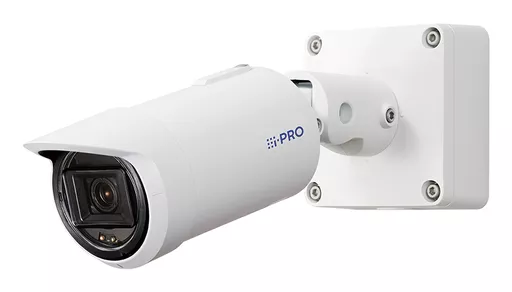

i-PRO WV-S15500-V3L security camera Bullet IP security camera Indoor & outdoor 3072 x 1728 pixels Ceiling/wall

SKU: WV-S15500-V3L  |   Brand: I-PRO

i-PRO WV-S15500-V3L security camera Bullet IP security camera Indoor & outdoor 3072 x 1728 pixels Ceiling/wall

0 in stock

£777.52 ex. VAT

Figures are exclusive of VAT.



S-series High resolution Network camera with AI engine

Equipped with an AI processor, it can run up to three AI analytics applications (AI apps) simultaneously, which significantly improve the detection rate of people and vehicles and can be used in a wide range of surveillance scenes. It realizes high-quality and clearer images even in low-light and wide-range shooting scenes.

Up to 3 AI apps can be operated at the same time from the wide variety.

Using AI processor which identifies object as people or vehicle, it will reduce false alarm compared to conventional model. As result, it can be used many industries.

High image quality / High compression

Our original smart coding technology compatible with H.264 and H.265 delivers high-resolution video at high image quality and low bit rate. Achieved useful images by combining with highly visible images by the intelligent auto (iA) function.

Easy setting and installation

- Easy Kitting Package enabling installers to configure cameras easily while keeping the unit in the box.
- The grommet on the outdoor model can reduce the time and effort required for installation.
- User-friendly GUI (setting while watching Live view, etc.) allows you to set comfortably.
- iCT tool allows you to set multiple cameras, apps, and recorders all at once, reducing the camera setting time.

High security standard

- Highest level of security. In addition to digital certificates issued by a third-party organization (GlobalSign), FIPS 140-2 Level 3 certified EdgeLock SE050F secure element (NXP Semiconductors) is embeded.

Type IP security camera
Mounting type Ceiling/Wall
Night vision Y
Connectivity technology Wired
Ethernet LAN Y
Placement supported indoor & outdoor
Sensor type CMOS
Number of cameras up to 1
Weight 2,400.00kg

Performance
Number of languages9
Languages supportEnglish, Spanish, Italian, Japanese, Portuguese, French, Russian, German
Fog proofYes
TypeIP security camera
Connectivity technologyWired
Placement supportedIndoor & outdoor
Alarm input/outputYes
CertificationUL (UL62368-1), c-UL (CSA C22.2 No.62368-1), CE, IEC62368-1, FCC (Part15 ClassA), ICES-003 ClassA, EN55032 ClassA, EN55035
Dynamic range132 dB
Design
IK codeIK10
Fog proofYes
Form factorBullet
Product colourBlack, White
Mounting typeCeiling/wall
Protection featuresVandal proof
International Protection (IP) codeIP66
Housing materialAluminium, Resin, Polycarbonate (PC)
Camera
Minimum illumination0.04 lx
Tilt angle range-100 - 100°
White balanceATW, AWC
Angle of rotation360°
Camera shutter speed1/30 - 1/10000 s
Lens viewing angle, horizontal34 - 106°
Lens viewing angle, vertical19 - 77°
Number of Privacy masking areas8
Image sensor
Sensor typeCMOS
Optical sensor size25.4 / 2.8 mm (1 / 2.8")
Number of sensors1
Lens system
Number of lenses1
Maximum aperture number2.5
Auto focusYes
Recognize distance (wide)9.3 m
Recognize distance (tele)40.2 m
Observe distance (wide)18.5 m
Observe distance (tele)80.4 m
Identify distance (wide)4.6 m
Identify distance (tele)20.1 m
Detect distance (wide)46.3 m
Detect distance (tele)201 m
Closest focusing distance0.3 m
Minimum aperture number1.3
FocusMotorized
Zoom capabilityYes
Optical zoom9.3x
Focal length range2.9 - 9 mm
Night vision
Night visionYes
Night vision distance55 m
LED typeIR
Video
Noise reductionYes
Text caption overlayYes
Highlight Compensation (HLC)Yes
Bit rate controlConstant Bit Rate (CBR)/Variable Bit Rate (VBR)
Back Light Compensation (BLC)Yes
Maximum resolution3072 x 1728 pixels
Video formats supportedH.264, H.265
Supported graphics resolutions1280 x 720 (HD 720), 1280 x 960, 320 x 240, 320 x 180, 800 x 600 (SVGA), 2560 x 1440, 400 x 300, 2560 x 1920, 1920 x 1080 (HD 1080), 640 x 360
Analog signal format systemNTSC, PAL
Frame rate30 fps
Total megapixels5 MP
Video intelligence analyticYes
Audio
Audio formats supportedAAC-LC, G.711, G.726
Audio detectionYes
Bit rate range16 - 128 Kbit/s
Network
Ethernet interface typeFast Ethernet
Networking standardsIEEE 802.3af
Number of users14 user(s)
Ethernet LANYes
Supported network protocolsIPv6 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, SMTP, DNS, NTP, SNMPv1/v2/v3, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ, SFTP, MQTT, LLDP IPv4 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS, NTP, SNMPv1/v2/v3, UPnP, IGMP, ICMP, ARP, IEEE 802.1X, DiffServ, SRTP, SFTP, MQTT, LLDP
Storage
Maximum memory card size512 GB
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash), MicroSDHC, MicroSDXC
Ports & interfaces
Microphone inYes
Ethernet LAN (RJ-45) ports1
Connectivity technologyWired
Security
Privacy protectionYes
Alert notification typeE-mail
Intelligent Video Surveillance (IVS) system featuresVehicle detection, Face detection, Scene change
Video motion detectionYes
Management features
Web browserYes
Power
Power source typeDC, PoE
Power consumption (Power over Ethernet (PoE))11.5 W
AC input voltage12-48 V
Power consumption (typical)12 W
Certificates
CertificationUL (UL62368-1), c-UL (CSA C22.2 No.62368-1), CE, IEC62368-1, FCC (Part15 ClassA), ICES-003 ClassA, EN55032 ClassA, EN55035
Operational conditions
Operating temperature (T-T)-40 - 60 °C
Operating relative humidity (H-H)10 - 100%
Weight & dimensions
Width133 mm
Depth383 mm
Height133 mm
Weight2.4 kg
Packaging content
Number of cameras1
Other features
FocusMotorized
