| Performance |
|---|
| Number of languages | 9 |
| Languages support | Simplified Chinese, German, English, Spanish, French, Italian, Japanese, Portuguese, Russian |

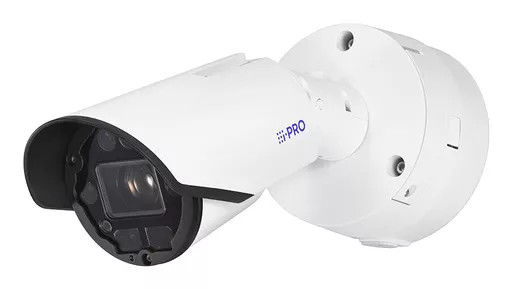

| Type | IP security camera |
| Connectivity technology | Wired |
| Placement supported | Outdoor |
| Day/night mode | Yes |
| Alarm input/output | Yes |
| Dynamic range | 132 dB |
| Design |
|---|
| IK code | IK10 |
| Form factor | Bullet |
| Product colour | White |
| Mounting type | Ceiling/wall |
| Protection features | Corrosion resistant |
| International Protection (IP) code | IP66, IP67 |
| Housing material | Aluminium, Polycarbonate (PC) |
| Camera |
|---|
| Minimum illumination | 0.04 lx |
| Tilt angle range | 0 - 100° |
| Pan range | 180 - 180° |
| White balance | ATW, AWC |
| Camera shutter speed | 1/10000 - 16/30 s |
| Image sensor |
|---|
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
| Lens system |
|---|
| Maximum aperture number | 3 |
| Recognize distance (wide) | 18.5 m |
| Recognize distance (tele) | 192.2 m |
| Observe distance (wide) | 36.9 m |
| Observe distance (tele) | 384.4 m |
| Identify distance (wide) | 9.2 m |
| Identify distance (tele) | 96.1 m |
| Detect distance (wide) | 92.4 m |
| Detect distance (tele) | 960.9 m |
| Minimum aperture number | 1.6 |
| Focus | Motorized |
| Zoom capability | Yes |
| Optical zoom | 10x |
| Digital zoom | 160x |
| Normal focusing range | 1.5 m |
| Focal length range | 4.7 - 47 mm |
| Night vision |
|---|
| Night vision | Yes |
| Night vision distance | 180 m |
| LED type | IR |
| Video |
|---|
| Noise reduction | Yes |
| Image quality adjustment | Automatic gain control (AGC) |
| Image stabilizer | Yes |
| Highlight Compensation (HLC) | Yes |
| Back Light Compensation (BLC) | Yes |
| Video compression formats | H.264, H.265 |
| Maximum resolution | 3072 x 1728 pixels |
| Frame rate | 30 fps |
| Total megapixels | 5 MP |
| Audio |
|---|
| Audio system full duplex | Yes |
| Audio formats supported | AAC-LC, G.711, G.726 |
| Audio detection | Yes |
| Network |
|---|
| Networking standards | IEEE 802.1x, IEEE 802.3at, IEEE 802.3bt |
| Number of users | 14 user(s) |
| Streaming method | Multicast, Unicast |
| Ethernet LAN | Yes |
| Supported network protocols | IPv6: TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, SMTP, DNS, NTP, SNMPv1/v2/v3, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ, FTP, SFTP, LLDP, MQTT IPv4: TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS, NTP, SNMPv1/v2/v3, UPnP, IGMP, ICMP, ARP, IEEE 802.1X, DiffServ, SRTP, FTP, SFTP, LLDP, MQTT |
| Storage |
|---|
| Maximum memory card size | 512 GB |
| Card reader integrated | Yes |
| Built-in HDD | No |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Ports & interfaces |
|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Connectivity technology | Wired |
| Security |
|---|
| Alert notification type | E-mail |
| Video motion detection | Yes |
| Security algorithms | FIPS 140-2 |
| Management features |
|---|
| Web browser | Yes |
| Behavior analysis | Scene change detection |
| Power |
|---|
| Power source type | PoE |
| Power consumption (typical) | 32.4 W |
| Power consumption | 600 mA |
| DC output voltage | 12, 54 |
| DC output current | 1.3 A |
| Operational conditions |
|---|
| Operating temperature (T-T) | -40 - 60 °C |
| Storage temperature (T-T) | -30 - 60 °C |
| Operating relative humidity (H-H) | 10 - 100% |
| System requirements |
|---|
| Mobile operating systems supported | Android, iOS |
| Weight & dimensions |
|---|
| Width | 168 mm |
| Depth | 168 mm |
| Height | 456 mm |
| Weight | 3.6 kg |
| Sustainability |
|---|
| Compliance certificates | Federal Communications Commission (FCC), National Defense Authorization Act (NDAA), UL, cUL |
| Packaging content |
|---|
| Number of cameras | 1 |
| Technical details |
|---|
| Compliance certificates | Federal Communications Commission (FCC), National Defense Authorization Act (NDAA), UL, cUL |
| Other features |
|---|
| Focus | Motorized |
| Video compression formats | H.264, H.265 |
